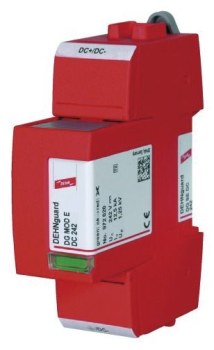

DEHN 972120 DG SE DC 242 ÜS-Ableiter Typ2 guard SE DC 1-pole Uc 242 VDC
|
150,57 EUR 152,36 EUR |
|||||||||||
|
( 179,18 EUR incl. VAT ) ≈ £126.03 | ≈ $165.48 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1884924 | ||||||||||
| Mfg Part No: | 972120 | ||||||||||
| UPC/EAN: | 4013364158528 | ||||||||||
| Weight: | 0.17 kg | ||||||||||
| Type: | DG SE DC 242 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 972120:
| General | |
| SPD classification as per EN 61643-11 / ... IEC 61643-11 | type 2 / class II |
| Energy coordination with terminal equipment (≤ 10 m) | type 2 + type 3 |
| Nominal voltage (d.c.) (UN) | 220 V |
| Max. continuous operating voltage DC (UC) | 242 V |
| Nominal discharge current (8/20 µs) (In) | 12.5 kA |
| Voltage protection level (UP) | ≤ 1.25 kV |
| Response time (tA) | ≤ 25 ns |
| Short-circuit withstand capability without backup fuse (d.c.) (ISCCR) | 300 A |
| Short-circuit withstand capability for max. mains-side overcurrent protection (d.c.) (ISCCR) | 25 kA |
| Max. mains-side overcurrent protection | 35 A gG |
| Temporary overvoltage (TOV) DC (UT) – characteristic | 320 V / 5 sec. – withstand |
| Temporary overvoltage (TOV) DC, 2x UC (UT) – characteristic | 484 V / 120 min. – safe failure |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Number of ports | 1 |
| Cross-sectional area (min.) | 1.5 mm2 solid / flexible |
| Cross-sectional area (max.) | 35 mm2 stranded / 25 mm2 flexible |
| For mounting on | 35 mm DINs rails acc. to EN 60715 |
| Enclosure material | thermoplastic, red, UL 94 V-0 |
| Place of installation | indoor installation |
| Degree of protection | IP20 |
| Capacity | 1.5 Standard DIN module, DIN 43880 |
| Extended technical data | |
| Max. continuous voltage (a.c.) (UC) | 255 V |
| DC and AC operation possible | |
Questions & answers
What is the delivery time of DEHN 972120 DG SE DC 242 ÜS-Ableiter Typ2 guard SE DC 1-pole Uc 242 VDC?
The article DEHN 972120 DG SE DC 242 ÜS-Ableiter Typ2 guard SE DC 1-pole Uc 242 VDC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 972120 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 972120 DG SE DC 242 ÜS-Ableiter Typ2 guard SE DC 1-pole Uc 242 VDC always at the best possible price. We can give you a discount of 2% on DEHN 972120 DG SE DC 242 ÜS-Ableiter Typ2 guard SE DC 1-pole Uc 242 VDC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 972120 DG SE DC 242 ÜS-Ableiter Typ2 guard SE DC 1-pole Uc 242 VDC we can offer you a price of 141,54 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
