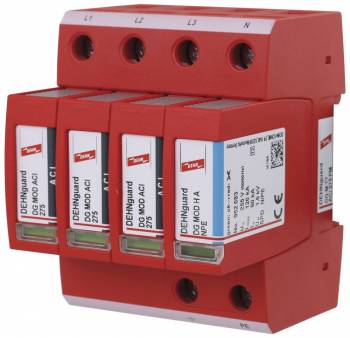

DEHN 952341 DG M TT ACI 275 FM surge protection device type 2 guard M 4p 275V ACI
|
629,85 EUR 637,26 EUR |
|||||||||||
|
( 749,52 EUR incl. VAT ) ≈ £527.18 | ≈ $692.21 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1003415 | ||||||||||
| Mfg Part No: | 952341 | ||||||||||
| UPC/EAN: | 4013364376632 | ||||||||||
| Weight: | 0.455 kg | ||||||||||
| Type: | DG M TT ACI 275 FM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 952341:
Applications
This surge arrester is intended for use in electrical installations in the low-voltage range, particularly in buildings with sensitive electrical and electronic equipment. It protects connected consumers against overvoltages caused by direct or indirect lightning strikes, network disturbances, or other electrical interference sources. Typical applications are near the main distribution board or at the input interfaces of the electrical supply, where the risk of overvoltages is highest.
Functions and Features in Detail
The DEHNguard M ACI 275 FM features an integrated ACI switch/spark gap combination, enabling fast and reliable diversion of overvoltages. The protection function is supported by Thermo-Dynamic-Control monitoring, which continuously monitors the status of the arrester. This technology ensures high device safety by triggering a safe disconnection in case of malfunction or overload of the arrester. The integrated monitoring thus prevents a defective arrester from continuing to operate in the network and potentially causing damage.
Technology Explained Simply
The arrester operates on the principle of overvoltage diversion, where overvoltages are diverted through a spark gap or varistor to reduce the voltage to a safe level for connected devices. The ACI technology (Automatic Switch/Spark Gap Combination) enables automatic response to overvoltages, with the switching function disconnecting the arrester from the network in case of overload or defect. The Thermo-Dynamic-Control monitors the thermal and electrical parameters of the arrester to enable early detection of malfunctions. This technology is particularly important in installations where continuous monitoring of the protection function is required.
Compatibility and Accessories
The DEHNguard M ACI 275 FM is designed for use in low-voltage installations and complies with standard EN 61643-11 for Type 2 surge protection devices. It is suitable for use in lightning protection concepts according to the zone model, particularly at transitions between zones 0B and 1. The modular design allows combination with additional protection modules, provided they are recommended by the manufacturer for the same assembly group.
Installation and Mounting
Installation is typically carried out in a distribution box or switchgear environment, with mounting on a suitable switchboard or mounting plate. Mounting must comply with electrical engineering regulations and the requirements of the relevant standards. It is essential to ensure that the arrester is installed at the correct location within the protection concept to guarantee optimal functionality.
Operational Advantages
The DEHNguard M ACI 275 FM offers high reliability through its integrated monitoring function, enabling continuous performance control. The modular design simplifies maintenance and replacement of protection modules without requiring the entire arrester to be replaced. Compliance with standard EN 61643-11 ensures standardized performance and safety. The protection function is suitable for use in industrial and commercial installations where high availability and safety of electrical systems are required. The Thermo-Dynamic-Control technology ensures that the arrester responds safely even under prolonged stress or in case of failure.
| General | |
| Norm | EN 61643-11 |
| Degree of protection | IP 20 |
| Number of poles | 4 p |
| Operating voltage | 275 V |
| Monitoring technology | Thermo-Dynamik-Control |
| Protection function | ACI switch / spark gap combination |
| Use in lightning protection system | interfaces 0B - 1 and higher |
| SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
| Energy coordination with terminal equipment (≤ 10 m) | type 2 + type 3 |
| Nominal voltage (a.c.) (UN) | 230 / 400 V (50 / 60 Hz) |
| Max. continuous operating voltage (a.c.) [L-N] (UC) | 275 V (50 / 60 Hz) |
| Max. continuous operating voltage (a.c.) [N-PE] (UC) | 255 V (50 / 60 Hz) |
| Nominal discharge current (8/20 µs) [L-N] (In) | 20 kA |
| Nominal discharge current (8/20 µs) [N-PE] (In) | 80 kA |
| Voltage protection level [L-N]/[N-PE] (UP) | ≤ 1.5 / ≤ 1.5 kV |
| Voltage protection level [L-N]/[N-PE] at 5 kA (UP) | ≤ 1,5 / ≤ 1,5 kV |
| Follow current extinguishing capability [N-PE] (Ifi) | 100 Aeff |
| Response time [L-N] (tA) | ≤ 100 ns |
| Response time [N-PE] (tA) | ≤ 100 ns |
| Additional external fuse necessary | not required |
| Short-circuit withstand capability (ISCCR) | 25 kArms |
| Temporary overvoltage (TOV) [L-N] (UT) – Characteristic | 440 V / 120 min. – withstand |
| Temporary overvoltage (TOV) [N-PE] (UT) - Characteristic | 1200 V / 200 ms – withstand |
| Leakage current | no leakage current |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Number of ports | 1 |
| Cross-sectional area (min.) | 1.5 mm2 solid / flexible |
| Cross-sectional area (max.) | 35 mm2 stranded / 25 mm2 flexible |
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Enclosure material | thermoplastic, red, UL 94 V-0 |
| Place of installation | indoor installation |
| Capacity | 4 Standard DIN module, DIN 43880 |
| Approvals | KEMA |
| Type of remote signalling contact | changeover contact |
| Switching capacity (a.c.) | 250 V / 0.5 A |
| Switching capacity (d.c.) | 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A |
| Cross-sectional area for remote signalling terminals | max. 1.5 mm2 solid / flexible |
