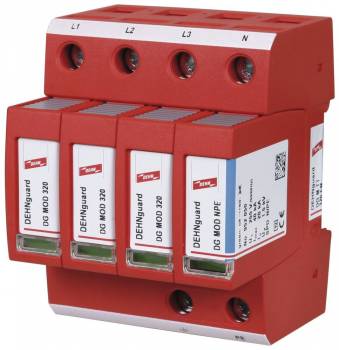

DEHN 952325 DG M TT 320 FM surge arrester Type 2 guard M 4p for TT- and TN-S-systems

Your rating:
Average rating
product review for DEHN 952325 DG M TT 320 FM surge arrester Type 2 guard M 4p for TT- and TN-S-systems
( 4.3 / 5 ) 10 ratings
DEHN 952325
This image may differ from the desired article.
DEHN 952325DEHN 952325DEHN 952325
490,01 EUR 495,79 EUR
( 583,11 EUR incl. VAT )
≈ £410.14  |  ≈ $538.52
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 952325 DG M TT 320 FM surge arrester Type 2 guard M 4p for TT- and TN-S-systems
Datasheet:file_download Download
Lieske Part No.:914345
Mfg Part No: 952325
UPC/EAN: 4013364126800
Weight:0.425 kg
Type:DG M TT 320 FM
Graduated prices net
From piecesPrice per pieces
4460,61 EUR
8431,21 EUR
12401,81 EUR
16372,41 EUR

Product information for DEHN 952325:

The DEHN surge arrester type DG M TT 320 FM is a multipole, modular protection device of the DEHNguard modular product family, designed for the protection of low-voltage consumer installations against transient overvoltages. The device complies with standards IEC 61643-11 and EN IEC 61643-11 and is classified as Type 2 + Type 3, making it suitable for protection at the main distribution as well as for direct protection at sensitive end devices. It is specifically designed for TT- and TN-S systems (3+1 configuration) and provides energy-coordinated protection to the end device over a maximum distance of 10 meters. The unit consists of a base part and plug-in protection modules that can be exchanged without tools, simplifying maintenance and inspection.

Applications

The arrester is intended for use in the lightning protection zone concept at interfaces 0B - 1 and higher. It protects electrical installations in indoor environments against overvoltages caused by direct or indirect lightning strikes, network disturbances, or switching operations. The application is in low-voltage installations with a nominal voltage of 230/400 V (50/60 Hz) and a maximum voltage of 320 V [L-N] or 255 V [N-PE].

Functions and Equipment in Detail

The device features surge arrester monitoring with Thermo-Dynamic-Control, ensuring high device safety. The operational and fault indication is provided via a green or red LED, allowing visual inspection of the operating status. In case of arrester failure, the circuit is opened (OCM), ensuring safe protection of downstream devices. A potential-free remote signaling contact (changeover) enables integration into monitoring systems; it has a switching capacity of 250 V / 0.5 A (AC) and is designed for connection cross-sections up to 1.5 mm², single- or multi-strand.

Technology Explained Simply

The arrester uses zinc oxide varistors and spark gaps to divert overvoltages. The nominal discharge current is 20 kA (8/20 µs), with a maximum discharge current of 40 kA. The protection level is ≤ 1.5 kV [L-N]/[N-PE] and ≤ 1.75 kV [L-PE], with the [L-N] protection level dropping to ≤ 1.2 kV at a test current of 5 kA. The response time is ≤ 25 ns [L-N] and ≤ 100 ns [N-PE], enabling rapid reaction to overvoltages. The TOV voltage [L-N] is 335 V for 5 seconds (withstand) and 440 V for 120 minutes (safe failure), while [N-PE] can withstand 1200 V for 200 ms. The short-circuit withstand is 25 kAeff with a maximum network-side overcurrent protection of 125 A gG.

Compatibility and Accessories

The arrester is designed for TT- and TN-S systems and can be used energy-coordinated within the Red/Line product family. Installation is on a 35 mm DIN rail according to EN 60715. Connection cross-sections range from 1.5 mm² (min.) to 35 mm² (max.) for multi-strand conductors and 25 mm² for fine-strand conductors. The insulation between main and auxiliary circuits is double, with the overvoltage category of the main circuit being III and that of the auxiliary circuit II.

Installation and Mounting

The unit is mounted indoors and has an installation width of 4 TE according to DIN 43880. The housing is made of red thermoplastic (UL 94 V-0) and is designed for use at temperatures from -40 °C to +80 °C. The protection rating is IP 20 (installed), providing protection against finger contact and solid foreign objects. Mounting is tool-free, with module locking systems enabling easy replacement of protection modules.

Operational Advantages

The combination of high discharge capacity, fast response time, and integrated monitoring with fault indication ensures reliable protection. The modular design allows flexible adaptation to different system configurations. Integration into monitoring systems via the remote signaling contact enables proactive fault detection. Certifications by DEKRA, UKCA, CE, and UL confirm compliance with European and international safety standards.

Technical data
Energy coordination with terminal equipment (≤ 10 m)type 2 + type 3
Nominal voltage (a.c.) (UN)230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (UC)320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (UC)255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In)20 kA
Max. discharge current (8/20 µs) (Imax)40 kA
Combination wave [L-N] (UOC)20 kV
Combination wave [N-PE] (UOC)6 kV
Voltage protection level [L-N]/[N-PE] (UP)≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (UP)≤ 1.2 / ≤ 1.5 kV
Protective conductor current (IPE)≤ 10 µA
Response time [L-N] (tA)≤ 25 ns
Response time [N-PE] (tA)≤ 100 ns
Max. mains-side overcurrent protection125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (ISCCR)25 kArms
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic335 V / 5 sec. – Festigkeit, 440 V / 120 min. – sicherer Ausfall
Temporary overvoltage (TOV) [N-PE] (UT) - Characteristic1200 V / 200 ms – withstand
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Number of ports1
Cross-sectional area (min.)1.5 mm2 solid / flexible
Cross-sectional area (max.)35 mm2 stranded / 25 mm2 flexible
For mounting on35 mm DIN rails acc. to EN 60715
Enclosure materialthermoplastic, red, UL 94 V-0
Place of installationindoor installation
Degree of protectionIP 20 (integrated)
Capacity4 Standard DIN module, DIN 43880
ApprovalsDEKRA
Type of remote signalling contactchangeover contact
Switching capacity (a.c.)250 V / 0.5 A
Switching capacity (d.c.)250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminalsmax. 1.5 mm2 solid / flexible


Product data sheet
Datasheet for DEHN 952325, EAN: 4013364126800
