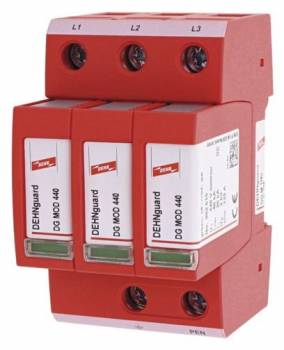

DEHN 952308 DGMTNC440FM surge arrester Type 2 guard M 3-pole for TN-C
|
370,97 EUR 375,31 EUR |
|||||||||||
|
( 441,45 EUR incl. VAT ) ≈ £310.50 | ≈ $407.70 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 926688 | ||||||||||
| Mfg Part No: | 952308 | ||||||||||
| UPC/EAN: | 4013364120716 | ||||||||||
| Weight: | 0.383 kg | ||||||||||
| Type: | DG M TNC 440 FM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 952308:
Applications
The surge arrester is intended for use in electrical installations in the low-voltage range, particularly in buildings supplied with an electrical system using a TN-C system. It is installed at the transitions between lightning protection zone 0B and zone 1, as well as higher zones, to protect power supply systems from transient voltage spikes caused by direct or indirect lightning strikes. The application typically occurs near distributors or at the entry interface of the electrical installation.
Functions and Equipment in Detail
The arrester provides high device safety through integrated arrester monitoring with Thermo-Dynamik-Control. This technology continuously monitors the condition of the arrester and responds to thermal changes that may indicate a malfunction or wear. This enables early detection of defects, increasing the reliability of the protective function. The design as a multipole arrester allows the protection of multiple conductors within a single device, ensuring a compact and efficient installation.
Technology Explained Simply
The DEHNguard M operates according to standard EN 61643-11, which defines surge protection devices of types 2 and 3. As a Type 2 device, it is designed for use at the interface between zone 0B and zone 1, where it can divert overvoltages with a nominal impulse voltage of 1.2/50 µs and an impulse voltage of 4 kV (for 10/350 µs). The designation TNC indicates use in a TN-C system, where the neutral conductor and protective conductor are combined. The modular design allows flexible adaptation to different installation configurations, with individual protection modules inserted into the base unit.
Compatibility and Accessories
The arrester is specifically designed for use in TN-C systems, meaning it is intended for installations with combined neutral and protective conductors. It is part of the DEHNguard M series and can be combined with other modules from this series to achieve different protection configurations. The use of additional protection modules requires no special tools or additional components, as the modules are directly inserted into the base unit.
Mounting and Installation
Installation typically takes place in a distribution box or at the entry interface of the electrical installation. Mounting is done by installing the base unit into a suitable switch cabinet, with protection modules inserted into the appropriate sockets as needed. Electrical connections are made at the designated terminals, ensuring correct assignment of conductors (e.g., L, N, PE). Mounting does not require special tools, but compliance with VDE and EN standards for electrical installation is mandatory.
Advantages in Operation
The DEHNguard M provides reliable protection through integrated monitoring technology, enabling early detection of defects. The modular design simplifies adaptation to different installation configurations and reduces installation time. Compliance with standard EN 61643-11 ensures conformity with applicable safety standards. Use within the lightning protection zone concept ensures a structured and effective protection strategy covering the entire electrical installation.
| General | |
| Norm | EN 61643-11 |
| Degree of protection | multipolar |
| System | TN-C |
| Monitoring technology | Thermo-Dynamik-Control |
| Application | lightning protection zones concept |
| Interface | 0B - 1 and higher |
| Standards | |
| Certification | UL |
| UL Standard | UL 1449 5th edition |
| UL File Number | E319777 |
| Technical data | |
| Energy coordination with terminal equipment (≤ 10 m) | type 2 + type 3 |
| Nominal voltage (a.c.) (UN) | 400 / 690 V (50 / 60 Hz) |
| Max. continuous operating voltage (AC) (UC) | 440 V (50 / 60 Hz) |
| Nominal discharge current (8/20 µs) (In) | 20 kA |
| Max. discharge current (8/20 µs) (Imax) | 40 kA |
| Voltage protection level (UP) | ≤ 2 kV |
| Voltage protection level at 5 kA (UP) | ≤ 1.7 kV |
| Response time (tA) | ≤ 25 ns |
| Max. mains-side overcurrent protection | 125 A gG |
| Short-circuit withstand capability for max. mains-side overcurrent protection (ISCCR) | 50 kArms |
| Temporary overvoltage (UT) – characteristic | 580 V / 5 sec. – Festigkeit, 765 V / 120 min. – sicherer Ausfall |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Number of ports | 1 |
| Cross-sectional area (min.) | 1.5 mm2 solid / flexible |
| Cross-sectional area (max.) | 35 mm2 stranded / 25 mm2 flexible |
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Enclosure material | thermoplastic, red, UL 94 V-0 |
| Place of installation | indoor installation |
| Degree of protection | IP 20 (integrated) |
| Capacity | 3 Standard DIN module, DIN 43880 |
| Approvals | DEKRA, UL |
| Type of remote signalling contact | changeover contact |
| Switching capacity (a.c.) | 250 V / 0.5 A |
| Switching capacity (d.c.) | 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A |
| Cross-sectional area for remote signalling terminals | max. 1.5 mm2 solid / flexible |
| Test values according to UL 1449 | |
| Rated Voltage (AC, 50/60 Hz) | 400 V |
| MCOV (AC, 50/60 Hz) [L-N]/[L-G]/[N-G] | 440 V |
| Voltage protection rating (VPR) | ≤ 1700 V |
| Nominal discharge current (8/20µs) ( In) | 20 kA |
| Maximum ambient temperature | 85 °C |
| UL 1449 edition | 5th edition |
| Type (SPD classification) | Type 4 component assembly |
