DEHN 952206 DG M TN 150 FM Type2 surge arrester guard M for 1ph TN systems

Your rating:
Average rating
product review for DEHN 952206 DG M TN 150 FM Type2 surge arrester guard M for 1ph TN systems
( 4.5 / 5 ) 2 ratings

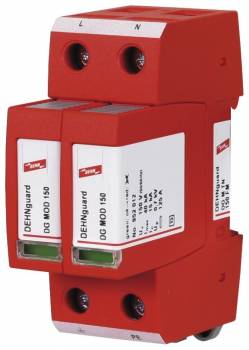

DEHN 952206
This image may differ from the desired article.
DEHN 952206DEHN 952206
245,38 EUR 248,29 EUR
( 292,00 EUR incl. VAT )
≈ £205.38  |  ≈ $269.67
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 952206 DG M TN 150 FM Type2 surge arrester guard M for 1ph TN systems
Datasheet:file_download Download
Lieske Part No.:1285141
Mfg Part No: 952206
UPC/EAN: 4013364123922
Weight:0.233 kg
Type:DG M TN 150 FM
Graduated prices net
From piecesPrice per pieces
5230,66 EUR
10215,93 EUR
15201,21 EUR
20186,49 EUR

Product information for DEHN 952206:

Multipole surge arrester DEHNguard M, type 2 according to EN 61643-11, consisting of a base part and plugged-in protection modules. High device safety due to arrester monitoring with thermo-dynamic control. For protecting low-voltage consumer systems against surges. For use in the lightning protection zone concept at the interfaces 0B - 1 and higher.

Standards
CertificationUL
UL StandardUL 1449 5th edition
UL File NumberE319777
Technical data
Energy coordination with terminal equipment (≤ 10 m)type 2 + type 3
Nominal voltage (a.c.) (UN)120 V (50 / 60 Hz)
Max. continuous operating voltage (AC) (UC)150 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In)15 kA
Max. discharge current (8/20 µs) (Imax)40 kA
Voltage protection level [L-PE]/[N-PE] (UP)≤ 0.8 / ≤ 0.8 kV
Voltage protection level [L-PE]/[N-PE] at 5 kA (UP)≤ 0.55 / ≤ 0.55 kV
Response time (tA)≤ 25 ns
Max. mains-side overcurrent protection125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (ISCCR)50 kArms
Temporary overvoltage (UT) – characteristic175 V / 5 sec. – Festigkeit, 230 V / 120 min. – sicherer Ausfall
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Number of ports1
Cross-sectional area (min.)1.5 mm2 solid / flexible
Cross-sectional area (max.)35 mm2 stranded / 25 mm2 flexible
For mounting on35 mm DIN rails acc. to EN 60715
Enclosure materialthermoplastic, red, UL 94 V-0
Place of installationindoor installation
Degree of protectionIP 20 (integrated)
Capacity2 Standard DIN module, DIN 43880
ApprovalsDEKRA, UL
Type of remote signalling contactchangeover contact
Switching capacity (a.c.)250 V / 0.5 A
Switching capacity (d.c.)250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminalsmax. 1.5 mm2 solid / flexible
Test values according to UL 1449
ModeL-N/L-G/N-G
Rated Voltage (AC, 50/60 Hz)120 V
MCOV (AC, 50/60 Hz) [L-N]/[L-G]/[N-G]150 V
MLV (AC, 50/60 Hz) [L-N]/[L-G]/[N-G]1410/1180/1180 V
Nominal discharge current (8/20µs) ( In)20 kA
Maximum ambient temperature+85 °C
AWG (conductors)4-14 Cu solid/stranded
AWG (remote indicator)14-22 Cu
UL 1449 edition5th edition
Type (SPD classification)Type 4 component assembly


Product data sheet
Datasheet for DEHN 952206, EAN: 4013364123922

Questions & answers

What is the delivery time of DEHN 952206 DG M TN 150 FM Type2 surge arrester guard M for 1ph TN systems?

The article DEHN 952206 DG M TN 150 FM Type2 surge arrester guard M for 1ph TN systems is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 952206 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 952206 DG M TN 150 FM Type2 surge arrester guard M for 1ph TN systems always at the best possible price. We can give you a discount of 2% on DEHN 952206 DG M TN 150 FM Type2 surge arrester guard M for 1ph TN systems if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 952206 DG M TN 150 FM Type2 surge arrester guard M for 1ph TN systems we can offer you a price of 230,66 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
