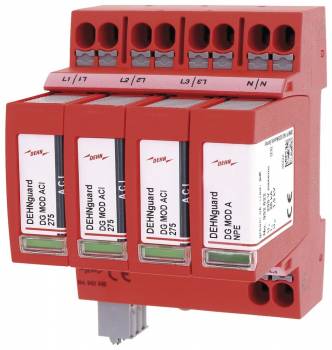

DEHN 942440 DG MP TNS ACI 275 FM surge arrester Type 2 guard MP
|
547,67 EUR 554,10 EUR |
|||||||||||
|
( 651,73 EUR incl. VAT ) ≈ £458.40 | ≈ $601.89 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2014696 | ||||||||||
| Mfg Part No: | 942440 | ||||||||||
| UPC/EAN: | 4013364477148 | ||||||||||
| Weight: | 0.377 kg | ||||||||||
| Type: | DG MP TNS ACI 275 FM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 942440:
| General | |
| SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
| Energy coordination with terminal equipment (≤ 10 m) | type 2 + type 3 |
| Nominal voltage (a.c.) (UN) | 230 / 400 V (50 / 60 Hz) |
| Max. continuous operating voltage (a.c.) [L-PE] (UC) | 275 V (50 / 60 Hz) |
| Max. continuous operating voltage (a.c.) [N-PE] (UC) | 255 V (50 / 60 Hz) |
| Nominal discharge current (8/20 µs) (In) | 20 kA |
| Nominal load current for “V-connection” (IL) | 40 A |
| Voltage protection level [L-PE]/[N-PE] (UP) | ≤ 1.5 / ≤ 1.5 kV |
| Voltage protection level [L-PE]/[N-PE] at 5 kA (UP) | ≤ 1.5 / ≤ 1.5 kV |
| Response time (tA) | ≤ 100 ns |
| Short-circuit withstand capability (ISCCR) | 25 kArms |
| Max. mains-side overcurrent protection with “V-connection” | 40 A gG |
| Temporary overvoltage (UT) – characteristic | 335 V / 5 sec. – withstand, 440 V / 120 min. – withstand |
| Leakage current | no leakage current |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Number of ports | 1 |
| Cross-sectional area (min.) | 1.5 mm2 solid, 6 mm2 flexible |
| Cross-sectional area (max.) | 10 mm2 solid / flexible |
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Enclosure material | thermoplastic, red, UL 94 V-0 |
| Place of installation | indoor installation |
| Degree of protection | IP 20 |
| Capacity | 4 Standard DIN module, DIN 43880 |
| Approvals | KEMA, VDE |
| Type of remote signalling contact | changeover contact |
| Switching capacity (a.c.) | 250 V / 0.5 A |
| Switching capacity (d.c.) | 250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A |
| Cross-sectional area for remote signalling terminals | max. 1.5 mm2 solid / flexible |
| Additional external fuse necessary | |
Questions & answers
What is the delivery time of DEHN 942440 DG MP TNS ACI 275 FM surge arrester Type 2 guard MP?
The article DEHN 942440 DG MP TNS ACI 275 FM surge arrester Type 2 guard MP is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 942440 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 942440 DG MP TNS ACI 275 FM surge arrester Type 2 guard MP always at the best possible price. We can give you a discount of 2% on DEHN 942440 DG MP TNS ACI 275 FM surge arrester Type 2 guard MP if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of DEHN 942440 DG MP TNS ACI 275 FM surge arrester Type 2 guard MP we can offer you a price of 514,81 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
