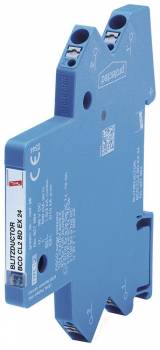

DEHN 927984 BCO CL2 BD EX 24 Compact surge arrester for 1 twin cable
|
127,30 EUR 128,80 EUR |
|||||||||||
|
( 151,49 EUR incl. VAT ) ≈ £106.55 | ≈ $139.90 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1780565 | ||||||||||
| Mfg Part No: | 927984 | ||||||||||
| UPC/EAN: | 4013364412002 | ||||||||||
| Weight: | 0.033 kg | ||||||||||
| Type: | BCO CL2 BD EX 24 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 927984:
| Extended technical data | |
| Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (Imax) | 20 kA |
| Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] | 10 kA (10x) |
| Voltage protection level line-PG at 1 kV/μs C3 after being subjected to Imax (UP) | ≤ 1000 V |
| Technical data | |
| SPD class | L |
| Impulse category | D1, C1, C2, C3, B2 |
| Nominal voltage (UN) | 24 V |
| Max. continuous operating voltage DC (UC) | 36 V |
| Max. continuous operating a.c. voltage (UC) | 25.4 V |
| Nominal current at 80°C (IL) | 0.5 A |
| D1 Total lightning impulse current (10/350 µs) (Iimp) | 3 kA |
| D1 Lightning impulse current (10/350 µs) per line (Iimp) | 1.5 kA |
| C2 Total nominal discharge current (8/20 µs) (In) | 10 kA |
| C2 Nominal discharge current (8/20 µs) per line (In) | 5 kA |
| Voltage protection level line-line for In C2 (UP) | ≤ 65 V |
| Voltage protection level line-PG for In C2 (UP) | ≤ 1100 V |
| Voltage protection level line-line at 1 kV/µs C3 (UP) | ≤ 48 V |
| Voltage protection level line-PG at 1 kV/µs C3 (Up) | ≤ 1000 V |
| Series resistance per line | 1 Ohm |
| Cut-off frequency line-line (fG) | 3.5 MHz |
| Capacitance line-line (C) | ≤ 2 nF |
| Capacitance line-PG (C) | ≤ 15 pF |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Degree of protection | IP 20 |
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Connection (input / output) | push-in / push-in |
| Cross-sectional area, solid | 0.2-2.5 mm2 |
| Cross-sectional area, flexible | 0.2-2.5 mm2 |
| Earthing via | 35 mm DIN rails acc. to EN 60715 |
| Enclosure material | polyamide PA 6.6 |
| Colour | blue |
| Test standards | IEC 61643-21 / EN 61643-21 |
| Approvals | ATEX, IECEx, CCC, SIL |
| SIL classification | up to SIL3 *) |
| ATEX approvals (1) | TÜV 19 ATEX 8476 X: II (1)2 G Ex ia [ia Ga] IIC T4 ... T6 Gb |
| ATEX approvals (2) | TÜV 19 ATEX 8476 X: II 2 G Ex ib IIC T4 ... T6 Gb |
| ATEX approvals (3) | TÜV 19 ATEX 8476 X:II (1) D [Ex ia Da] IIIC |
| IECEx approvals (1) ( ) | IECEx TUR 20.0025X: Ex ia [ia Ga] IIC T4 ... T6 Gb |
| IECEx approvals (2) | IECEx TUR 20.0025X: Ex ib IIC T4 ... T6 Gb |
| China Compulsory Certification | CCC No. 2021312304001130 (Ex ia, Ex ib) |
Questions & answers
What is the delivery time of DEHN 927984 BCO CL2 BD EX 24 Compact surge arrester for 1 twin cable?
The article DEHN 927984 BCO CL2 BD EX 24 Compact surge arrester for 1 twin cable is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 927984 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 927984 BCO CL2 BD EX 24 Compact surge arrester for 1 twin cable always at the best possible price. We can give you a discount of 2% on DEHN 927984 BCO CL2 BD EX 24 Compact surge arrester for 1 twin cable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 927984 BCO CL2 BD EX 24 Compact surge arrester for 1 twin cable we can offer you a price of 119,66 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
