DEHN 927944 BCO CL2 BD 24 Compact combination surge arrester for 1 twin cable

Your rating:
Average rating
product review for DEHN 927944 BCO CL2 BD 24 Compact combination surge arrester for 1 twin cable
( 4 / 5 ) 1 ratings
DEHN 927944
This image may differ from the desired article.

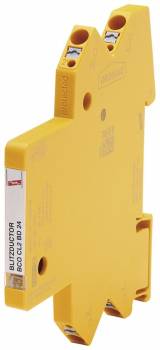

DEHN 927944DEHN 927944DEHN 927944
111,72 EUR 113,06 EUR
( 132,95 EUR incl. VAT )
≈ £93.51  |  ≈ $122.78
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 927944 BCO CL2 BD 24 Compact combination surge arrester for 1 twin cable
Datasheet:file_download Download
Lieske Part No.:1780567
Mfg Part No: 927944
UPC/EAN: 4013364411784
Weight:0.033 kg
Type:BCO CL2 BD 24
Graduated prices net
From piecesPrice per pieces
5105,02 EUR
1098,31 EUR
1591,61 EUR
2084,91 EUR

Product information for DEHN 927944:

The DEHN BCO CL2 BD 24 is a compact combination surge arrester of arrester class L, specifically developed for protection of a twin-core cable at earth potential-free symmetrical interfaces, as found in data bus systems and measurement, control and regulation circuits (MSR). The device features a width of 6 mm, making it particularly space-saving for installations in enclosures. The push-in connection technology enables fast and secure cable connection without tools, allowing both solid and fine-stranded cables with a cross-section of 0.2 to 2.5 mm² to be connected. Earthing is achieved via the 35 mm DIN rail according to EN 60715, which also serves as the mounting base.

Applications

The surge arrester is intended for use in industrial plants, automation systems, and in potentially explosive areas. It is certified according to ATEX approval TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc and IECEx approval IECEx TUR 20.0063X: Ex ec IIC T4 Gc, suitable for use in Zone 2 and higher. The SIL classification up to SIL3 makes it suitable for safety-critical applications in the field of functional safety. It is designed for use in the lightning protection zone concept at interfaces 0 A – 2 and higher.

Functions and Equipment in Detail

The BCO CL2 BD 24 features an integrated optical status indicator showing the operating state: green for functional, red for defective. This function allows for quick visual inspection of the arrester during operation. The integrated LifeCheck function monitors the condition of the arrester and supports system availability through failsafe behaviour. In case of failure, the protection circuit remains electrically closed to avoid interruption of the line.

Technology Explained Simply

The surge arrester protects against overvoltages by diverting surge currents. It is designed for a nominal voltage of 24 V, with the maximum continuous voltage at 36 V DC or 25.4 V AC. The maximum surge current rating is 20 kA (8/20 µs) per pole, with the nominal discharge current (C2) at 10 kA (total) or 5 kA per wire. The lightning surge current (D1) is 3 kA (total) or 1.5 kA per wire. The protection levels are ≤ 57 V between wires (wire-wire) and ≤ 600 V between wire and earthing (wire-PG) under C2 loading. The series impedance per wire is 1 Ohm, the cut-off frequency wire-wire is 5.8 MHz. The capacitance between wires is ≤ 1.5 nF, between wire and earthing ≤ 16 pF. These values ensure efficient protection without significant impairment of signal quality in data bus systems.

Compatibility and Accessories

The surge arrester is designed for use in systems with earth potential-free symmetrical interfaces, as found in industrial communication networks (e.g. Profibus, Modbus). It is compatible with other products in the BLITZDUCTORconnect family, particularly with accessories such as cross connectors, longitudinal connectors, parallel connectors, T-connectors, pipe clamps, and equipotential bonding rails. The use of these components enables flexible and modular installation in enclosures.

Mounting and Installation

Mounting is done on a 35 mm DIN rail according to EN 60715. The push-in connections allow for easy and quick cable connection. Earthing is via the DIN rail, ensuring a direct and reliable earth connection. The operating temperature range is between -40 °C and +80 °C, enabling use in a wide range of environments. The housing is made of polyamide PA 6.6 and is yellow in colour. The protection rating IP 20 protects against finger contact and solid foreign objects, but not against water or dust.

Operational Advantages

The BCO CL2 BD 24 offers a high level of protection in a compact design. The integrated status indicator and LifeCheck function increase operational safety and reduce maintenance requirements. The push-in technology speeds up installation and reduces error susceptibility. The approvals according to ATEX, IECEx, CCC, UL, CSA and SIL3 make it suitable for a wide range of applications, including potentially explosive environments and safety-critical systems. The test standards IEC 61643-21 and EN 61643-21 guarantee compliance with international standards for surge protection devices.

Extended technical data
Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (Imax)20 kA
Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]10 kA (10x)
Voltage protection level line-PG at 1 kV/μs C3 after being subjected to Imax (UP)≤ 600 V
Technical data
SPD classL
Impulse categoryD1, C1, C2, C3, B2
Nominal voltage (UN)24 V
Max. continuous operating voltage DC (UC)36 V
Max. continuous operating a.c. voltage (UC)25.4 V
Nominal current at 70 °C (IL)0.75 A
D1 Total lightning impulse current (10/350 µs) (Iimp)3 kA
D1 Lightning impulse current (10/350 µs) per line (Iimp)1.5 kA
C2 Total nominal discharge current (8/20 µs) (In)10 kA
C2 Nominal discharge current (8/20 µs) per line (In)5 kA
Voltage protection level line-line for In C2 (UP)≤ 57 V
Voltage protection level line-PG for In C2 (UP)≤ 600 V
Voltage protection level line-line for In C1 (UP)≤ 57 V
Voltage protection level line-PG for In C1 (UP)≤ 600 V
Voltage protection level line-line at 1 kV/µs C3 (UP)≤ 46 V
Voltage protection level line-PG at 1 kV/µs C3 (Up)≤ 600 V
Series resistance per line1 Ohm
Cut-off frequency line-line (fG)5.8 MHz
Capacitance line-line (C)≤ 1.5 nF
Capacitance line-PG (C)≤ 16 pF
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Degree of protectionIP 20
For mounting on35 mm DIN rails acc. to EN 60715
Connection (input / output)push-in / push-in
Cross-sectional area, solid0.2-2.5 mm2
Cross-sectional area, flexible0.2-2.5 mm2
Earthing via35 mm DIN rails acc. to EN 60715
Enclosure materialPolyamide PA 6.6
Colouryellow
Test standardsIEC 61643-21 / EN 61643-21
ApprovalsUL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classificationup to SIL3 *)
ATEX approvalsTÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvalsIECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory CertificationCCC no. 2021312304001192
Test values according to UL 497b
Type (SPD classification)BCO CL2 BD 24
Strike voltage Line to Ground 100 V/s min.40 V
Strike voltage Line to Ground 100 V/s max.44.2 V
Strike voltage Line to Line 100 V/s min.72 V
Strike voltage Line to Line 100 V/s max.108 V


Product data sheet
Datasheet for DEHN 927944, EAN: 4013364411784
