DEHN 927210 BCO ML2 B 180 lightning current diverter for 2 single conductors

Your rating:
Average rating
product review for DEHN 927210 BCO ML2 B 180 lightning current diverter for 2 single conductors
( 5 / 5 ) 2 ratings

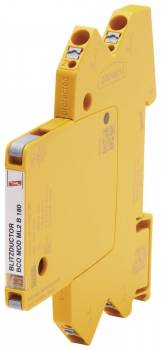

DEHN 927210
This image may differ from the desired article.
DEHN 927210DEHN 927210DEHN 927210
113,33 EUR 114,64 EUR
( 134,86 EUR incl. VAT )
≈ £94.86  |  ≈ $124.55
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 927210 BCO ML2 B 180 lightning current diverter for 2 single conductors
Datasheet:file_download Download
Lieske Part No.:1780558
Mfg Part No: 927210
UPC/EAN: 4013364405585
Weight:0.033 kg
Type:BCO ML2 B 180
Graduated prices net
From piecesPrice per pieces
5106,53 EUR
1099,73 EUR
1592,93 EUR
2086,13 EUR

Product information for DEHN 927210:

Space-saving, modular lightning current arrester with a width of 6 mm and push-in connection technology with status display for protecting 2 individual wires for lightning protection equipotential bonding as well as for indirect earthing of shielded cables. With signal separation for maintenance purposes.

Extended technical data
Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]10 kA (10x)
Voltage protection level line-PG at 1 kV/μs C3 after being subjected to Imax (UP)≤ 700 V
Standards
CertificationUL
UL StandardUL 497b
UL File NumberE156818
Technical data
SPD classA
Impulse categoryD1, C2, C3
Nominal voltage (UN)180 V
Max. continuous operating voltage DC (UC)180 V
Max. continuous operating a.c. voltage (UC)127 V
Nominal current (IN)1.2 A
D1 Total lightning impulse current (10/350 µs) (Iimp)3 kA
D1 Lightning impulse current (10/350 µs) per line (Iimp)1.5 kA
C2 Total nominal discharge current (8/20 µs) (In)10 kA
C2 Nominal discharge current (8/20 µs) per line (In)5 kA
Voltage protection level line-line for In C2 (UP)≤ 1100 V
Voltage protection level line-PG for In C2 (UP)≤ 800 V
Voltage protection level line-line at 1 kV/µs C3 (UP)≤ 950 V
Voltage protection level line-PG at 1 kV/µs C3 (Up)≤ 700 V
Series resistance per line0 Ohm
Cut-off frequency line-line at 100 ohms (fG)150 MHz
Capacitance line-line (C)≤ 10 pF
Capacitance line-PG (C)≤ 13 pF
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Degree of protectionIP 20
Connection (input / output)push-in / push-in
Cross-sectional area, solid0.2-2.5 mm2
Cross-sectional area, flexible0.2-2.5 mm2
Earthing via35 mm DIN rails acc. to EN 60715
Enclosure materialpolyamide PA 6.6
Colouryellow
Test standardsIEC 61643-21 / EN 61643-21
ApprovalsUL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classificationup to SIL3 *)
ATEX approvalsTÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvalsIECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory CertificationCCC no. 2021312304001192
Test values according to UL 497b
Type (SPD classification)BCO ML2 B 180
Strike voltage Line to Ground 100 V/s min.260 V
Strike voltage Line to Ground 100 V/s max.552 V
Strike voltage Line to Line 100 V/s min.184 V
Strike voltage Line to Line 100 V/s max.285 V


Product data sheet
Datasheet for DEHN 927210, EAN: 4013364405585

Questions & answers

What is the delivery time of DEHN 927210 BCO ML2 B 180 lightning current diverter for 2 single conductors?

The article DEHN 927210 BCO ML2 B 180 lightning current diverter for 2 single conductors is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 927210 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 927210 BCO ML2 B 180 lightning current diverter for 2 single conductors always at the best possible price. We can give you a discount of 2% on DEHN 927210 BCO ML2 B 180 lightning current diverter for 2 single conductors if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 927210 BCO ML2 B 180 lightning current diverter for 2 single conductors we can offer you a price of 106,53 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
