DEHN 925001 BT24 surge arrester BUStector for EIB/KNX systems

Your rating:
Average rating
product review for DEHN 925001 BT24 surge arrester BUStector for EIB/KNX systems
( 4.5 / 5 ) 11 ratings

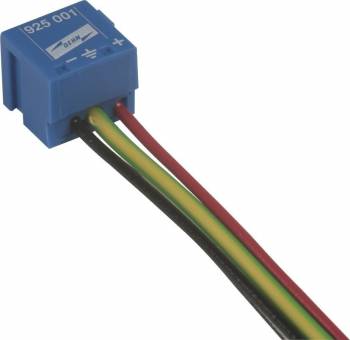

DEHN 925001
This image may differ from the desired article.
DEHN 925001DEHN 925001
108,20 EUR 109,49 EUR
( 128,76 EUR incl. VAT )
≈ £90.56  |  ≈ $118.91
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x DEHN 925001 BT24 surge arrester BUStector for EIB/KNX systems
Datasheet:file_download Download
Lieske Part No.:491001
Mfg Part No: 925001
UPC/EAN: 4013364047365
Weight:0.01 kg
Type:BT 24
Graduated prices net
From piecesPrice per pieces
5101,71 EUR
1095,22 EUR
1588,72 EUR
2082,23 EUR

Product information for DEHN 925001:

The surge arrester BT 24 from DEHN is a protection device specifically developed for KNX / EIB systems, designed in the form of a bus clamp. It protects bus lines against overvoltages caused by lightning strikes, electrical disturbances, or other transient voltage spikes. The device is matched to the device robustness of KNX / EIB systems to ensure reliable and damage-free operation of connected components. The EIBA approval confirms compliance with the requirements of the EIBA (European Installation Bus Association) and ensures suitability for use in professional installation environments.

Applications

The BT 24 is typically used in building automation installations, particularly in the cabling of KNX / EIB systems. It protects bus lines from transient overvoltages originating from external sources such as lightning strikes or internal sources such as switching operations. Installation is carried out directly into the bus line, with the bus clamp design enabling easy integration into existing installations.

Functions and Features in Detail

The surge arrester BT 24 operates as a protection device that diverts overvoltages exceeding a defined threshold to protect connected devices. The diversion is achieved via a nonlinear resistor, which is highly resistive under normal operating voltage and suddenly becomes low resistive during overvoltage to divert the energy. The bus clamp design allows direct mounting into the bus line, eliminating the need for additional connection components. The EIBA approval guarantees that the device meets the requirements of the EIBA technical guidelines, particularly regarding protective function and compatibility with KNX / EIB systems.

Technology Explained Simply

The BT 24 uses the principles of surge protection technology, where a protective component (in this case, a nonlinear resistor) diverts voltage spikes as soon as they exceed a certain threshold. The protective function is passive, meaning the device requires no external power supply and operates continuously. The bus clamp design is specifically conceived for integration into KNX / EIB systems, with electrical parameters such as impedance and protection voltage matched to system requirements. Diversion occurs via grounding, ensuring safe dissipation of overvoltage spikes.

Compatibility and Accessories

The BT 24 is specifically developed for KNX / EIB systems and is used in conjunction with these systems. It is installed directly into the bus line without requiring additional adapters or connectors.

Mounting and Installation

Installation is performed by direct insertion into the bus line, with the bus clamp design enabling quick and easy installation. No additional tools or aids are required, as the device is simply plugged into or connected to the line. Installation is typically carried out at a suitable point in the bus line, such as at the installation entrance or before sensitive devices.

Operational Advantages

The BT 24 provides reliable protection for KNX / EIB systems against overvoltages, thereby extending the service life of connected devices. The bus clamp design enables fast and simple installation without additional connection components. The EIBA approval guarantees compliance with the technical requirements of the EIBA, ensuring suitability for professional use. The device operates passively and requires no external power supply, making it maintenance-free and reliable in operation.

General
Product typeSurge arrester
Construction typebusbar terminal
System compatibilityKNX / EIB systems
ApprovalEIBA
SPD classB
Max. continuous operating voltage DC (UC)45 V
Nominal current (IN)6 A
D1 Lightning impulse current (10/350 µs) per line1 kA
C2 Nominal discharge current per line (In)5 kA
Cut-off frequency line-line (fG)70 MHz
ApprovalsEIBA-Zertifizierung Nr. Z 32/1399/95


Product data sheet
Datasheet for DEHN 925001, EAN: 4013364047365
