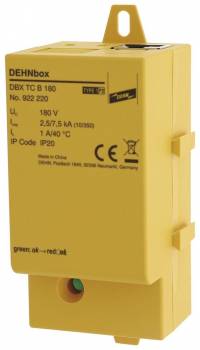

DEHN 922220 DBX TC B 180 lightning surge arrester box
|
156,56 EUR 158,40 EUR |
|||||||||||
|
( 186,31 EUR incl. VAT ) ≈ £131.04 | ≈ $172.06 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: 3 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1780872 | ||||||||||
| Mfg Part No: | 922220 | ||||||||||
| UPC/EAN: | 4013364433953 | ||||||||||
| Weight: | 0.064 kg | ||||||||||
| Type: | DBX TC B 180 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 922220:
| General | |
| SPD class | L |
| Impulse category | D1, C1, C2, C3, B2 |
| Nominal voltage (UN) | 180 V |
| Max. continuous operating voltage DC (UC) | 180 V |
| Max. continuous operating a.c. voltage (UC) | 127 V |
| Nominal current at 40°C (IL) | 1 A |
| D1 Total lightning impulse current (10/350 µs) (Iimp) | 7.5 kA |
| D1 Lightning impulse current (10/350 µs) per line (Iimp) | 2.5 kA |
| C2 Total nominal discharge current (8/20 µs) (In) | 20 kA |
| C2 Nominal discharge current (8/20 µs) per line (In) | 10 kA |
| Voltage protection level line-line for In C2 (Up) | ≤ 900 V |
| Voltage protection level line-PG for In C2 (UP) | ≤ 650 V |
| Voltage protection level line-line at 1 kV/µs C3 (Up) | ≤ 620 V |
| Voltage protection level line-PG at 1 kV/µs C3 (Up) | ≤ 550 V |
| Series resistance per line | 0 Ohm |
| Cut-off frequency line-line (100 ohms) (fG) | 425 MHz |
| Capacitance line-line (C) | ≤ 10 pF |
| Capacitance line-PG (C) | ≤ 20 pF |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Degree of protection | IP 20 |
| Cross-sectional area (solid) | 0.2-1.5 mm² |
| Cross-sectional area (fine stranded) | 0.25-1.5 mm² |
| Cross-sectional area of the earth terminal | 0.08-4 mm² |
| Enclosure material | polyamide PA 6.6 |
| Connection (input) | push-in |
| Connection (output) | push-in / RJ45 |
| Colour | yellow |
| Test standards | IEC 61643-21 / EN 61643-21 |
Questions & answers
What is the delivery time of DEHN 922220 DBX TC B 180 lightning surge arrester box?
The article DEHN 922220 DBX TC B 180 lightning surge arrester box is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 922220 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 922220 DBX TC B 180 lightning surge arrester box always at the best possible price. We can give you a discount of 2% on DEHN 922220 DBX TC B 180 lightning surge arrester box if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of DEHN 922220 DBX TC B 180 lightning surge arrester box we can offer you a price of 147,17 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
