DEHN 909396 DSH ZP B2 SG TT 255 combination surge arrester TNS system Type 1+2+3

Your rating:
Average rating
product review for DEHN 909396 DSH ZP B2 SG TT 255 combination surge arrester TNS system Type 1+2+3
( 4.4 / 5 ) 7 ratings

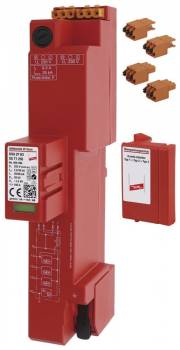

DEHN 909396
This image may differ from the desired article.
DEHN 909396DEHN 909396DEHN 909396
601,82 EUR 608,85 EUR
( 716,17 EUR incl. VAT )
≈ £503.72  |  ≈ $661.40
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x DEHN 909396 DSH ZP B2 SG TT 255 combination surge arrester TNS system Type 1+2+3
Datasheet:file_download Download
Lieske Part No.:1593916
Mfg Part No: 909396
UPC/EAN: 4013364409859
Weight:0.646 kg
Type:DSH ZP B2 SG TT 255
Graduated prices net
From piecesPrice per pieces
3552,17 EUR
6502,52 EUR
9452,87 EUR
12403,22 EUR

Product information for DEHN 909396:

The DEHN DSH ZP B2 SG TT 255 is a certified combination surge arrester of types 1+2+3, designed for use in the main power supply system of buildings in accordance with DIN VDE 0100-443. It is specifically designed for TT- and TN-S systems with 3+1 configuration and provides comprehensive surge protection. The arrester integrates an overcurrent-protected 230 V power supply for lines N and L, with replacement fuses for RfZ and APZ according to VDE-AR-N 4100 provided. Installation is tool-free via the Click+Power connection technology, specifically designed for the 40 mm busbar system, and is supplemented by a Push-in earthing terminal, enabling quick and secure earthing.

Applications
This arrester is intended for use in buildings, particularly in systems with overhead line feed, even without an external lightning protection system. It protects the electrical installation against transient overvoltages caused by lightning strikes or switching operations in the network. The application is in the main power supply system, where high protection performance is required to secure the entire electrical installation.

Functions and Equipment in Detail
The combination arrester integrates the protection functions of types 1, 2, and 3 into a single device, creating a compact and efficient solution for surge protection systems. The integrated 230 V power supply for N and L enables supply of additional functions such as RfZ or APZ, with the overcurrent-protected design ensuring safe operation. The replacement fuses are directly integrated into the device, simplifying replacement in case of failure.

Technology Explained Simply
The Click+Power connection technology enables tool-free installation onto the 40 mm busbar system, allowing quick installation without additional tools. The Push-in earthing terminal ensures a reliable earthing connection, which is essential for the proper operation of the arrester. The protection functions of types 1+2+3 cover direct lightning strikes (type 1), overvoltages from the network (type 2), and local switching overvoltages (type 3).

Compatibility and Accessories
The arrester is designed for TT- and TN-S systems and adapts to common switchgear configurations. The delivery includes one cover clip according to DIN VDE 0603-1 for each standard metering field, as well as 2 x socket and 2 x plug, for wiring the intelligent metering system according to VDE-AR 4100. These components enable integration into modern metering systems without requiring additional connection cables.

Installation and Mounting
Installation is tool-free onto the 40 mm busbar system using the Click+Power technology. Earthing is achieved via the Push-in terminal, enabling quick and secure installation. The integrated replacement fuses for RfZ and APZ simplify replacement in case of failure. Wiring of the intelligent metering system is done using the included sockets and plugs.

Operational Advantages
The DEHN DSH ZP B2 SG TT 255 offers compact, tool-free mounting and integrated functions for supplying additional systems. The combination of protection types 1+2+3 in a single device reduces space requirements and simplifies planning of the surge protection system. The integrated replacement fuses for RfZ and APZ, along with tool-free mounting, increase operational safety and reduce installation time. Use in the main power supply system ensures comprehensive protection for the entire electrical installation.

General
Protection typeType 1+2+3
System typeTT and TN-S systems
Circuit3+1 circuit
Power supply230 V V
Protection functionovercurrent protected
Mounting techniqueClick+Power connection technology
Grounding terminalPush-in
Busbar system40 mm
Replacement fusefor RfZ / APZ
NormDIN EN 61643-11
Applicationmain power supply system
Application areaBuildings with overhead line feed-in
Accessories included in deliverycover clip according to DIN VDE 0603-1, 2 x socket, 2 x plug
Wiringfor intelligent metering system according to VDE-AR 4100
SPD according to EN 61643-11 / IEC 61643-11type 1 + type 2 + type 3 / class I + class II + class III
Energy coordination with terminal equipment (≤ 10 m)type 1 + type 2 + type 3
Nominal voltage (a.c.) (UN)230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (AC) (UC)255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (Itotal)30 kA
Lightning impulse current (10/350 µs) [L-N] (Iimp)7.5 kA
Specific energy [L-N] (W/R)14.06 kJ/Ohm
Lightning impulse current (10/350 µs) [N-PE] (Iimp)30 kA
Specific energy [N-PE] (W/R)225 kJ/Ohm
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (In)20 / 80 kA
Voltage protection level [L-N] (UP)≤ 1.5 kV
Voltage protection level [N-PE] (UP)≤ 1.5 kV
Open-circuit voltage of the combination wave generator (UOC)20 kV
Max. mains-side overcurrent protection160 A gG
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (UT) - Characteristic1200 V / 200 ms – withstand
Operating temperature range (TU)-40 °C ... +80 °C
Operating state / fault indicationgreen / red
Number of ports1
Cross-sectional area (PEN, )16-25 mm2 stranded, fine-stranded
For mounting on40 mm busbar systems
Enclosure materialthermoplastic, red, UL 94 V-0
Place of installationindoor installation
Degree of protectionIP 30 (in combination with cover)
ApprovalsVDE
Power supply (for compartment for additional applications/termination point meter mounting board according to VDE-AR-N 4100) (UN)230 V
Rated current of the fuse link of the terminal device (class F) (In)6.3 A
Fuse linkSIBA GZ 6.3 x 32 mm F 500
Extended technical data
Voltage protection level [L-PE] (UP)≤ 1.6 kV


Product data sheet
Datasheet for DEHN 909396, EAN: 4013364409859
