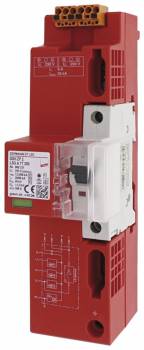

DEHN 909231 DSH ZP 2 LSG A TT 255 combination surge arrester Type1+2 shield ZP +LS
|
955,89 EUR 967,13 EUR |
|||||||||||
|
( 1.137,51 EUR incl. VAT ) ≈ £800.08 | ≈ $1,050.52 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1918426 | ||||||||||
| Mfg Part No: | 909231 | ||||||||||
| UPC/EAN: | 4013364449756 | ||||||||||
| Weight: | 0.873 kg | ||||||||||
| Type: | DSH ZP 2 LSG A TT 255 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 909231:
| General | |
| SPD according to EN 61643-11 / IEC 61643-11 | type 1 + type 2 + type 3 / class I + class II + class III |
| Energy coordination with terminal equipment (≤ 10 m) | type 1 + type 2 + type 3 |
| Nominal voltage (a.c.) (UN) | 230 / 400 V (50 / 60 Hz) |
| Max. continuous operating voltage (AC) (UC) | 255 V (50 / 60 Hz) |
| Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (Itotal) | 50 kA |
| Lightning impulse current (10/350 µs) [L-N] (Iimp) | 12.5 kA |
| Specific energy [L-N] (W/R) | 39.06 kJ/Ohm |
| Lightning impulse current (10/350 µs) [N-PE] (Iimp) | 50 kA |
| Specific energy [N-PE] (W/R) | 625 kJ/Ohm |
| Nominal discharge current (8/20 µs) [L-N]/[N-PE] (In) | 20 / 80 kA |
| Voltage protection level [L-N] (UP) | ≤ 1.5 kV |
| Voltage protection level [N-PE] (UP) | ≤ 1.5 kV |
| Open-circuit voltage of the combination wave generator (UOC) | 20 kV |
| Max. mains-side overcurrent protection | 160 A gG |
| Temporary overvoltage (TOV) [L-N] (UT) – Characteristic | 440 V / 120 min. – withstand |
| Temporary overvoltage (TOV) [N-PE] (UT) - Characteristic | 1200 V / 200 ms – withstand |
| Operating temperature range (TU) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Number of ports | 1 |
| Cross-sectional area (PEN, ) | 16-25 mm2 flexible / 16-35 mm2 stranded |
| For mounting on | 40 mm busbar systems |
| Enclosure material | thermoplastic, red, UL 94 V-0 |
| Place of installation | indoor installation |
| Degree of protection | IP 30 (in combination with cover) |
| Approvals | VDE |
| Power supply (for compartment for additional applications/termination point meter mounting board according to VDE-AR-N 4100) (UN) | 230 V |
| Extended technical data | |
| Voltage protection level [L-PE] (UP) | ≤ 1.6 kV |
Questions & answers
What is the delivery time of DEHN 909231 DSH ZP 2 LSG A TT 255 combination surge arrester Type1+2 shield ZP +LS?
The article DEHN 909231 DSH ZP 2 LSG A TT 255 combination surge arrester Type1+2 shield ZP +LS is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 909231 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 909231 DSH ZP 2 LSG A TT 255 combination surge arrester Type1+2 shield ZP +LS always at the best possible price. We can give you a discount of 2% on DEHN 909231 DSH ZP 2 LSG A TT 255 combination surge arrester Type1+2 shield ZP +LS if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of DEHN 909231 DSH ZP 2 LSG A TT 255 combination surge arrester Type1+2 shield ZP +LS we can offer you a price of 891,37 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
