DEHN 900904 DCU EMOB 1 32 surge arrester Type 1+2 cube

Your rating:
Average rating
product review for DEHN 900904 DCU EMOB 1 32 surge arrester Type 1+2 cube
( 4.5 / 5 ) 4 ratings
DEHN 900904
This image may differ from the desired article.
DEHN 900904DEHN 900904DEHN 900904DEHN 900904
1.012,51 EUR 1.024,45 EUR
( 1.204,89 EUR incl. VAT )
≈ £847.47  |  ≈ $1,112.75
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 900904 DCU EMOB 1 32 surge arrester Type 1+2 cube
Datasheet:file_download Download
Lieske Part No.:2121875
Mfg Part No: 900904
UPC/EAN: 4013364506213
Weight:2.549 kg
Type:DCU EMOB 1 32
Graduated prices net
From piecesPrice per pieces
2951,76 EUR
4891,01 EUR
6830,26 EUR
8769,51 EUR

Product information for DEHN 900904:

Housing connection box DCU EMOB 1 32, type 1 + type 2, with protection class IP 65, according to DIN EN IEC 61643-11 and 61439-2, for universal installation in front of the wallbox.

General
SPD according to EN 61643-11 / IEC 61643-11type 1 + type 2 / class I + class II
Tested toEN 61439-1 / ... IEC 61439-1, EN 61439-2 / ... IEC 61439-2
Energy coordination with terminal equipment (≤ 10 m)type 1 + type 2 + type 3
Nominal voltage (a.c.) (UN)230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (UC)255 V (50 / 60 Hz)
Nominal alternating current (IL)32 A
Max. power11 / 22 kW
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (Iimp)12.5 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)39.06 kJ/ohms / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) (In)25 / 100 kA
Voltage protection level [L-N] (UP)≤ 1.5 kV
Voltage protection level [N-PE] (UP)≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (Ifi)25 kArms / 100 Arms
Follow current limitation / Selectivityno tripping of a 32 A gG fuse up to 25 kArms (prosp.)
Response time (tA)≤ 100 ns
Max. backup fuse (L) up to IK ≤ 25 kArms40 A gG
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (UT) - Characteristic1200 V / 200 ms – withstand
Operating temperature range [parallel]/[series] (TU)-40°C...+80°C
Operating state / fault indicationgreen / red
Number of ports1
Cross-sectional area (L1, L2, L3, N, PE, ) (min.)0,5 mm2
Cross-sectional area (L1, L2, L3, N, PE, ) (max.)16 mm2
Type of remote signalling contactchangeover contact
Switching capacity (a.c.)250 V / 0.5 A
Switching capacity (d.c.)250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminalsmax. 1.5 mm2 solid / flexible
Place of installationInstallation in protected outdoor areas
Degree of protectionIP 65
Typewith pressure compensating element
CoverTransparent cover with product label
Enclosure colourgrey
InputÖlflex 5x 6 mm², length 1.5 m
OutputSystem-side connection with M25 screw connection

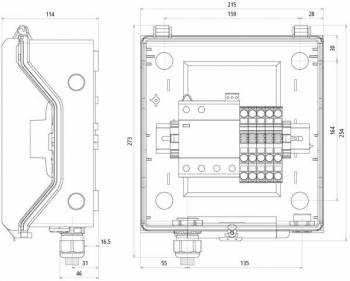

Enclosure dimensions (W x H x D)217 x 253 x 115 mm


Product data sheet
Datasheet for DEHN 900904, EAN: 4013364506213

Questions & answers

What is the delivery time of DEHN 900904 DCU EMOB 1 32 surge arrester Type 1+2 cube?

The article DEHN 900904 DCU EMOB 1 32 surge arrester Type 1+2 cube is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 900904 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 900904 DCU EMOB 1 32 surge arrester Type 1+2 cube always at the best possible price. We can give you a discount of 2% on DEHN 900904 DCU EMOB 1 32 surge arrester Type 1+2 cube if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of DEHN 900904 DCU EMOB 1 32 surge arrester Type 1+2 cube we can offer you a price of 951,76 EUR per piece. The more you buy, the cheaper the article will be.
