DEHN 900385 DVA EMOB 3P 255 FM combination surge arrester 230/400 V 50/60 Hz

Your rating:
Average rating
product review for DEHN 900385 DVA EMOB 3P 255 FM combination surge arrester 230/400 V 50/60 Hz
( 4.5 / 5 ) 2 ratings

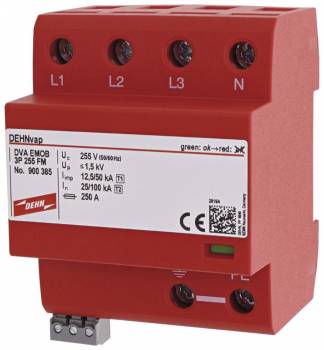

DEHN 900385
This image may differ from the desired article.
DEHN 900385DEHN 900385DEHN 900385
901,64 EUR 912,29 EUR
( 1.072,95 EUR incl. VAT )
≈ £754.67  |  ≈ $990.90
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 900385 DVA EMOB 3P 255 FM combination surge arrester 230/400 V 50/60 Hz
Datasheet:file_download Download
Lieske Part No.:1592326
Mfg Part No: 900385
UPC/EAN: 4013364422186
Weight:0.5 kg
Type:DVA EMOB 3P 255 FM
Graduated prices net
From piecesPrice per pieces
3847,54 EUR
6793,44 EUR
9739,34 EUR
12685,25 EUR

Product information for DEHN 900385:

DVA EMOB 3P 255 FM (900 385)
¦ Universally applicable combination arrester, especially for use in power supply systems for charging infrastructure
¦ Based on spark gap technology with only 1 HP / pole enables compact and space-saving installation
¦ Energy-coordinated protective effect for the type 1 + type 2 end device + Type 3
¦ Residual energy for S20K275 terminal device varistor < 0.5 J
¦ Maximum back-up fuse up to 250 A gG
¦ Insulation measurement when connected up to 500 V DC possible

General
SPD according to EN 61643-11 / IEC 61643-11type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)type 1 + type 2 + type 3
Nominal voltage (a.c.) (UN)230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (UC)255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (Iimp)12.5 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)39.06 kJ/ohms / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) (In)25 / 100 kA
Voltage protection level [L-N]/[N-PE] (UP)≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (Ifi)25 kArms / 100 Arms
Follow current limitation / SelectivityNo tripping of a 35 A gG fuse up to 25 kArms (prosp.)
Response time (tA)≤ 100 ns
Max. backup fuse (L) up to IK ≤ 25 kArms250 A gG
Temporary overvoltage (TOV) [L-N] (UT) – Characteristic440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (UT) - Characteristic1200 V / 200 ms – withstand
Operating temperature range [parallel]/[series] (TU)-40°C...+80°C
Operating state / fault indicationgreen / red
Number of ports1
Cross-sectional area (L1, L2, L3, N, PE, ) (min.)1.5 mm2 solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, ) (max.)35 mm2 stranded / 25 mm2 flexible
For mounting on35 mm DIN rails acc. to EN 60715
Enclosure materialthermoplastic, red, UL 94 V-0
Place of installationindoor installation
Degree of protectionIP 20
Capacity4 Standard DIN module, DIN 43880
ApprovalsKEMA, UL
Type of remote signalling contactchangeover contact
Switching capacity (a.c.)250 V / 0.5 A
Switching capacity (d.c.)250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminalsmax. 1.5 mm2 solid / flexible
Insulation measurement possible when connectedup to 1000 V DC
Extended technical data
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 hwithstand
Residual energy with a S20K275< 0.5 J
characteristic at U = 320 V and ISCCR = 13.5 kA with fuse 63 A gGwithstand
Voltage protection level [L-PE] (UP)≤ 2.0 kV


Product data sheet
Datasheet for DEHN 900385, EAN: 4013364422186

Questions & answers

What is the delivery time of DEHN 900385 DVA EMOB 3P 255 FM combination surge arrester 230/400 V 50/60 Hz?

The article DEHN 900385 DVA EMOB 3P 255 FM combination surge arrester 230/400 V 50/60 Hz is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 900385 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 900385 DVA EMOB 3P 255 FM combination surge arrester 230/400 V 50/60 Hz always at the best possible price. We can give you a discount of 2% on DEHN 900385 DVA EMOB 3P 255 FM combination surge arrester 230/400 V 50/60 Hz if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of DEHN 900385 DVA EMOB 3P 255 FM combination surge arrester 230/400 V 50/60 Hz we can offer you a price of 847,54 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
