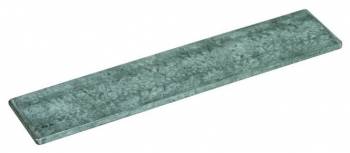

DEHN 852335 BA30X3.5STTZNR25M strip 30x3.5 mm St/tZn Z500 ring length fixed: 25 m

Your rating:
Average rating
product review for DEHN 852335 BA30X3.5STTZNR25M strip 30x3.5 mm St/tZn Z500 ring length fixed: 25 m
( 4.6 / 5 ) 12 ratings
DEHN 852335
This image may differ from the desired article.
DEHN 852335DEHN 852335
410,88 EUR
( 488,95 EUR incl. VAT )
≈ £343.91  |  ≈ $451.56
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 25 meters
1x DEHN 852335 BA30X3.5STTZNR25M strip 30x3.5 mm St/tZn Z500 ring length fixed: 25 m
Lieske Part No.:980041
Mfg Part No: 852335
UPC/EAN: 4013364031067
Weight:0.84 kg
Type:BA 30X3.5 STTZN R25M
Graduated prices net
From piecesPrice per meters
4352,33 EUR
8293,78 EUR
12235,23 EUR
16176,68 EUR

Product information for DEHN 852335:

This product is a steel strip from the brand DEHN, type BA 30X3.5 STTZN R25M, specifically designed for use in lightning protection and earthing systems. It is a metallic strip with a defined cross-sectional geometry, serving as a conductor system in electrical protection installations. The strip is supplied in a fixed coil length of 25 meters and is suitable for use in both outdoor and indoor environments, particularly in installations that must comply with the requirements of standard DIN EN 62561-2 (VDE 0185-561-2).

Lightning protection and earthing systems form the foundation for the safety of electrical installations and buildings. The steel strip functions as a conductor, safely diverting electrical currents, especially during lightning strike events. The use of steel strip in such systems is common, as it offers high mechanical strength and electrical conductivity. The specific design of this product with a zinc coating also provides improved corrosion resistance, increasing the service life and reliability of the system.

Functions and equipment in detail

The steel strip has a cross-sectional dimension of 30 mm width and 3.5 mm height. These dimensions are designed for integration into standardized earthing and lightning protection systems. The zinc coating has an average thickness of 70 micrometers, corresponding to a mass of approximately 500 grams per square meter. This coating protects the steel strip from oxidative degradation, especially in moist or aggressive environments. The coating is manufactured in accordance with the standard DIN EN 62561-2 (VDE 0185-561-2), which defines requirements for material quality and performance of earthing and lightning protection materials.

Technology explained simply

The steel strip is made of steel, a metallic material with high electrical conductivity and mechanical strength. The zinc coating serves as a protective layer against corrosion. When in contact with moist air or other oxidizing influences, zinc forms a protective oxide layer that prevents rust formation on the underlying steel material. The standard DIN EN 62561-2 specifies that materials for lightning protection and earthing systems must possess certain mechanical, electrical, and chemical properties to ensure the safety of the installation. The strip meets these requirements and is therefore approved for use in such systems.

Compatibility and accessories

The steel strip is designed for use in earthing and lightning protection systems executed in accordance with DIN EN 62561-2. It can be combined with other components such as earthing electrodes, connection elements, or transition clamps to create a complete protection system. Connections are typically made using mechanical clamps or welding methods, with specific techniques depending on the installation and local regulations.

Installation and mounting

Installation is typically carried out by specialists in the field of electrical and lightning protection technology. The strip is laid along the designated route, with fastening to suitable supports or directly to the substrate. Connections to other earthing elements are made using appropriate clamps or welding techniques. The coil length of 25 meters allows for efficient handling and installation without additional cutting or joining operations during mounting.

Advantages in operation

The steel strip offers high mechanical stability and electrical conductivity, which is crucial for the reliability of lightning protection and earthing systems. The zinc coating increases the service life of the material, especially in moist or corrosive environments. Compliance with the standard DIN EN 62561-2 ensures that the product meets the required safety standards. The fixed coil length of 25 meters simplifies planning and installation, as no additional connections are required during installation.

The item price shown refers to 25 meters DEHN 852335
General
Ring length25 m
NormDIN EN 62561-2 (VDE 0185-561-2)
Application rangeLightning protection and earthing systems


Questions & answers

What is the delivery time of DEHN 852335 BA30X3.5STTZNR25M strip 30x3.5 mm St/tZn Z500 ring length fixed: 25 m?

The article DEHN 852335 BA30X3.5STTZNR25M strip 30x3.5 mm St/tZn Z500 ring length fixed: 25 m is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 852335 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 852335 BA30X3.5STTZNR25M strip 30x3.5 mm St/tZn Z500 ring length fixed: 25 m always at the best possible price. We can give you a discount of 2% on DEHN 852335 BA30X3.5STTZNR25M strip 30x3.5 mm St/tZn Z500 ring length fixed: 25 m if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 meters of DEHN 852335 BA30X3.5STTZNR25M strip 30x3.5 mm St/tZn Z500 ring length fixed: 25 m we can offer you a price of 352,33 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

DEHN 852335 BA30X3.5STTZNR25M strip 30x3.5 mm St/tZn Z500 ring length fixed: 25 m is offered by us in a sales unit of 25 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
