DEHN 830008 RD8CUF20WEIR100M Rd.-wire 8 mm Cu ring length fixed: 100 m

Your rating:
Average rating
product review for DEHN 830008 RD8CUF20WEIR100M Rd.-wire 8 mm Cu ring length fixed: 100 m
( 4.4 / 5 ) 9 ratings

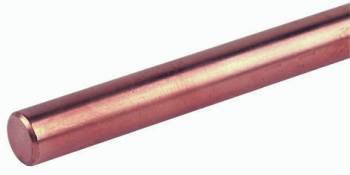

DEHN 830008
This image may differ from the desired article.
DEHN 830008DEHN 830008
4.294,00 EUR
( 5.109,86 EUR incl. VAT )
≈ £3,594.08  |  ≈ $4,719.11
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 100 meters
1x DEHN 830008 RD8CUF20WEIR100M Rd.-wire 8 mm Cu ring length fixed: 100 m
Datasheet:file_download Download
Lieske Part No.:933286
Mfg Part No: 830008
UPC/EAN: 4013364018785
Weight:100 kg
Type:RD 8 CU F20 WEI R100M
Graduated prices net
From piecesPrice per meters
24.036,36 EUR
43.778,72 EUR
63.521,08 EUR
83.263,44 EUR

Product information for DEHN 830008:

The article RD 8 CU F20 WEI R100M from DEHN is a copper wire for use in lightning protection, earthing systems, and equipotential bonding. It complies with the standard DIN EN 62561-2 (VDE 0185-561-2) and is manufactured as soft material (F20), which enables good formability and easy installation. The wire has a diameter of 8 mm and a cross-section of 50 mm², making it suitable for applications with high electrical loads. The delivery length is 100 meters, with an allowed length tolerance of ±5 %.

Applications
This round wire is specifically designed for use in lightning protection systems, earthing systems, and equipotential bonding systems. It serves as a conductor for diverting lightning currents, fault currents, or for connecting metallic parts to minimize voltage differences. The standard DIN EN 62561-2 defines the requirements for conductors and connection elements for such systems, making the wire suitable for use in safety-critical installations.

Functions and Equipment in Detail
The wire is made of copper (Cu) and has a specific conductivity of at least 52.63 m / Ohm mm², corresponding to a specific resistance value of at most 0.019 Ohm mm² / m. These values ensure high electrical conductivity and minimize losses during current diversion. The soft material execution (F20) allows for easy bending and processing, which is advantageous during installation in complex geometries.

Technology Explained Simply
The specific conductance describes the material's ability to conduct electric current. A value of ≥ 52.63 m / Ohm mm² corresponds to a high conductance, typical for copper, ensuring efficient current diversion. The specific resistance of ≤ 0.019 Ohm mm² / m measures how much the wire impedes current flow — the lower the value, the better the conductivity. The short-circuit current of 9.7 kA (at 1 second and maximum 300 °C) indicates that the wire can safely transmit short-term high current loads, such as those occurring during lightning strikes or short circuits, without melting or breaking.

Compatibility and Accessories
The wire is compatible with other products from DEHN's round wire product family, particularly with cross connectors, longitudinal connectors, parallel connectors, T-connectors, as well as pipe clamps and equipotential bonding rails. These components enable safe and standard-compliant connection and branching of the wire within the system. The use of accessory parts is required to ensure a stable and durable connection.

Installation and Mounting
Installation is typically performed by bending, connecting with special connectors, or using screw or crimp connections. Due to its soft execution (F20), the wire can be easily shaped, which facilitates installation at various locations, such as on buildings, masts, or in earthing grids. The length of 100 meters allows efficient supply of larger areas without frequent connections, thereby reducing the number of connection points and potential sources of error.

Operational Advantages
The use of the copper wire RD 8 CU F20 WEI R100M provides high reliability in safety-critical systems. The high conductivity and high short-circuit current value ensure safe current diversion, while the soft execution simplifies installation. Conformity with DIN EN 62561-2 guarantees that the wire meets the requirements for lightning protection and earthing systems, which is important for the approval and authorization of installations. Delivery in coil form with a length of 100 m enables efficient and economical processing in larger projects.

The item price shown refers to 100 meters DEHN 830008
General
Diameter Ø conductor8 mm
Cross section50 mm²
MaterialCu
Propertiessoft F20
StandardEN 62561-2
Specific conductance≥ 52.63 m / Ohm mm²
Specific resistance≤ 0.019 Ohm mm² / m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)9.7 kA
Length tolerance+/- 5%


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for DEHN 830008, EAN: 4013364018785

Questions & answers

What is the delivery time of DEHN 830008 RD8CUF20WEIR100M Rd.-wire 8 mm Cu ring length fixed: 100 m?

The article DEHN 830008 RD8CUF20WEIR100M Rd.-wire 8 mm Cu ring length fixed: 100 m is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 830008 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 830008 RD8CUF20WEIR100M Rd.-wire 8 mm Cu ring length fixed: 100 m always at the best possible price. We can give you a discount of 2% on DEHN 830008 RD8CUF20WEIR100M Rd.-wire 8 mm Cu ring length fixed: 100 m if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 meters of DEHN 830008 RD8CUF20WEIR100M Rd.-wire 8 mm Cu ring length fixed: 100 m we can offer you a price of 4.036,36 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

DEHN 830008 RD8CUF20WEIR100M Rd.-wire 8 mm Cu ring length fixed: 100 m is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
