DEHN 785637 SEREG3TE lock element for series-mounted devices H:45 mm 3TE

Your rating:
Average rating
product review for DEHN 785637 SEREG3TE lock element for series-mounted devices H:45 mm 3TE
( 4.4 / 5 ) 14 ratings

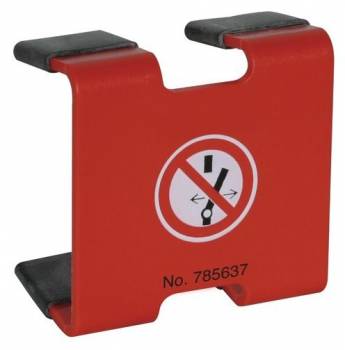

DEHN 785637
This image may differ from the desired article.
DEHN 785637DEHN 785637
33,73 EUR
( 40,14 EUR incl. VAT )
≈ £28.23  |  ≈ $37.07
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x DEHN 785637 SEREG3TE lock element for series-mounted devices H:45 mm 3TE
Datasheet:file_download Download
Lieske Part No.:930461
Mfg Part No: 785637
UPC/EAN: 4013364100701
Weight:0.014 kg
Type:SE REG 3TE
Graduated prices net
From piecesPrice per pieces
1032,72 EUR
2531,71 EUR
5030,69 EUR
7529,68 EUR

Product information for DEHN 785637:

The SE REG 3TE lock element from DEHN is a safety component for single- and multi-pole load switches (LS switches) in the field of electrical energy distribution. It serves as a mechanical lock to prevent unintended or unauthorized re-energizing of the switch. The device is specifically designed for switches with a terminal spacing of 45 mm and complies with DIN 40008, which specifies requirements for lock elements in electrical engineering. The size is 3 TE (module units), enabling installation in standard switchboards. The surface features the printed symbol “Do not switch”, which according to VBG 125 (Regulation on the safety of plant and machinery) is intended for marking locked switches. This lock element is designed for nominal voltages up to 1000 V and is therefore suitable for applications in low-voltage installations.

Applications

The lock element is used in electrical installations where safe disconnection and locking of switches is required to prevent accidents or incorrect operation. Typical applications include maintenance work, inspections, or servicing of electrical equipment, where the power supply must be permanently interrupted and secured. It is particularly suitable for row-mounted devices installed in enclosures or distribution boards. Its use in installations with nominal voltages up to 1000 V makes it suitable for industrial, commercial, and municipal electrical installations.

Functions and Equipment in Detail

The lock element prevents mechanical operation of the switch by engaging with the switch mechanism and blocking its movement. It is designed for switches with a terminal spacing of 45 mm, enabling universal use in many standard switch types. The printed marking “Do not switch” serves as a visual warning and meets the requirements of VBG 125, which mandates clear identification of locked equipment. The size of 3 TE allows compact installation in switchboards and fits standard enclosure dimensions.

Technology Explained Simply

The technology of the lock element is based on a mechanical blocking mechanism that engages with the operating mechanism of the LS switch. The lock is inserted into the switch and prevents it from being moved into the ON position. DIN 40008 defines the requirements for the construction and use of lock elements to ensure uniform and safe handling. The “Do not switch” marking is a visual indicator that emphasizes the locking function and supports compliance with safety regulations. The maximum nominal voltage of 1000 V defines its application range in low-voltage installations.

Compatibility and Accessories

The lock element is compatible with single- and multi-pole LS switches featuring a terminal spacing of 45 mm. It is designed for installation in row-mounted devices installed in enclosures or distribution boards. The size of 3 TE enables integration into standard switchboards.

Installation and Mounting

Installation is carried out by inserting the lock element into the switch, where the mechanical blocking prevents operation. No additional tools or components are required. The lock is inserted directly into the switch, with the fit ensuring compatibility with a terminal spacing of 45 mm. The visual marking “Do not switch” is already integrated into the lock element and requires no additional labeling.

Operational Advantages

The lock element provides a reliable mechanical locking function that prevents accidental re-energizing. Compliance with DIN 40008 and VBG 125 ensures conforming and safe application. The visual marking supports safety regulation compliance and improves operational transparency. The universal fit for switches with 45 mm terminal spacing and the size of 3 TE enable flexible use in various installations.

General
NormDIN 40008
Safety markingDo not switch
RegulationVBG 125
Terminal dimension45 mm
Size3 modular widths
Nominal voltage1000 V
Dimensions52 x 51 mm


Product data sheet
Datasheet for DEHN 785637, EAN: 4013364100701

Questions & answers

What is the delivery time of DEHN 785637 SEREG3TE lock element for series-mounted devices H:45 mm 3TE?

The article DEHN 785637 SEREG3TE lock element for series-mounted devices H:45 mm 3TE is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 785637 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 785637 SEREG3TE lock element for series-mounted devices H:45 mm 3TE always at the best possible price. We can give you a discount of 2% on DEHN 785637 SEREG3TE lock element for series-mounted devices H:45 mm 3TE if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of DEHN 785637 SEREG3TE lock element for series-mounted devices H:45 mm 3TE we can offer you a price of 32,72 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
