DEHN 785356 APJ OD YE 58 arc fault tested protective jacket outdoor yellow APC 2 size 58

Your rating:
Average rating
product review for DEHN 785356 APJ OD YE 58 arc fault tested protective jacket outdoor yellow APC 2 size 58
( 4.3 / 5 ) 3 ratings

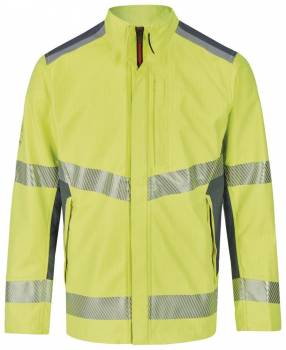

DEHN 785356
This image may differ from the desired article.
DEHN 785356DEHN 785356DEHN 785356DEHN 785356
-15% 504,92 EUR 596,29 EUR
( 600,85 EUR incl. VAT )
≈ £422.62  |  ≈ $554.91
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 785356 APJ OD YE 58 arc fault tested protective jacket outdoor yellow APC 2 size 58
Datasheet:file_download Download
Lieske Part No.:2061141
Mfg Part No: 785356
UPC/EAN: 4013364452138
Weight:1.546 kg
Type:APJ OD YE 58

Product information for DEHN 785356:

The DEHNcare APJ OD YE 58 is an arc fault-tested protective jacket for outdoor use during maintenance and repair work on electrical installations. It is manufactured by DEHN and complies with the requirements of the PPE Regulation (EU) 2016/425, which governs the approval of personal protective equipment. The jacket is specifically designed for work environments where the risk of arc faults exists, and offers high wearing comfort thanks to a single-layer fabric. The material is dirt- and water-repellent, enabling use under various weather conditions. The jacket features a stand-up collar and functional pockets, supporting practical use in the field. Various color combinations and personalization options are available to meet individual requirements for visibility and identification.

Arc fault protection
The protective jacket was tested in the Box Test according to IEC 61482-1-2, a standard defining resistance to thermal and mechanical stresses during arc faults. This test ensures that the jacket provides sufficient protection under realistic conditions. Certification according to IEC 61482-1-2 is essential for use in high-voltage environments where the risk of arc flash explosions exists.

Safety standards and protective functions
The jacket also meets the requirements of EN ISO 11612, which regulates protection against heat, flame, and thermal hazards, as well as EN 1149-5, which prevents static discharge. The EN 13034 (PB 6) standard ensures protection against liquid chemicals, making the jacket suitable for environments with potential chemical exposure. Certification according to EN ISO 20471 ensures high visibility, especially in areas with low lighting or poor visibility conditions. This combination of standards provides comprehensive protection in various work environments.

Material and wearing comfort
The single-layer fabric ensures good breathability and reduces thermal stress on the wearer. The dirt- and water-repellent coating prevents liquids from penetrating the material, enhancing hygiene and the jacket’s longevity. The stand-up collar construction provides additional protection for the neck area, while the functional pockets enable carrying of tools and small items. The jacket is designed for outdoor use, with the color scheme (here: outdoor yellow) enhancing visibility.

Applications
The jacket is intended for electrical maintenance and repair work outdoors, particularly in high-voltage installations where the risk of arc faults exists. It is suitable for technicians, electricians, and other specialists working in hazardous areas. The combination of arc fault protection, chemical protection, and high visibility makes it appropriate equipment for various outdoor applications.

Operational advantages
The combination of multiple standard certifications and the single-layer fabric ensures a high protection standard while maintaining good wearing comfort. The dirt- and water-repellent surface reduces maintenance effort and extends the jacket’s service life. Personalization options allow clear identification of the wearer, which is beneficial in team environments or for external service providers. The jacket is suitable for use in various industries, particularly in energy supply, industry, and technical services outdoors.

General
Degree of protectionArc fault tested
CertificationPSA Regulation (EU) 2016/425
Test methodBox-Test
StandardsIEC 61482-1-2, EN ISO 11612, EN 1149-5, EN 13034 (PB 6), EN ISO 20471
MaterialModacrylic (40%), viscose (59%), static inhibitors (1%), PU membrane: meta-armid knitting (100%)
Surface propertiesdirt- and water-repellent
Size58
CollarButton collar
PocketsFunctional
Personalisationpossible
Arc fault protection class (box test 7 kA / 0.5 s – single-pole)APC 2
Arc energy (Warc or WLBP)320 kJ
Arc rating – ATPV (open arc)16 cal / cm² *)
Arc rating – ELIM (open arc)13 cal / cm²
PPE category (NFPA 70E)PPE 2
Weight per unit area300 g/m²
Material (sewing thread)Kevlar (100%)
StandardIEC 61482-2, EN ISO 11612, EN 1149-5, EN ISO 20471, EN 13034, EN ISO 13688, EN ISO 11611
Primary colourfluorescent yellow
Secondary colourgrey
Zipperred
Size (international)58 (XL/2XL)


Product data sheet
Datasheet for DEHN 785356, EAN: 4013364452138

Questions & answers

What is the delivery time of DEHN 785356 APJ OD YE 58 arc fault tested protective jacket outdoor yellow APC 2 size 58?

The article DEHN 785356 APJ OD YE 58 arc fault tested protective jacket outdoor yellow APC 2 size 58 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 785356 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 785356 APJ OD YE 58 arc fault tested protective jacket outdoor yellow APC 2 size 58 always at the best possible price. We can give you a discount of 2% on DEHN 785356 APJ OD YE 58 arc fault tested protective jacket outdoor yellow APC 2 size 58 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
