DEHN 766041 RST361500 rescue bar 36 kV L 1500 mm

Your rating:
Average rating
product review for DEHN 766041 RST361500 rescue bar 36 kV L 1500 mm
( 4.6 / 5 ) 12 ratings
DEHN 766041
This image may differ from the desired article.
DEHN 766041DEHN 766041
530,00 EUR
( 630,70 EUR incl. VAT )
≈ £443.61  |  ≈ $582.47
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 766041 RST361500 rescue bar 36 kV L 1500 mm
Datasheet:file_download Download
Lieske Part No.:412993
Mfg Part No: 766041
UPC/EAN: 4013364113053
Weight:2.86 kg
Type:RST 36 1500
Graduated prices net
From piecesPrice per pieces
3506,15 EUR
6482,30 EUR
9458,45 EUR
12434,60 EUR

Product information for DEHN 766041:

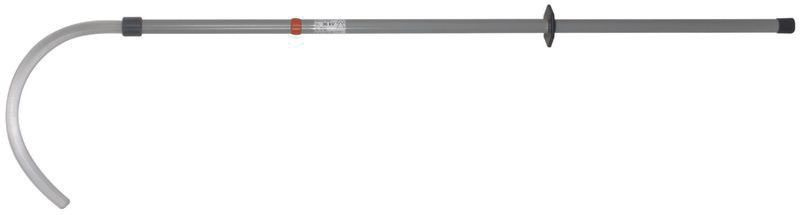

The DEHN rescue pole type RST 36 1500 is an insulating pole designed in accordance with DIN VDE 0681-1 for use in electrical accidents. It serves as a rescue aid for safely extracting persons from hazardous areas, particularly in areas with electrical voltage. The pole features a rescue hook made of solid plastic, designed to be bridging-safe, ensuring secure and reliable attachment during rescue operations. The construction allows for safe handling in areas up to 36 kV, with the pole length measuring 1500 mm.

Applications

The rescue pole is used in electrical engineering and safety technology, particularly in industrial and high-voltage environments, where persons may be injured or trapped in hazardous areas of electrical installations. It is suitable for emergency services, electricians, energy supply companies, and other fields where handling electrical hazard zones is required. The pole enables rescuers to extract persons from near live conductors or energized installations without the rescuer coming into contact with the voltage.

Functions and Equipment in Detail

The pole is designed as an insulating pole, providing electrical insulation and thus minimizing the risk of electric shock for the user. The rescue hook made of solid plastic is specifically designed for use in electrical hazard zones and prevents unintended electrical bridging. The bridging-safe design means the hook cannot act as an electrical conductor, increasing the safety of the rescuer. The length of 1500 mm provides sufficient reach to access persons from a distance, without the rescuer entering the hazardous area.

Technology Explained Simply

The insulating pole operates according to the requirements of standard DIN VDE 0681-1, which defines specific requirements for electrical insulation, mechanical strength, and safety of insulating poles. The pole is designed for a maximum operating voltage of 36 kV, making it suitable for use in high-voltage environments. The material selection of solid plastic for the hook ensures high electrical insulation and mechanical stability. The construction is designed so that no electrical conductivity exists between the hook and the pole body, eliminating the risk of an electrical connection.

Compatibility and Accessories

The rescue pole is designed as a standalone device and requires no additional components for use. It is delivered without further accessories and is immediately ready for operation. The DIN VDE 0681-1 standard ensures compatibility with other insulating devices used in electrical engineering, particularly regarding electrical insulation and mechanical safety.

Mounting and Installation

The rescue pole requires no mounting or installation. It is designed as a handheld device and is used directly from the packaging. Handling involves simply grasping the pole and using the hook, with insulation ensured along the entire length of the pole. No tools or additional mounting procedures are required.

Advantages in Operation

The pole provides a safe and reliable way to extract persons from electrical hazard zones without the rescuer coming into contact with voltage. The bridging-safe design of the hook prevents unintended electrical connections. The 1500 mm length provides sufficient reach, and compliance with DIN VDE 0681-1 ensures adherence to required safety standards. The pole is robust and designed for use in professional environments.

General
ManufacturerDEHN
NormDIN VDE 0681-1
Operating voltage36 kV
Material hookfull plastic
Hook propertybridge-proof
FunctionSaving rod
Nominal voltage (UN)1 ... 36 kV
Max. weight of the electrified victim100 kg
Total length (lG)1695 mm
Insertion depth (IO)620 mm


Product data sheet
Datasheet for DEHN 766041, EAN: 4013364113053

Questions & answers

What is the delivery time of DEHN 766041 RST361500 rescue bar 36 kV L 1500 mm?

The article DEHN 766041 RST361500 rescue bar 36 kV L 1500 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 766041 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 766041 RST361500 rescue bar 36 kV L 1500 mm always at the best possible price. We can give you a discount of 2% on DEHN 766041 RST361500 rescue bar 36 kV L 1500 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of DEHN 766041 RST361500 rescue bar 36 kV L 1500 mm we can offer you a price of 506,15 EUR per piece. The more you buy, the cheaper the article will be.
