DEHN 766040 RST 36 1000 rescue rod Un 36 kV L 1000 mm

Your rating:
Average rating
product review for DEHN 766040 RST 36 1000 rescue rod Un 36 kV L 1000 mm
( 4.4 / 5 ) 13 ratings
DEHN 766040
This image may differ from the desired article.
DEHN 766040DEHN 766040
503,40 EUR
( 599,05 EUR incl. VAT )
≈ £419.33  |  ≈ $552.23
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 766040 RST 36 1000 rescue rod Un 36 kV L 1000 mm
Datasheet:file_download Download
Lieske Part No.:259261
Mfg Part No: 766040
UPC/EAN: 4013364113046
Weight:2.7 kg
Type:RST 36 1000
Graduated prices net
From piecesPrice per pieces
3480,75 EUR
6458,09 EUR
9435,44 EUR
12412,79 EUR

Product information for DEHN 766040:

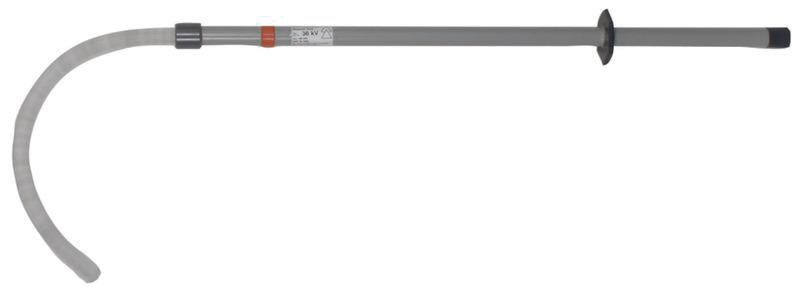

The DEHN rescue pole type RST 36 1000 is an insulating pole developed in accordance with DIN VDE 0681-1 for use in electrical accidents. It serves as a rescue aid for safely extracting persons from hazardous areas, particularly in areas with electrical voltage. The pole features a rescue hook made of solid plastic, designed to be bridging-safe, ensuring no electrical connection is established upon contact with conductive parts. The construction ensures reliable protection for users when working in electrically hazardous environments.

Applications

The rescue pole is primarily intended for use in electrical engineering and in emergencies involving electrical installations. It is used to rescue persons located near live conductors or equipment without direct contact with these components. The pole is designed for voltage ranges up to 36 kV, making it suitable for a wide range of applications in industry, energy supply, and high-voltage plant operations. The length of 1000 mm provides sufficient reach to assist persons from a safe distance without entering the hazardous zone.

Functions and Equipment in Detail

The rescue hook is made of solid plastic, ensuring high insulation performance and mechanical stability. The bridging-safe design prevents the hook from forming an electrical bridge upon contact with conductive parts, thereby increasing the safety of rescue personnel. The pole itself is designed as an insulating pole to interrupt current flow and provide electrical protection. The construction complies with the requirements of standard DIN VDE 0681-1, which applies to insulating poles in electrical engineering.

Technology Explained Simply

The insulating pole operates based on electrical insulation, with the entire pole body made of a non-conductive material that prevents the transmission of electrical energy. The rescue hook made of solid plastic is designed so that it does not establish an electrical connection even when touching metallic or conductive surfaces. The standard DIN VDE 0681-1 specifies the requirements for electrical insulation, mechanical strength, and testing procedures for such poles. The pole is designed for a maximum operating voltage of 36 kV, meaning it can be safely used in installations with up to 36 kV voltage.

Compatibility and Accessories

The rescue pole is designed as a standalone device and is delivered without additional components. The pole is intended for use with the designated rescue hook and does not require additional tools.

Mounting and Installation

The rescue pole requires no mounting or installation. It is designed as a handheld device and can be used directly. No additional mounting or fastening elements are required. Handling is done by direct gripping and use of the hook.

Operational Advantages

The pole provides a safe and reliable rescue operation in electrically hazardous areas. The bridging-safe design of the hook minimizes the risk of electrical contact. Compliance with the DIN VDE 0681-1 standard ensures the product’s quality and safety. The length of 1000 mm provides sufficient reach to assist persons from a safe distance without entering the hazardous zone. The pole is easy to handle and requires no additional mounting or installation.

General
ManufacturerDEHN
NormDIN VDE 0681-1
FunctionSaving rod
Material hookfull plastic
Hook propertybridge-proof
Operating voltage36 kV
Nominal voltage (UN)1 ... 36 kV
Max. weight of the electrified victim100 kg
Total length (lG)1235 mm
Insertion depth (IO)410 mm


Product data sheet
Datasheet for DEHN 766040, EAN: 4013364113046

Questions & answers

What is the delivery time of DEHN 766040 RST 36 1000 rescue rod Un 36 kV L 1000 mm?

The article DEHN 766040 RST 36 1000 rescue rod Un 36 kV L 1000 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 766040 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 766040 RST 36 1000 rescue rod Un 36 kV L 1000 mm always at the best possible price. We can give you a discount of 2% on DEHN 766040 RST 36 1000 rescue rod Un 36 kV L 1000 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of DEHN 766040 RST 36 1000 rescue rod Un 36 kV L 1000 mm we can offer you a price of 480,75 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
