DEHN 562150 CUPAHGLQ50L40CUAL Cupalhülse Cu outside Al inside for Rd 8 mm = 50 mm² L 40 mm

Your rating:
Average rating
product review for DEHN 562150 CUPAHGLQ50L40CUAL Cupalhülse Cu outside Al inside for Rd 8 mm = 50 mm² L 40 mm
( 4.7 / 5 ) 9 ratings

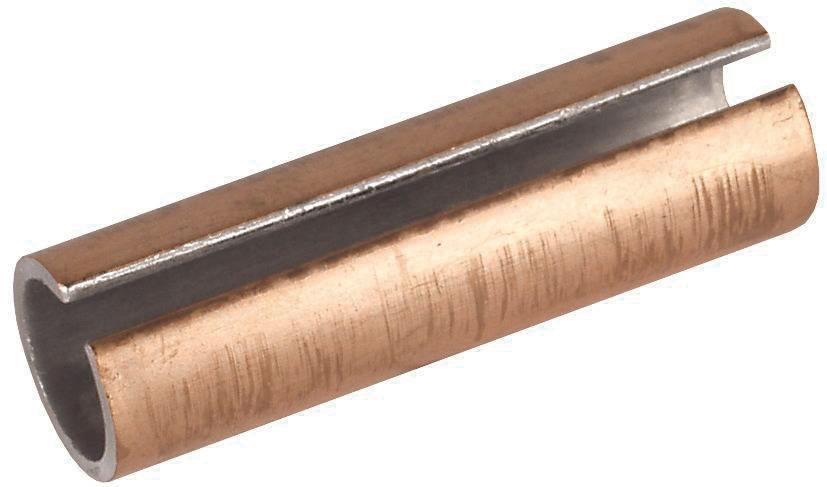

DEHN 562150
This image may differ from the desired article.
DEHN 562150DEHN 562150
5,98 EUR
( 7,12 EUR incl. VAT )
≈ £5.01  |  ≈ $6.57
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 562150 CUPAHGLQ50L40CUAL Cupalhülse Cu outside Al inside for Rd 8 mm = 50 mm² L 40 mm
Datasheet:file_download Download
Lieske Part No.:484028
Mfg Part No: 562150
UPC/EAN: 4013364019775
Weight:0.004 kg
Type:CUPAH GL Q50 L40 CU AL
Graduated prices net
From piecesPrice per pieces
255,62 EUR
505,26 EUR
1004,90 EUR
2504,54 EUR

Product information for DEHN 562150:

The CUPAH GL Q50 L40 CU AL from DEHN is a specially developed Cupal sleeve for secure and corrosion-resistant connection between copper conductors and aluminium or steel conductors. These connection elements are used in electrical installations where different metals must be connected to extend, join, or connect conductors to devices. The sleeve is designed as a slip-on version, allowing it to be directly slid onto cut conductors without requiring additional tools or special mounting procedures.

Applications

The Cupal sleeve is particularly used in industrial and commercial electrical installations where copper must be connected to aluminium or steel. Typical applications include earthing systems, conductor connections in machine and plant engineering, and in building electrotechnics where different materials are present in the network. The connection is made by sliding the sleeve onto the prepared conductors, creating a mechanically stable and electrically conductive connection.

Functions and Equipment in Detail

The sleeve consists of an outer copper shell and an inner aluminium shell, achieving galvanic separation between the metals. This construction prevents the formation of galvanic corrosion, which can occur when copper and aluminium are in direct contact. The connection is made by sliding the sleeve onto the cut conductors, pressing the metallic surfaces together to form a secure connection. The sleeve is designed for a cross-section of 50 mm², corresponding to a round conductor with a diameter of 8 mm.

Technology Explained Simply

The designation CUPAH GL Q50 L40 CU AL describes the specific version: CUPAH stands for Cupal sleeve, GL for the slip-on version, Q50 for the cross-section of 50 mm², L40 for the length of 40 mm, and CU AL for the material combination of copper (outer) and aluminium (inner). The sleeve is slid onto the cut conductors, pressing the metallic surfaces together. The galvanic separation provided by the double-shell construction prevents electrochemical reactions that could lead to corrosion. The connection is therefore durable and reliable, even under industrial conditions.

Compatibility and Accessories

The Cupal sleeve is designed for connecting copper conductors with aluminium or steel conductors. The sleeve is supplied as a single unit and requires no additional mounting aids.

Mounting and Installation

Installation is done by sliding the sleeve onto the cut conductors. The conductors must be clean and free of oxidation before installation to ensure optimal electrical conductivity. The sleeve is slid onto the conductors, pressing the metallic surfaces together. No additional tools or special mounting procedures are required. The connection is immediately functional after sliding on.

Advantages in Operation

Using the CUPAH GL Q50 L40 CU AL ensures a durable and corrosion-resistant connection between different metals. The galvanic separation prevents electrochemical reactions that could lead to corrosion. The connection is mechanically stable and electrically conductive, increasing the reliability of the electrical system. The simple installation by sliding reduces installation time and requires no special tools.

General
Cross section50 mm²
MaterialCopper outside, aluminium inside
Connection technologySliding onto cut wires
ApplicationConnection of copper with aluminium or steel
Material outsideCu
Material insideAl
Length40 mm
Inside diameter Ø8.2 mm
Diameter Ø outside10.0 mm
Material thickness1.0 mm


Product data sheet
Datasheet for DEHN 562150, EAN: 4013364019775

Questions & answers

What is the delivery time of DEHN 562150 CUPAHGLQ50L40CUAL Cupalhülse Cu outside Al inside for Rd 8 mm = 50 mm² L 40 mm?

The article DEHN 562150 CUPAHGLQ50L40CUAL Cupalhülse Cu outside Al inside for Rd 8 mm = 50 mm² L 40 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 562150 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 562150 CUPAHGLQ50L40CUAL Cupalhülse Cu outside Al inside for Rd 8 mm = 50 mm² L 40 mm always at the best possible price. We can give you a discount of 2% on DEHN 562150 CUPAHGLQ50L40CUAL Cupalhülse Cu outside Al inside for Rd 8 mm = 50 mm² L 40 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of DEHN 562150 CUPAHGLQ50L40CUAL Cupalhülse Cu outside Al inside for Rd 8 mm = 50 mm² L 40 mm we can offer you a price of 5,62 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
