DEHN 540122 UKSV 6.10 AQ16 50 V4A UNI-KS connector NIRO (V4A) for Rd 6-10 mm or 16-50 mm²

Your rating:
Average rating
product review for DEHN 540122 UKSV 6.10 AQ16 50 V4A UNI-KS connector NIRO (V4A) for Rd 6-10 mm or 16-50 mm²
( 4.6 / 5 ) 17 ratings

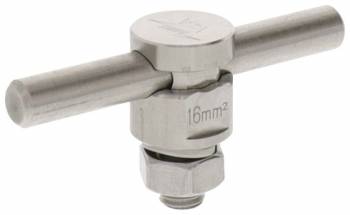

DEHN 540122
This image may differ from the desired article.
DEHN 540122DEHN 540122
24,04 EUR
( 28,61 EUR incl. VAT )
≈ £20.03  |  ≈ $26.37
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 540122 UKSV 6.10 AQ16 50 V4A UNI-KS connector NIRO (V4A) for Rd 6-10 mm or 16-50 mm²
Datasheet:file_download Download
Lieske Part No.:1003429
Mfg Part No: 540122
UPC/EAN: 4013364379930
Weight:0.063 kg
Type:UKSV 6.10 AQ16 50 V4A
Graduated prices net
From piecesPrice per pieces
1522,60 EUR
3021,16 EUR
7019,71 EUR
10018,27 EUR

Product information for DEHN 540122:

The DEHN UKSV 6.10 AQ16 50 V4A is a screw clamp connector designed in accordance with DIN EN 62561-1 for the lightning current-carrying connection of round conductors. It is used for the secure connection of round conductors with a diameter of 6 to 10 mm or a cross-sectional area of 16 to 50 mm² to flat profiles, rainwater pipe clamps, or other components of a lightning protection system. The connector is manufactured as a single-piece unit from NIRO (V4A), a stainless steel, ensuring high corrosion resistance and mechanical strength. It is equipped with a screw, an M10 nut, and a guide with a keyway to ensure a secure and durable connection.

Lightning protection systems require reliable connections to safely divert lightning current. The UKSV 6.10 AQ16 50 V4A meets these requirements through its design, which ensures high electrical conductivity and mechanical stability. The connection is made via a screw clamp that securely holds the round conductor and simultaneously enables a low transition resistance, which is crucial for the effectiveness of the lightning protection system.

Applications include integration into external lightning protection systems, particularly at points where round conductors must be connected to flat metal profiles or rainwater pipe clamps. The use of V4A material makes the connector especially suitable for outdoor applications, where high requirements for weather resistance apply. The keyway on the guide facilitates installation and ensures precise alignment of the screw.

Functions and equipment in detail include the single-piece construction from NIRO (V4A), which provides high mechanical strength and corrosion resistance. The integrated screw and M10 nut enable secure fastening of the round conductor. The guide with keyway ensures precise positioning and facilitates installation. The design complies with DIN EN 62561-1, the standard applicable to lightning protection materials.

Technology explained simply means that the connector functions as a screw clamp connector, where the round conductor is held securely by a screw clamp. The connection is designed to withstand the high current loads during a lightning strike. The use of V4A (stainless steel) ensures that the connector remains functional over the long term, even in damp or corrosive environments. The keyway on the guide supports installation and prevents the screw from shifting during tightening.

Compatibility and accessories refer to use with round conductors in the diameter range of 6 to 10 mm or with a cross-section of 16 to 50 mm². The connector is suitable for connecting to flat profiles, rainwater pipe clamps, or other parts of a lightning protection system. The DIN EN 62561-1 standard ensures that the connector can be used in standardized lightning protection systems.

Installation and mounting are carried out by tightening the screw with the M10 nut, with the guide with keyway supporting correct positioning. Installation is typically possible using a screwdriver or an appropriate wrench. The connection must be executed such that the round conductor is securely held and a low transition resistance is ensured. The requirements of DIN EN 62561-1 must be considered during installation.

The use of the DEHN UKSV 6.10 AQ16 50 V4A in lightning protection systems ensures a reliable and durable connection. The material selection of V4A and the constructive design guarantee high functionality and longevity. Compliance with DIN EN 62561-1 ensures that the connector is suitable for use in standardized systems. Installation is simple and requires no special tools other than a screwdriver or wrench.

Lightning protection systems, screw clamp connector, DIN EN 62561-1, V4A, round conductor, **screw clamp

General
ManufacturerDEHN
Product typescrew terminal connector
NormDIN EN 62561-1
MaterialV4A
Screw sizeM10
Round conductor diameter6-10 mm
Round conductor cross-section16-50 mm²
Modelmonoblock
Guidancewith keyway
Material of clamping screwStSt (V4A)
Material of clampStSt (V4A)
Material No.1.4401
Clamping range Rd6-10 mm
Connection (solid / stranded)16-50 mm²
Type+ spring washer
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 540122, EAN: 4013364379930

Questions & answers

What is the delivery time of DEHN 540122 UKSV 6.10 AQ16 50 V4A UNI-KS connector NIRO (V4A) for Rd 6-10 mm or 16-50 mm²?

The article DEHN 540122 UKSV 6.10 AQ16 50 V4A UNI-KS connector NIRO (V4A) for Rd 6-10 mm or 16-50 mm² is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 540122 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 540122 UKSV 6.10 AQ16 50 V4A UNI-KS connector NIRO (V4A) for Rd 6-10 mm or 16-50 mm² always at the best possible price. We can give you a discount of 2% on DEHN 540122 UKSV 6.10 AQ16 50 V4A UNI-KS connector NIRO (V4A) for Rd 6-10 mm or 16-50 mm² if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of DEHN 540122 UKSV 6.10 AQ16 50 V4A UNI-KS connector NIRO (V4A) for Rd 6-10 mm or 16-50 mm² we can offer you a price of 22,60 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
