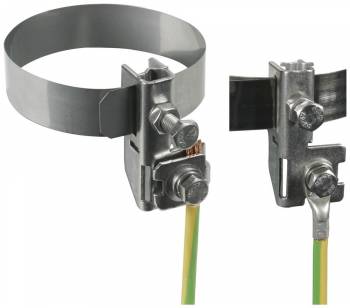

DEHN 540104 BRS 27.89 AK1X10 2X6.8 GSG V2A strip conduit, D27-89 mm, connection 6-8/10/4-50 mm²

Your rating:
Average rating
product review for DEHN 540104 BRS 27.89 AK1X10 2X6.8 GSG V2A strip conduit, D27-89 mm, connection 6-8/10/4-50 mm²
( 4.6 / 5 ) 7 ratings
DEHN 540104
This image may differ from the desired article.
DEHN 540104DEHN 540104DEHN 540104
16,25 EUR
( 19,34 EUR incl. VAT )
≈ £13.54  |  ≈ $17.83
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 540104 BRS 27.89 AK1X10 2X6.8 GSG V2A strip conduit, D27-89 mm, connection 6-8/10/4-50 mm²
Datasheet:file_download Download
Lieske Part No.:997675
Mfg Part No: 540104
UPC/EAN: 4013364239685
Weight:0.127 kg
Type:BRS 27.89 AK1X10 2X6.8 GSG V2A
Graduated prices net
From piecesPrice per pieces
1515,64 EUR
3015,03 EUR
7014,42 EUR
10013,81 EUR

Product information for DEHN 540104:

The band pipe clamp BRS 27.89 AK1X10 2X6.8 GSG V2A from DEHN is a grounding element specifically designed for use in lightning and equipotential bonding. It is used for secure connection of pipes in protective and functional equipotential bonding according to DIN VDE 0100 Part 410/540, as well as in lightning protection equipotential bonding in accordance with DIN EN 62305-3 (VDE 0185-305-3). The clamp is fully made of NIRO (V2A) and features a continuously adjustable tension band, ensuring a firm and durable fixation. The construction is secured against self-loosening, ensuring long-term stability of the connection and minimizing the risk of loosening during operation.

Applications

The band pipe clamp is used in the field of electrical installation and lightning protection, particularly for integrating pipe lines into the grounding system. It is suitable for use in buildings where a reliable equipotential bonding connection between metallic installation parts and the grounding system is required. The clamp meets the requirements of standard DIN EN 62561-1, which applies to grounding and equipotential bonding connections in electrical installations. Typical use is in conjunction with pipes in the diameter range of 27 to 89 mm.

Functions and Equipment in Detail

The clamp enables the connection of a single conductor with a diameter of 10 mm or 1 to 2 conductors with a diameter of 6 to 8 mm. Alternatively, it can also be used for securing conductors with a cross-section of 4 to 50 mm² (single- or multi-strand). The tension band is continuously adjustable, allowing adaptation to different pipe diameters in the range of 27 to 89 mm. The connection is made via a mechanical clamp connection, ensuring a firm and durable bond. The design provides high mechanical strength and electrical conductivity.

Technology Explained Simply

The band pipe clamp consists of a metallic band that is placed around the pipe to be connected and tightened using a tension mechanism. The band is made of V2A steel (stainless steel), ensuring high corrosion resistance and longevity even in moist or aggressive environments. The connection is secured by a special clamping technique that prevents self-loosening. This is particularly important to ensure a durable electrical connection that does not fail in the event of a lightning strike or electrical fault. The clamp is designed for use in electrical installations complying with DIN VDE 0100 and DIN EN 62305-3.

Compatibility and Accessories

The band pipe clamp is compatible with pipes in the diameter range of 27 to 89 mm. It can be connected to various conductors, including single- and multi-strand conductors with a cross-section of 4 to 50 mm². The clamp is part of a comprehensive grounding system and is used in conjunction with other grounding elements such as grounding clamps, grounding conductors, or lightning protection systems. Use is in installations complying with DIN VDE 0100 Part 410/540 and DIN EN 62305-3. The clamp is designed for use in electrical installations requiring a safe and durable equipotential bonding connection.

Installation and Mounting

Installation is carried out by placing the tension band around the pipe and tightening the tension mechanism until a firm connection is achieved. The clamp is designed to be mounted without additional tools or aids. Connection to the conductors is made via the integrated clamp connection, ensuring a secure electrical connection. Installation should be carried out in accordance with the requirements of the relevant standards (DIN VDE 0100, DIN EN 62305-3) to ensure functionality and safety of the installation.

Operational Advantages

The band pipe clamp provides a reliable and durable connection, minimizing the risk of loosening during operation. The use of V2A steel ensures high corrosion resistance, extending the service life of the clamp. The continuously adjustable design allows adaptation to various pipe diameters, increasing flexibility during installation. The clamp meets the requirements of relevant standards, ensuring compliance with safety standards in electrical installations. Simple installation and high mechanical strength make the clamp a reliable component in grounding systems.

Protection Rating

The clamp is designed for use in electrical installations complying with DIN EN 62561-1. The construction is designed to provide high mechanical strength and electrical conductivity. The use of V2A steel ensures high corrosion resistance, extending the service life of the clamp. The clamp is suitable for use in buildings where a secure equipotential bonding connection is required.

Compatibility with Standards

The band pipe clamp is manufactured in accordance with DIN EN 62561-1 and meets the requirements for grounding and equipotential bonding connections. It is suitable for use in protective and functional equipotential bonding according to DIN VDE 0100 Part 410/540, as well as in lightning protection equipotential bonding according to DIN EN 62305-3 (VDE 0185-305-3). The clamp is part of a comprehensive grounding system and is used in conjunction with other grounding elements.

Application Areas

The clamp is used in electrical installations requiring a safe and durable equipotential bonding connection. It is particularly suitable for use in buildings where metallic installation parts must be integrated into the grounding system. The clamp is designed for use in installations complying with DIN VDE 0100 and DIN EN 62305-3. Use is in conjunction with pipes in the diameter range of 27 to 89 mm.

Practical Use

The band pipe clamp is used in electrical installation and lightning protection to integrate metallic pipe lines into the grounding system. The clamp ensures a secure and durable connection that meets the requirements of relevant standards. Use is in buildings where a reliable equipotential bonding connection is required. The clamp is part of a comprehensive grounding system and is used in conjunction with other grounding elements.

General
Pipe diameter27-89 mm
Conductor diameter10 mm
Conductor cross section4-50 mm²
MaterialStSt
Degree of protectionsecured against self-loosening -
Compliance with standardsDIN EN 62561-1, DIN VDE 0100 Part 410/540, DIN EN 62305-3 (VDE 0185-305-3) -
StrapContinuously adjustable -
Clamping range for pipe Ø27-89 mm (3/4-3'')
Screwd i M8 x 20 mm
Screw materialStSt
Dimensions of strap (l1 x w x d)330 x 25 x 0.3 mm
Connection Rd1 x 10 mm / 1-2 x 6-8 mm
Connection (solid / stranded)4-50 mm²
Lightning current carrying capability (10/350 µs)= *)
StandardEN 62561-1
Application noteFor connection with a cable lug the clamping piece has to be removed
Terminal Torque Ratings≥ 15 Nm


Product data sheet
Datasheet for DEHN 540104, EAN: 4013364239685
