DEHN 472024 ES 2X4 ASB11 STTZN earthing strip for equipotential bonding

Your rating:
Average rating
product review for DEHN 472024 ES 2X4 ASB11 STTZN earthing strip for equipotential bonding
( 4.3 / 5 ) 8 ratings

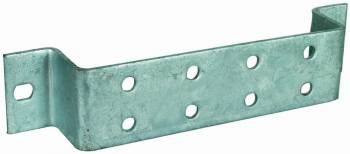

DEHN 472024
This image may differ from the desired article.
28,59 EUR
( 34,02 EUR incl. VAT )
≈ £23.93  |  ≈ $31.42
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 472024 ES 2X4 ASB11 STTZN earthing strip for equipotential bonding
Datasheet:file_download Download
Lieske Part No.:1440011
Mfg Part No: 472024
UPC/EAN: 4013364034495
Weight:0.677 kg
Type:ES 2X4 ASB11 STTZN
Graduated prices net
From piecesPrice per pieces
1026,87 EUR
2525,16 EUR
5023,44 EUR
7521,73 EUR

Product information for DEHN 472024:

The DEHN earthing bar type ES 2X4 ASB11 STTZN, manufacturer number 472024, is a component for equipotential bonding in electrical and lightning protection systems. It serves as a connection point for earthing conductors and is mounted directly onto steel structures to ensure a reliable electrical connection. The bar is specifically designed for use in industrial, commercial, or technical installations where secure and durable earthing is required.

Applications

The earthing bar is used in installations where a connection between metallic components and the earthing system must be established. This includes, for example, machines, enclosures, metal structures, or building shells that are connected to the earthing system as part of lightning protection or protective and equipotential bonding. The bar allows the connection of flat conductors with holes as well as round conductors, for example via KS connectors, enabling flexible integration into existing systems.

Functions and Equipment in Detail

The bar features a total of eight connection points, arranged in two groups with four holes each. The holes have a diameter of 11 mm, enabling compatible connection with common earthing conductors and connectors. The execution as steel sheet with zinc coating (St/tZn) ensures sufficient corrosion resistance, particularly in indoor environments or with limited moisture exposure. Mounting is done via screw fastening to steel structures, creating a secure mechanical and electrical connection.

Technology Explained Simply

The bar serves as a collection point for multiple earthing conductors, thereby optimizing the electrical connection between various metallic parts and the earthing system. The use of holes with 11 mm diameter allows the use of standard connectors, such as KS connectors, commonly used in electrical installations. The material execution of steel with zinc coating provides sufficient protection against oxidation, ensuring long-term stability of the connection. Mounting to steel structures is done using screws, ensuring the bar remains mechanically loadable and electrically conductive.

Compatibility and Accessories

The earthing bar is designed for connecting flat conductors with holes as well as round conductors. The connection is made, for example, via KS connectors, which are common in electrical installations. The holes with 11 mm diameter are compatible with standard connectors and conductors used in industry and commerce.

Mounting and Installation

Mounting is done via screw fastening to steel structures. The bar is fixed at the desired position, with screws ensuring both mechanical and electrical connection. Subsequently, the earthing conductors are connected through the holes using suitable connectors. Installation requires no special tools other than a screwdriver or an appropriate wrench for the screws used. The electrical connection must be carried out in accordance with applicable standards and regulations (e.g. VDE 0100, DIN VDE 0131).

Advantages in Operation

The bar provides a structured and clear way to connect multiple earthing conductors at a single point. The clear division into two groups with four connections each simplifies planning and maintenance of the installation. The use of standard holes (11 mm) ensures high compatibility with common installation components. The material execution of steel with zinc coating ensures sufficient service life in typical operating environments. The bar is thus a reliable component for equipotential bonding in electrical and lightning protection systems.

General
Mounting holes2x4
Bore diameter11 mm
Mounting methodScrew mounting on steel structures
Connection optionsflat conductor with hole, round conductor via KS connector
MaterialSt/tZn
Cross section240 mm²
Connection holes Ø11 mm
Dimensions (l x w x d1)293 x 60 x 4 mm
Fixing[2x] 12 x 15 mm
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 472024, EAN: 4013364034495

Questions & answers

What is the delivery time of DEHN 472024 ES 2X4 ASB11 STTZN earthing strip for equipotential bonding?

The article DEHN 472024 ES 2X4 ASB11 STTZN earthing strip for equipotential bonding is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 472024 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 472024 ES 2X4 ASB11 STTZN earthing strip for equipotential bonding always at the best possible price. We can give you a discount of 2% on DEHN 472024 ES 2X4 ASB11 STTZN earthing strip for equipotential bonding if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of DEHN 472024 ES 2X4 ASB11 STTZN earthing strip for equipotential bonding we can offer you a price of 26,87 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
