DEHN 407012 ERS 21 AS4.10 TG STTZN earthing pipe clamp D21.3 mm TG/tZn

Your rating:
Average rating
product review for DEHN 407012 ERS 21 AS4.10 TG STTZN earthing pipe clamp D21.3 mm TG/tZn
( 4.6 / 5 ) 7 ratings

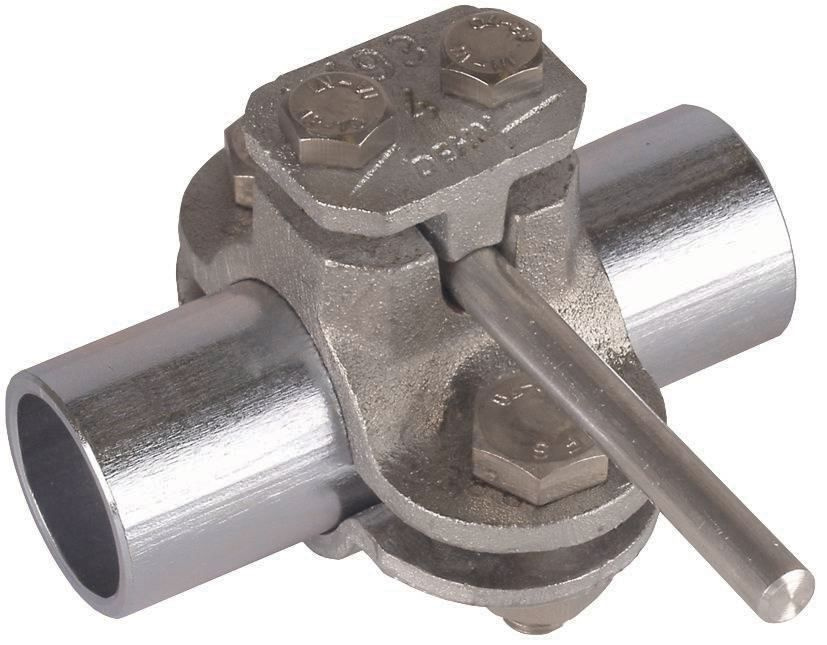

DEHN 407012
This image may differ from the desired article.
DEHN 407012DEHN 407012DEHN 407012
29,73 EUR
( 35,38 EUR incl. VAT )
≈ £24.88  |  ≈ $32.67
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 407012 ERS 21 AS4.10 TG STTZN earthing pipe clamp D21.3 mm TG/tZn
Datasheet:file_download Download
Lieske Part No.:600673
Mfg Part No: 407012
UPC/EAN: 4013364026100
Weight:0.432 kg
Type:ERS 21 AS4.10 TG STTZN
Graduated prices net
From piecesPrice per pieces
1027,95 EUR
2526,16 EUR
5024,38 EUR
7522,59 EUR

Product information for DEHN 407012:

The earth pipe clamp ERS 21 AS4.10 TG STTZN from DEHN is a component for lightning protection and equipotential bonding in electrical installations. It is designed for the secure integration of pipes with an outer diameter of 21 mm (1/5,1 cm ( 2 inch )) into the protective and functional equipotential bonding in accordance with DIN VDE 0100-410/540, as well as into the lightning protection equipotential bonding according to DIN EN 62305-3 (VDE 0185-305-3). The product complies with the standard DIN EN 62561-1, which defines requirements for earthing materials in lightning protection systems.

Applications

The clamp is used in electrical installations to integrate metallic pipe lines, for example water or heating pipes, into the earthing system. This ensures that potential differences between various metallic parts are dissipated in the event of a lightning strike or fault current. This protects people and installations from dangerous touch voltages. The clamp is intended for use in buildings and technical installations where proper earthing is required.

Functions and equipment in detail

The earth pipe clamp features a clamping area for pipes with an outer diameter of 21 mm, in accordance with the standard DIN EN ISO 228-1. The fastening is achieved using screws with dimensions M10 x 30 mm and M8 x 20 mm. The screws and nut are made of steel with zinc coating (St/tZn), providing good corrosion resistance. The clamp itself is made of TG (deep-drawn steel) with zinc coating, enhancing mechanical strength and weather resistance.

Technology explained simply

The clamp enables a secure electrical connection between the pipe to be earthed and the earthing conductor. The connection is made via a round wire (Rd) with a diameter of 4 to 10 mm or via a flat conductor with a maximum cross-section of 70 mm². The dimensions of the clamp are 80 mm in length (l1) and 11 mm in width (r1). The lightning current-carrying capacity is specified according to the standard DIN EN 62561-1, with the exact classification detailed in the test certificate. This means the clamp is suitable for use in lightning protection systems that must withstand high current surges.

Compatibility and accessories

The clamp is designed for pipes with an outer diameter of 21 mm and can be connected to earthing conductors up to 70 mm² cross-section. The connection is made via the integrated M10 and M8 screws. The clamp is part of DEHN’s earth pipe clamp lightning protection product family and can be used in combination with other equipotential bonding components, such as parallel or T-connectors, to build complex earthing systems.

Installation and mounting

Mounting is performed by tightening the M10 and M8 screws, which securely hold the pipe in the clamp. The earthing conductor is connected via the designated connection points (round wire Ø 4–10 mm or max. 70 mm²). The clamp is designed for fixed mounting on metallic pipe lines. Installation requires no additional tools other than a suitable screwdriver or wrench for the M10 and M8 screws.

Advantages in operation

The clamp provides a reliable and durable connection between the pipe line and the earthing conductor. The use of steel with zinc coating ensures high corrosion resistance, extending the component’s service life. Compliance with DIN EN 62561-1 guarantees that the product meets the requirements for lightning protection systems. Clear marking and standardized dimensions facilitate planning and installation in electrical installations.

General
Clamping range for pipe Ø21 mm
MaterialMCI / St/tZn
Dimension (l1 x r1)80 x 11 mm
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 407012, EAN: 4013364026100

Questions & answers

What is the delivery time of DEHN 407012 ERS 21 AS4.10 TG STTZN earthing pipe clamp D21.3 mm TG/tZn?

The article DEHN 407012 ERS 21 AS4.10 TG STTZN earthing pipe clamp D21.3 mm TG/tZn is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 407012 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 407012 ERS 21 AS4.10 TG STTZN earthing pipe clamp D21.3 mm TG/tZn always at the best possible price. We can give you a discount of 2% on DEHN 407012 ERS 21 AS4.10 TG STTZN earthing pipe clamp D21.3 mm TG/tZn if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of DEHN 407012 ERS 21 AS4.10 TG STTZN earthing pipe clamp D21.3 mm TG/tZn we can offer you a price of 27,95 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
