DEHN 390059 MVK8.10SKM10X30V2A MV terminal NIRO for round wire 8–10 mm

Your rating:
Average rating
product review for DEHN 390059 MVK8.10SKM10X30V2A MV terminal NIRO for round wire 8–10 mm
( 4.3 / 5 ) 12 ratings
DEHN 390059
This image may differ from the desired article.
DEHN 390059DEHN 390059
9,50 EUR
( 11,31 EUR incl. VAT )
≈ £7.95  |  ≈ $10.44
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >10 pieces
1x DEHN 390059 MVK8.10SKM10X30V2A MV terminal NIRO for round wire 8–10 mm
Datasheet:file_download Download
Lieske Part No.:154082
Mfg Part No: 390059
UPC/EAN: 4013364096004
Weight:0.002 kg
Type:MVK 8.10 SKM10X30 V2A
Graduated prices net
From piecesPrice per pieces
258,93 EUR
508,36 EUR
1007,79 EUR
2507,22 EUR

Product information for DEHN 390059:

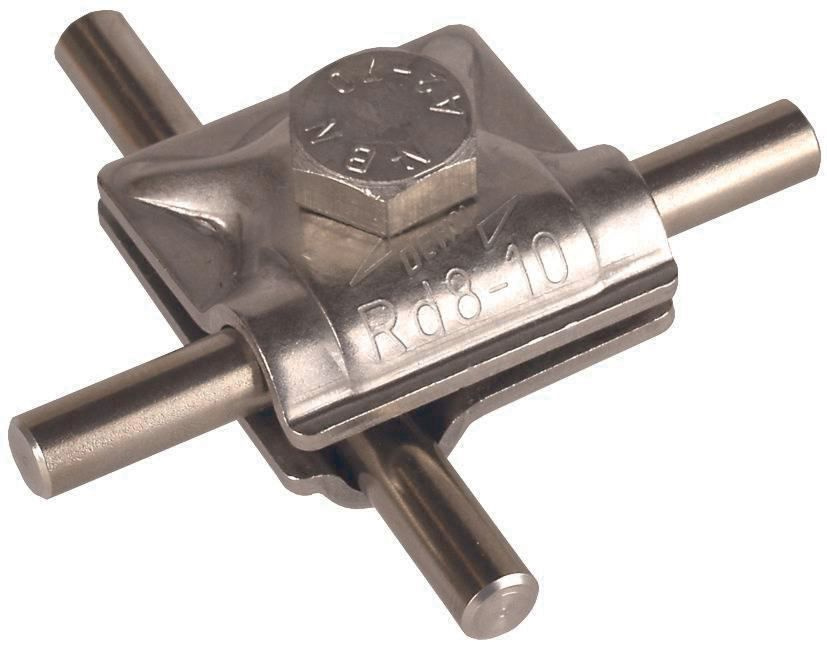

The DEHN MVK 8.10 SKM10X30 V2A is a multi-purpose connection terminal from the MV terminal product family, designed for secure and universal connection of round conductors in the field of lightning protection and earthing technology. The product complies with the standard DIN EN 62561-1 and is therefore suitable for use in electrical installations that must meet high requirements for lightning current carrying capacity and electrical connection. The terminal is two-part and allows use as a cross, T, or parallel terminal, depending on the installation requirements.

Multi-purpose connection technology
The MVK 8.10 SKM10X30 V2A serves as a universal connection component for round conductors with a diameter of 8 to 10 mm. The two-part construction consists of an upper and a lower part, with the lower part featuring a thread that is fastened with a hexagon screw. This design enables a secure and durable connection that remains stable even under mechanical stress. The terminal is designed for connecting conductors with a material thickness of 2.5 mm, which is typical for round conductors in lightning protection technology.

Materials and corrosion protection
The material of the terminal as well as the screw and nut is NIRO, indicating stainless steel (V2A). This material offers high corrosion resistance and is therefore suitable for use in various environments, particularly in areas with increased humidity or aggressive atmosphere. The use of NIRO ensures a long service life and reliable electrical conductivity throughout the entire period of use.

Lightning current carrying capacity and compliance with standards
The terminal is tested according to DIN EN 62561-1, a standard that defines requirements for lightning protection materials. The lightning current carrying capacity is specified for an impulse of 10/350 µs, with the exact value assignment referring to the test certificate. This means that the terminal is capable of safely transmitting high lightning currents without the connection failing. Compliance with standards ensures that the product may be used in electrical installations that meet the requirements of lightning protection technology.

Technical design and installation
The screw has a diameter of M10 and a length of 30 mm, allowing sufficient anchoring in the conductors. The terminal is dimensioned to securely enclose round conductors with a diameter of 8 to 10 mm. Installation is carried out by screwing the two parts together, with the hexagon screw tightened using an appropriate tool. The two-part construction facilitates installation, especially when connecting multiple conductors in T- or cross configurations.

Applications and compatibility
The MVK 8.10 SKM10X30 V2A is intended for use in lightning protection systems, earthing systems, and equipotential bonding installations. It is particularly suitable for connecting round conductors in buildings, industrial plants, or other technical installations where a secure electrical connection is required. The terminal is compatible with round conductors in the specified diameter range and can be used in various configurations depending on the requirements of the respective installation.

Operational advantages
The terminal provides a reliable and durable connection that remains stable even under high mechanical and electrical loads. The use of NIRO ensures high corrosion resistance, increasing maintenance-free operation and service life. The universal usability as a cross, T, or parallel terminal reduces the number of required components and simplifies the planning and installation of systems. Compliance with DIN EN 62561-1 ensures adherence to technical specifications and facilitates approval of installations by competent authorities.

General
Material of clampStSt
Clamping range Rd8-10 mm
Material thickness (t1 / t2)2.5 mm
Screwd i M10 x 30 mm
Material of screw / nutStSt
Lightning current carrying capability (10/350 µs)= *)
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 390059, EAN: 4013364096004
