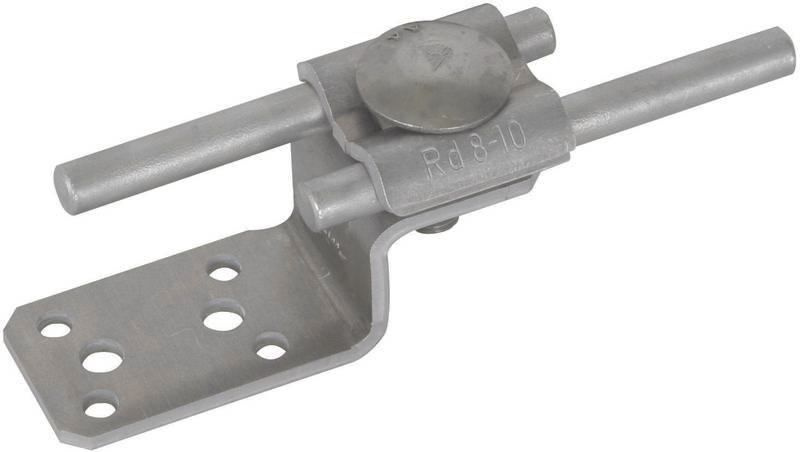

DEHN 377200 ALZFDUL6.10B5.26.5L81AL connection lug Z-shape Al for Rd 8-10 mm

Your rating:
Average rating
product review for DEHN 377200 ALZFDUL6.10B5.26.5L81AL connection lug Z-shape Al for Rd 8-10 mm
( 4.5 / 5 ) 8 ratings
DEHN 377200
This image may differ from the desired article.
DEHN 377200DEHN 377200
5,22 EUR
( 6,21 EUR incl. VAT )
≈ £4.37  |  ≈ $5.74
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >25 pieces
1x DEHN 377200 ALZFDUL6.10B5.26.5L81AL connection lug Z-shape Al for Rd 8-10 mm
Datasheet:file_download Download
Lieske Part No.:332137
Mfg Part No: 377200
UPC/EAN: 4013364136465
Weight:0.07 kg
Type:AL ZF DUL 6.10 B5.2 6.5 L81 AL
Graduated prices net
From piecesPrice per pieces
254,91 EUR
504,59 EUR
1004,28 EUR
2503,97 EUR

Product information for DEHN 377200:

The connection bracket AL ZF DUL 6.10 B5.2 6.5 L81 AL from DEHN is a component for secure connection of metal enclosures in earthing systems. It is manufactured in accordance with DIN EN 62561-1 and serves as a Z-shaped connection bracket with double lug, enabling the connection of metallic components such as enclosures, housings or enclosures to the earthing system. The bracket is made of aluminium (Al) and has a material thickness of 3 mm, ensuring sufficient mechanical strength and electrical conductivity. Mounting is achieved via four holes with a diameter of Ø5.2 mm and two holes with Ø6.5 mm, allowing the bracket to be fastened to metallic surfaces using blind rivets or drill screws.

Applications

The connection bracket is intended for use in electrical and electronic installations, particularly in areas where reliable earthing is required, such as industrial plants, buildings with lightning protection systems, or IT infrastructures. It is frequently used to connect metal enclosures to earthing conductors or equipotential bonding systems. The standard DIN EN 62305-3, especially Annex Bbl. 1, provides guidance on mounting: for material thicknesses from 0.5 mm, four rivets Ø5 mm and two rivets Ø6 mm are specified; for material thicknesses from 2 mm, two sheet metal self-tapping screws Ø6.3 mm made of NIRO are recommended.

Functions and Equipment in Detail

The bracket features a double lug made of aluminium, enabling a secure and durable connection to the earthing conductor. The clamping area is designed for conductors with a diameter of 8 to 10 mm, allowing connection to standard earthing conductors. The screw for securing the double lug is an e M10 x 30 mm screw made of NIRO, which is corrosion-resistant and suitable for use in earthing systems. The connection can be made both longitudinally and transversely, enabling flexible mounting on various components.

Technology Explained Simply

The lightning current carrying capacity of the connection bracket is defined according to DIN EN 62561-1, with the exact classification specified in the test certificate. This means the component is suitable for use in lightning protection systems and meets the required electrical and mechanical specifications. The material thickness of 3 mm ensures sufficient mechanical stability to withstand mechanical stresses and thermal strains during current flow. The use of aluminium as the material for the bracket and the double lug ensures good electrical conductivity while being lightweight and corrosion-resistant.

Compatibility and Accessories

The connection bracket is compatible with earthing conductors in the diameter range of 8 to 10 mm. Mounting is done using blind rivets or drill screws, with the exact requirements for fastening materials specified in DIN EN 62305-3. The e M10 x 30 mm screw made of NIRO is already integrated and enables a secure connection to the double lug. The bracket is designed for use in systems according to DIN EN 62561-1, ensuring standardization and interoperability with other earthing components.

Mounting and Installation

Mounting is performed by fastening the bracket to the metallic surface using blind rivets or drill screws at the designated holes (Ø5.2 mm and Ø6.5 mm). The double lug is then connected to the earthing conductor using the e M10 x 30 mm screw. The connection direction can be either longitudinal or transverse, depending on installation requirements. The fastening materials must be selected according to the application guidelines in DIN EN 62305-3 to ensure the required mechanical and electrical connection.

Advantages in Operation

The connection bracket provides a reliable and durable connection between metallic components and the earthing system. The use of aluminium and NIRO materials ensures corrosion resistance and long service life. The flexible mounting (longitudinal/transverse) and compatibility with standard earthing conductors (Rd 8–10 mm) simplify installation. Compliance with the standard DIN EN 62561-1 ensures integration into standardized earthing systems and suitability for use in lightning protection installations.

General
Lug materialAl
Fixing[4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clampAl
Clamping range Rd8-10 mm
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 377200, EAN: 4013364136465

Questions & answers

What is the delivery time of DEHN 377200 ALZFDUL6.10B5.26.5L81AL connection lug Z-shape Al for Rd 8-10 mm?

The article DEHN 377200 ALZFDUL6.10B5.26.5L81AL connection lug Z-shape Al for Rd 8-10 mm is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 377200 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 377200 ALZFDUL6.10B5.26.5L81AL connection lug Z-shape Al for Rd 8-10 mm always at the best possible price. We can give you a discount of 2% on DEHN 377200 ALZFDUL6.10B5.26.5L81AL connection lug Z-shape Al for Rd 8-10 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of DEHN 377200 ALZFDUL6.10B5.26.5L81AL connection lug Z-shape Al for Rd 8-10 mm we can offer you a price of 4,91 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
