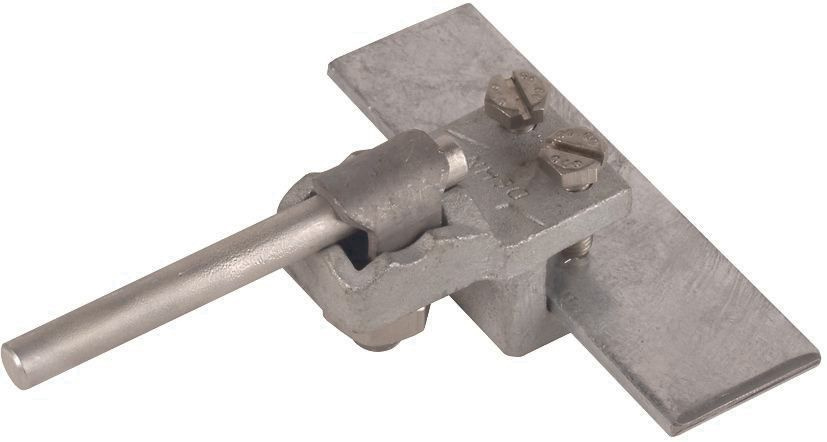

DEHN 370014 AK7.10KSVKBF112TGTZN connection clamp Fl 1–12 mm for Rd 7–10 mm

Your rating:
Average rating
product review for DEHN 370014 AK7.10KSVKBF112TGTZN connection clamp Fl 1–12 mm for Rd 7–10 mm
( 4.6 / 5 ) 7 ratings
DEHN 370014
This image may differ from the desired article.
16,53 EUR
( 19,67 EUR incl. VAT )
≈ £13.84  |  ≈ $18.17
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >10 pieces
1x DEHN 370014 AK7.10KSVKBF112TGTZN connection clamp Fl 1–12 mm for Rd 7–10 mm
Datasheet:file_download Download
Lieske Part No.:192933
Mfg Part No: 370014
UPC/EAN: 4013364096387
Weight:0.188 kg
Type:AK 7.10 KSV KBF1 12 TGTZN
Graduated prices net
From piecesPrice per pieces
1515,54 EUR
3014,55 EUR
7013,55 EUR
10012,56 EUR

Product information for DEHN 370014:

The connection clamp AK 7.10 KSV KBF1 12 TGTZN from DEHN is a component for grounding systems in lightning protection, specifically designed for connection to steel structures and steel sheets. It serves as a secure connection between grounding conductors and metallic support structures to ensure reliable equipotential bonding and safe lightning current discharge. The clamp is manufactured in accordance with DIN EN 62561-1, a standard that defines requirements for electrical conductivity, mechanical strength, and lightning current carrying capacity for grounding components. The design allows for connection with a KS screw in either longitudinal or transverse direction, providing flexibility during installation on various component geometries.

Applications

The clamp is used in the field of lightning protection and grounding technology, particularly in industrial facilities, buildings with metallic construction, or for connecting grounding conductors to steel beams. It is suitable for applications requiring a stable, durable, and corrosion-resistant connection. The DIN EN 62561-1 standard ensures that the component meets the requirements for lightning current carrying capacity necessary for safe operation in protection systems.

Functions and Features in Detail

The clamp features a clamping range of 1 to 12 mm, enabling connection with various sheet thicknesses. For round conductors (Rd), the clamping range is 7 to 10 mm, covering standard grounding conductors used in lightning protection. The clamp itself is made of TG/tZn material, which is galvanized steel, offering good corrosion resistance. The screw has dimensions M6 x 25 mm and is made of NIRO (stainless steel), ensuring high mechanical strength and resistance to corrosion. The screw enables a secure and durable connection that remains stable even under mechanical stress or vibration.

Technology Explained Simply

Lightning current carrying capacity is specified according to DIN EN 62561-1 with the designation “= / &”, with exact classification defined in the test certificate. This means the clamp is suitable for use in lightning protection systems where a specific current impulse (10/350 µs) must be diverted. The term “KS screw” refers to a screw specifically developed for use in grounding installations to ensure a secure and durable connection. The “longitudinal or transverse” design means the clamp can be mounted in either direction depending on installation conditions, facilitating adaptation to different component geometries.

Compatibility and Accessories

The clamp is designed for use with round conductors in the diameter range of 7 to 10 mm and can be mounted on steel structures with sheet thicknesses from 1 to 12 mm. It is part of DEHN’s connection clamp product family and can be combined with other components from the same family, such as cross or longitudinal connectors, to build complex grounding networks. The DIN EN 62561-1 standard ensures compatibility with other components within the same standard range.

Installation and Mounting

Installation is performed using the included KS screw M6 x 25 mm, which is screwed into the designated holes in the clamp. The screw is tightened using an appropriate tool (e.g., screwdriver or wrench), with the specified tightening torque as defined in the relevant installation manual or standard. The clamp can be mounted in either longitudinal or transverse orientation, depending on how best to achieve the connection on the steel structure. The connection must be secure and tight to ensure good electrical conductivity and mechanical stability.

Operational Advantages

The clamp provides a reliable and durable connection that meets the requirements of lightning protection technology. The use of galvanized steel (TG/tZn) and NIRO screws ensures high corrosion resistance, extending the component’s service life. The flexible mounting in longitudinal or transverse direction increases adaptability to different components. Conformity with DIN EN 62561-1 ensures the clamp can be used in professional grounding installations without requiring additional testing or approvals. Thus, the clamp is a standardized, trustworthy component for use in safety-critical installations.

General
Clamping range1-12 mm
Material of clampMCI/tZn
Clamping range Rd7-10 mm
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 370014, EAN: 4013364096387

Questions & answers

What is the delivery time of DEHN 370014 AK7.10KSVKBF112TGTZN connection clamp Fl 1–12 mm for Rd 7–10 mm?

The article DEHN 370014 AK7.10KSVKBF112TGTZN connection clamp Fl 1–12 mm for Rd 7–10 mm is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 370014 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 370014 AK7.10KSVKBF112TGTZN connection clamp Fl 1–12 mm for Rd 7–10 mm always at the best possible price. We can give you a discount of 2% on DEHN 370014 AK7.10KSVKBF112TGTZN connection clamp Fl 1–12 mm for Rd 7–10 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of DEHN 370014 AK7.10KSVKBF112TGTZN connection clamp Fl 1–12 mm for Rd 7–10 mm we can offer you a price of 15,54 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
