DEHN 365509 ASSA D6 L1000 6.10 CU V2A connection set for rope systems 16 mm² L 1000 mm

Your rating:
Average rating
product review for DEHN 365509 ASSA D6 L1000 6.10 CU V2A connection set for rope systems 16 mm² L 1000 mm
( 4.9 / 5 ) 7 ratings

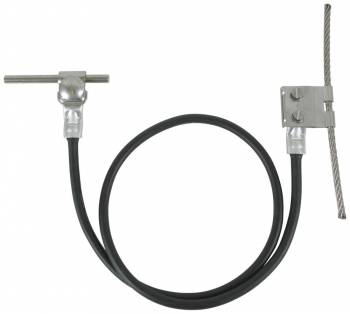

DEHN 365509
This image may differ from the desired article.
DEHN 365509DEHN 365509
64,22 EUR
( 76,42 EUR incl. VAT )
≈ £53.75  |  ≈ $70.58
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 365509 ASSA D6 L1000 6.10 CU V2A connection set for rope systems 16 mm² L 1000 mm
Datasheet:file_download Download
Lieske Part No.:982405
Mfg Part No: 365509
UPC/EAN: 4013364141773
Weight:0.335 kg
Type:ASSA D6 L1000 6.10 CU V2A
Graduated prices net
From piecesPrice per pieces
660,37 EUR
1256,51 EUR
2452,66 EUR
3648,81 EUR

Product information for DEHN 365509:

The DEHN connection set for rope safety system type ASSA D6 L1000 6.10 CU V2A is a product specifically developed for connecting rope safety systems on roofs to existing fall protection systems. It complies with the standard DIN EN 62561-1, which specifies requirements for electrical earthing systems for lightning protection and protection against electrical voltages in buildings. The set serves as a secure connecting element between a safety rope and the existing earthing system, ensuring continuous electrical conductivity. The construction is designed for use in roof and facade mounting, where reliable earthing of safety systems is required.

Applications
This connection set is primarily used in the field of roof and facade safety, particularly for the installation of rope safety systems that must be connected to existing earthing systems. It is suitable for installations where an electrical connection between the safety rope and the fall protection system is necessary to ensure worker safety during high-altitude work. The use is intended for buildings where earthing according to DIN EN 62561-1 is required, for example, in industrial or commercial buildings with increased lightning protection requirements.

Functions and equipment in detail
The set consists of a mounted connection bracket specifically designed for safety ropes with a diameter of 6 mm. This bracket enables a firm and secure fastening of the rope. Additionally, a clamp block is integrated, suitable for round wires with a diameter of 6 to 10 mm. This clamp block ensures a secure connection of the connection set to the existing earthing conductor. The construction guarantees a stable mechanical and electrical connection, meeting the requirements of the DIN EN 62561-1 standard.

Technology explained simply
The connection bracket is designed to securely hold the safety rope (D6 mm) while simultaneously enabling electrical conductivity. The clamp block ensures a firm connection with the earthing conductor, with a contact surface large enough to ensure low transition resistance. The materials are selected to resist corrosion and environmental influences, especially in outdoor applications. The designation CU V2A indicates that the set is made of copper (CU) and V2A steel (stainless steel), ensuring high mechanical strength and electrical conductivity.

Compatibility and accessories
The connection set is compatible with safety ropes with a diameter of 6 mm and earthing conductors with a round wire diameter of 6 to 10 mm. It is specifically designed for use in rope safety systems connected to existing fall protection systems. The connection is made via the mounted connection bracket and the clamp block, with no additional tools or components required. The use is in conjunction with other products that also comply with the DIN EN 62561-1 standard, ensuring a uniform earthing system.

Installation and mounting
Mounting is done by attaching the connection set to the existing fall protection system, with the connection bracket securely holding the safety rope. The clamp block is connected to the earthing conductor, ensuring a mechanically and electrically secure connection. Installation must follow the requirements of DIN EN 62561-1, including verification of electrical conductivity and transition resistance. It is recommended to have the installation performed by qualified specialists to ensure safety and functionality.

Advantages in operation
The connection set provides a reliable and durable connection between the safety rope and the earthing system. The use of copper and V2A steel ensures high corrosion resistance and electrical conductivity. Compliance with DIN EN 62561-1 guarantees conformity with applicable safety standards. The simple installation and robust construction reduce maintenance effort and increase the system's service life. The connection is suitable for outdoor use, as the materials withstand environmental influences.

General
Product typeConnection set for rope system
NormDIN EN 62561-1
Terminal lug for fuse wireD6 mm
Terminal block for round wire6-10 mm
MaterialCU V2A
Cross section16 mm²
Clamping range of connection lugØ6 mm
Rope structure7 x 7 / 7 x 19 mm
Terminal lug materialStSt
Clamping piece support Rd6-10 mm
Length1000 mm
Material (cable)Cu
Temperature range-40 °C ... +80 °C
Insulationrubber EM5 black


Product data sheet
Datasheet for DEHN 365509, EAN: 4013364141773

Questions & answers

What is the delivery time of DEHN 365509 ASSA D6 L1000 6.10 CU V2A connection set for rope systems 16 mm² L 1000 mm?

The article DEHN 365509 ASSA D6 L1000 6.10 CU V2A connection set for rope systems 16 mm² L 1000 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 365509 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 365509 ASSA D6 L1000 6.10 CU V2A connection set for rope systems 16 mm² L 1000 mm always at the best possible price. We can give you a discount of 2% on DEHN 365509 ASSA D6 L1000 6.10 CU V2A connection set for rope systems 16 mm² L 1000 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of DEHN 365509 ASSA D6 L1000 6.10 CU V2A connection set for rope systems 16 mm² L 1000 mm we can offer you a price of 60,37 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
