DEHN 318201 KS8.10FL30STTZN cross piece for Rd 8-10/Fl 30 Fl 30/30

Your rating:
Average rating
product review for DEHN 318201 KS8.10FL30STTZN cross piece for Rd 8-10/Fl 30 Fl 30/30
( 4.7 / 5 ) 12 ratings

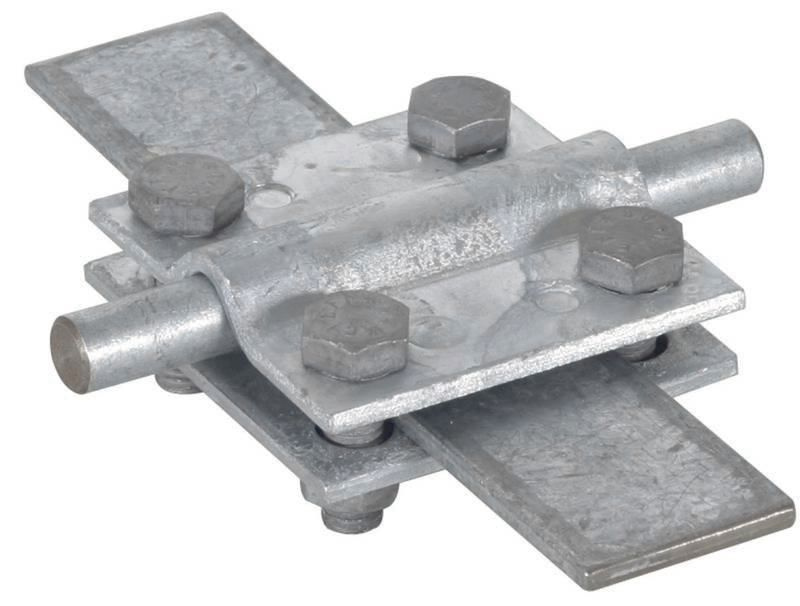

DEHN 318201
This image may differ from the desired article.
DEHN 318201DEHN 318201
9,31 EUR
( 11,08 EUR incl. VAT )
≈ £7.79  |  ≈ $10.23
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >10 pieces
1x DEHN 318201 KS8.10FL30STTZN cross piece for Rd 8-10/Fl 30 Fl 30/30
Datasheet:file_download Download
Lieske Part No.:102256
Mfg Part No: 318201
UPC/EAN: 4013364021464
Weight:0.25 kg
Type:KS 8.10 FL30 STTZN
Graduated prices net
From piecesPrice per pieces
258,68 EUR
508,05 EUR
1007,42 EUR
2506,80 EUR

Product information for DEHN 318201:

The DEHN cross connector type KS 8.10 FL30 STTZN is a connecting element for earthing and lightning protection systems, manufactured in accordance with the standard DIN EN 62561-1. It is designed for the secure and durable connection of round and flat conductors in the field of installation technology, particularly in above- and underground installations. The product is designed for use in electrical protection systems where a reliable electrical connection between conductors of different shapes and cross-sections is required. The design is without an intermediate plate, ensuring a direct mechanical and electrical connection between the conductors.

Applications
This cross connector is used in installations where round conductors with a diameter of 8 to 10 mm and flat conductors with a width of 30 mm need to be connected. It is suitable for applications in the field of lightning protection and earthing technology, particularly in buildings, industrial plants, or for connecting earthing systems with other metallic installations. The product can be used both outdoors and indoors, with mechanical strength and electrical conductivity of the connection being the primary focus.

Functions and Equipment in Detail
The cross connector features a construction without an intermediate plate, enabling direct contact surface between the connected conductors. Fixation is achieved using M8 screws, ensuring a secure and durable connection. The screws are integrated into the product and serve to mechanically secure the conductors. The connection is designed to ensure high electrical conductivity, which is essential for the effectiveness of earthing and lightning protection systems. The material selection and manufacturing comply with the requirements of DIN EN 62561-1, which applies to metallic conductors and connecting elements in lightning protection and earthing systems.

Technology Explained Simply
The standard DIN EN 62561-1 specifies requirements for metallic conductors and connecting elements for lightning protection and earthing systems. The DEHN cross connector complies with this standard, meaning it is suitable for use in protection systems requiring high reliability and electrical conductivity. The connection without an intermediate plate ensures that the electrical contact surface lies directly between the conductors, minimizing resistance values. The M8 screws enable mechanically stable fixation, which remains intact even under mechanical stress or thermal expansion.

Compatibility and Accessories
The cross connector is specifically designed for connecting round conductors with a diameter of 8 to 10 mm and flat conductors with a width of 30 mm. It is not intended for other cross-sections or shapes. The connection is made directly via the integrated M8 screws, with no additional fastening elements required.

Installation and Mounting
Mounting is performed by tightening the M8 screws, which are already integrated into the cross connector. The conductors are inserted into the designated openings and secured using the screws. Fixation can be done manually or with an appropriate screwdriver. The connection must be executed to ensure a firm mechanical and electrical bond.

Operational Advantages
Using the DEHN cross connector ensures a reliable and durable connection between round and flat conductors, which is crucial for the function of earthing and lightning protection systems. The direct contact surface without an intermediate plate minimizes electrical resistance and increases the efficiency of the protection system. The mechanical stability provided by the M8 screws ensures the connection remains intact even under load. Compliance with DIN EN 62561-1 guarantees suitability for use in professional installations.

General
NormDIN EN 62561-1
Conductor typeround and flat conductors
Round conductor diameter8-10 mm
Flat conductor width30 mm
Screw sizeM8
ModelWithout intermediate plate
Material of clampSt/tZn
Clamping range Rd / Fl8-10 / 30 mm
Clamping range Fl / Fl30 / 30 mm
Dimensions60 x 60 x 3 mm
StandardEN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)14 kA


Product data sheet
Datasheet for DEHN 318201, EAN: 4013364021464

Questions & answers

What is the delivery time of DEHN 318201 KS8.10FL30STTZN cross piece for Rd 8-10/Fl 30 Fl 30/30?

The article DEHN 318201 KS8.10FL30STTZN cross piece for Rd 8-10/Fl 30 Fl 30/30 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 318201 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 318201 KS8.10FL30STTZN cross piece for Rd 8-10/Fl 30 Fl 30/30 always at the best possible price. We can give you a discount of 2% on DEHN 318201 KS8.10FL30STTZN cross piece for Rd 8-10/Fl 30 Fl 30/30 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of DEHN 318201 KS8.10FL30STTZN cross piece for Rd 8-10/Fl 30 Fl 30/30 we can offer you a price of 8,68 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
