DEHN 308131 DC BK 8 RD10 STBLANK clip reinforcement clamp St/blank

Your rating:
Average rating
product review for DEHN 308131 DC BK 8 RD10 STBLANK clip reinforcement clamp St/blank
( 4.4 / 5 ) 18 ratings

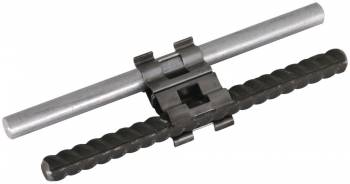

DEHN 308131
This image may differ from the desired article.
3,89 EUR
( 4,63 EUR incl. VAT )
≈ £3.26  |  ≈ $4.28
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >100 pieces
1x DEHN 308131 DC BK 8 RD10 STBLANK clip reinforcement clamp St/blank
Datasheet:file_download Download
Lieske Part No.:354817
Mfg Part No: 308131
UPC/EAN: 4013364288881
Weight:0.018 kg
Type:DC BK 8 RD10 STBLANK
Graduated prices net
From piecesPrice per pieces
503,69 EUR
1003,48 EUR
2503,28 EUR
5003,07 EUR

Product information for DEHN 308131:

The DEHN reinforcement clamp type DC BK 8 RD10 STBLANK is a product of the DEHNclip product family, developed for secure and tool-free connection of earthing materials with reinforced concrete mesh or reinforcement bodies in construction. It serves as a parallel connector between round conductors and reinforcements and is specifically designed for use in earthing systems, particularly to meet the requirements of DIN 18014, which stipulates that the equipotential bonding conductor or foundation earth must be connected to the foundation slab reinforcement every 2 meters. The clamp is made of steel (St/blank) and complies with the standard DIN EN 62561-1, which applies to lightning protection materials.

Reinforcement clamp enables quick and easy installation without tools, thereby increasing efficiency in construction operations. The clamp is designed for use with round conductors with a nominal diameter of 10 mm and reinforced concrete mesh with a nominal diameter of 8 to 9 mm. The material thickness is 1 mm, ensuring sufficient mechanical stability. The clamp is designed for a short-circuit current of 2.7 kA (AC 50 Hz / DC, 1 s, ≤ 300 °C), ensuring electrical load capacity under transient conditions.

Lightning current carrying capacity is a central feature of the clamp. It was tested in accordance with DIN EN 62561-1 with a lightning current carrying capacity of 50 kA (10/350 µs), meaning it can maintain the connection even under extreme lightning current conditions. This testing was carried out under TÜV approval, confirming the reliability and safety of the product. The exact assignment of the lightning current carrying capacity is documented in the test certificate.

Technology explained simply shows that the clamp is designed as a parallel connector, with arrangement possible in parallel (+) or crosswise (II). The tool-free installation is achieved through a mechanical locking mechanism, creating a firm and durable connection between the round conductor and the reinforcement. The clamp is compact and lightweight, with a net weight of 18.48 g per piece, facilitating handling and storage.

Compatibility and accessories refers to use with round conductors and reinforced concrete mesh within the specified diameter range. The clamp is specifically designed for use in earthing systems that must be connected to reinforced concrete mesh.

Installation and mounting is tool-free, reducing mounting time and optimizing work processes in construction. The clamp is directly placed onto the round conductor and reinforcement and locked, creating a secure connection. The arrangement is either parallel or crosswise, depending on construction planning and requirements.

Operational advantages include fast, tool-free installation, high reliability under lightning current conditions, and compliance with DIN EN 62561-1. The clamp reduces installation time and minimizes error sources that can occur with manual connections using screws or other methods. The use of DEHNclip ensures a durable and secure earthing connection that meets the requirements of electrical engineering and lightning protection.

General
MaterialSt/bare
Clamping range Rd* / Rd8-9 / 10 mm
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)2.7 kA
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 308131, EAN: 4013364288881

Questions & answers

What is the delivery time of DEHN 308131 DC BK 8 RD10 STBLANK clip reinforcement clamp St/blank?

The article DEHN 308131 DC BK 8 RD10 STBLANK clip reinforcement clamp St/blank is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 308131 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 308131 DC BK 8 RD10 STBLANK clip reinforcement clamp St/blank always at the best possible price. We can give you a discount of 2% on DEHN 308131 DC BK 8 RD10 STBLANK clip reinforcement clamp St/blank if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of DEHN 308131 DC BK 8 RD10 STBLANK clip reinforcement clamp St/blank we can offer you a price of 3,69 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
