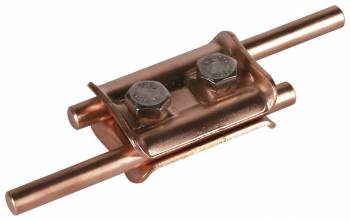

DEHN 307007 PV7.10SKM8X20CU parallel connector Cu for Rd 7–10 mm
|
14,44 EUR |
|||||||||||
|
( 17,18 EUR incl. VAT ) ≈ £12.09 | ≈ $15.87 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 892444 | ||||||||||
| Mfg Part No: | 307007 | ||||||||||
| UPC/EAN: | 4013364024168 | ||||||||||
| Weight: | 0.104 kg | ||||||||||
| Type: | PV 7.10 SKM8X20 CU | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for DEHN 307007:
Parallel connector enables the parallel connection of two conductors, thereby increasing the total cross-section and reducing electrical resistance. This is particularly relevant in earthing systems, where a low impedance is required to safely dissipate lightning currents. The design with two screws ensures an even and secure connection of both conductors, guaranteeing a reliable electrical contact.
Clamping range and connection technology are designed for use with round wires (Rd) with a diameter of 7 to 10 mm, as well as with stranded conductors or cables with a cross-section of 16 to 70 mm². The screws have a diameter of M8 and a length of 20 mm, with the material and nut made of stainless steel (NIRO) to minimize corrosion and mechanical wear. The screw connection allows for a secure and durable fastening that remains stable even under mechanical stress or vibration.
Lightning current capacity is a central feature for use in lightning protection systems. The connector is designed for the dissipation of lightning currents, with the exact assignment of capacity based on the test certificate. The standard DIN EN 62561-1 defines requirements for electrical and mechanical performance, including the ability to safely transmit high current impulses such as those occurring during lightning discharges. The notation “= * )” in the datasheet refers to the need to consult the test certificate for the exact assignment of lightning current capacity.
Compatibility and accessories include use with other components of the DEHN product family, particularly in earthing and equipotential bonding systems. The parallel connector is designed for connecting conductors of the same diameter, and can be used with other connector types such as T-connectors or pipe clamps in more complex installations. The connection technology is designed to be installed using standard tools such as a screwdriver or wrench (SW13).
Mounting and installation typically take place on fixed supports or near earthing points where two conductors are laid in parallel. The screws allow for a mechanically secure fastening, and the connection should be checked after installation for firm and correct clamping. Use in outdoor installations is possible, as the materials (copper, stainless steel) are corrosion-resistant, although ambient temperature and mechanical stress should be considered during planning.
Operational advantages lie in the reliability and longevity of the connection. The use of copper and stainless steel ensures high electrical conductivity and mechanical stability. The construction with two screws ensures even load distribution and minimizes the risk of contact loss. Compliance with the standard DIN EN 62561-1 ensures suitability for use in lightning protection systems and meets requirements for electrical safety.
The parallel connector PV 7.10 SKM8X20 CU is therefore a specified component for the professional installation of earthing and lightning protection systems, designed for the secure and durable connection of conductors of the same diameter. The materials and construction are tailored to the requirements of electrical safety, with norm compliance and lightning current capacity being key features.
| General | |
| Material of clamp | Cu |
| Clamping range Rd / Rd | 7-10 mm |
| Clamping range (stranded / cable) | 16-95 mm² |
| Standard | EN 62561-1 |
Questions & answers
What is the delivery time of DEHN 307007 PV7.10SKM8X20CU parallel connector Cu for Rd 7–10 mm?
The article DEHN 307007 PV7.10SKM8X20CU parallel connector Cu for Rd 7–10 mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 307007 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you DEHN 307007 PV7.10SKM8X20CU parallel connector Cu for Rd 7–10 mm always at the best possible price. We can give you a discount of 2% on DEHN 307007 PV7.10SKM8X20CU parallel connector Cu for Rd 7–10 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of DEHN 307007 PV7.10SKM8X20CU parallel connector Cu for Rd 7–10 mm we can offer you a price of 13,57 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
