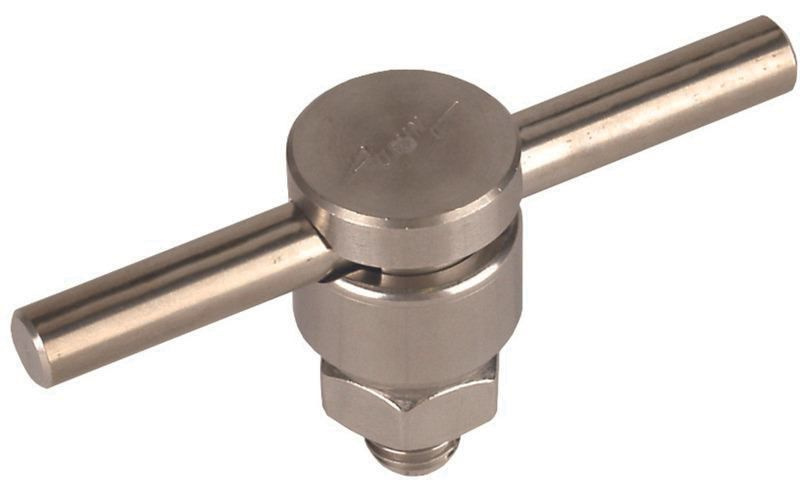

DEHN 301009 KSV6.10V2A KS connector NIRO for Rd 7–10 mm 1-piece

Your rating:
Average rating
product review for DEHN 301009 KSV6.10V2A KS connector NIRO for Rd 7–10 mm 1-piece
( 4.5 / 5 ) 27 ratings
DEHN 301009
This image may differ from the desired article.
DEHN 301009DEHN 301009
12,54 EUR
( 14,92 EUR incl. VAT )
≈ £10.45  |  ≈ $13.76
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >50 pieces
1x DEHN 301009 KSV6.10V2A KS connector NIRO for Rd 7–10 mm 1-piece
Datasheet:file_download Download
Lieske Part No.:287741
Mfg Part No: 301009
UPC/EAN: 4013364081284
Weight:0.061 kg
Type:KSV 6.10 V2A
Graduated prices net
From piecesPrice per pieces
1511,79 EUR
3011,04 EUR
7010,28 EUR
1009,53 EUR

Product information for DEHN 301009:

The KlemmSchrauben-Verbinder KSV 6.10 V2A from DEHN is a single-piece, lightning current-capable connection clamp connector designed in accordance with DIN EN 62561-1 for use in lightning protection systems. It is intended for the secure and permanent connection of round conductors with a diameter of 7 to 10 mm to flat profiles, rainwater pipe brackets, or other components of the lightning protection system. The connector is made of NIRO (V2A steel), ensuring high corrosion resistance and mechanical strength. It is equipped with a screw and nut M10, enabling a firm and reliable connection.

Lightning protection systems require reliable connections to safely divert lightning current. The KSV 6.10 V2A serves as a KlemmSchrauben-Verbinder, specifically designed for connecting round conductors to flat or round metallic components. The single-piece construction ensures easy installation and reduces the number of required parts, speeding up installation and reducing the risk of errors.

Applications include connecting lightning protection conductors to metallic building parts such as gutters, rainwater pipes, flat profiles, or other metallic structures. Use in outdoor environments is suitable due to the NIRO design, as V2A steel is resistant to weather influences such as moisture and rain. The connection is made via mechanical clamping and screw connection, ensuring permanent electrical conductivity.

Functions and equipment in detail include the integrated screw and nut M10, ensuring secure fastening. The clamping surface is dimensioned to securely enclose round conductors with a diameter of 7 to 10 mm. The single-piece design reduces installation time and increases reliability, as no additional parts such as extra clamping jaws or brackets are required. The connection is designed for use in lightning protection systems, where DIN EN 62561-1 defines the requirements for electrical conductivity and mechanical strength.

Technology explained simply means that the connector not only creates a mechanical connection but also remains electrically conductive, even under high current loads such as during a lightning strike. The NIRO design (V2A steel) provides high strength and corrosion resistance, which is particularly advantageous in damp or industrial environments. The M10 screw enables a firm connection that does not loosen under mechanical stress or vibration.

Compatibility and accessories refer to use with round conductors in the diameter range of 7 to 10 mm. The connector is suitable for mounting on flat profiles, rainwater pipe brackets, or other metallic components of the lightning protection system.

Installation and mounting are carried out by simply inserting the round conductor into the clamping opening and then tightening the M10 screw with the nut. The single-piece construction requires no additional mounting aids or tools, except for a suitable screwdriver or wrench. The connection must be tight and secure to ensure reliable electrical conductivity.

Operational advantages include easy installation, high reliability, and long service life due to the NIRO design. The connection remains stable even under long-term load and weather influences, increasing maintenance-free operation. Compliance with DIN EN 62561-1 ensures that the connector meets the requirements for lightning protection systems.

Lightning protection systems are critical safety systems requiring reliable and permanent connections between all components. The KSV 6.10 V2A meets these requirements through its robust construction and use of V2A steel. The KlemmSchrauben-Verbinder technology enables quick and secure installation, increasing installation efficiency. The standard DIN EN 62561-1 is the fundamental specification for the quality and function of lightning protection components, which is complied with here. The NIRO design ensures high corrosion resistance, which is particularly important in outdoor applications.

Applications include connecting lightning protection conductors to metallic building parts such as gutters, rainwater pipes, flat profiles, or other metallic structures. Use in outdoor environments is suitable due to the NIRO design, as V2A steel is resistant to weather influences such as moisture and rain. The connection is made via mechanical clamping and screw connection, ensuring permanent electrical conductivity.

Functions and equipment in detail include the integrated screw and nut M10, ensuring secure fastening. The clamping surface is dimensioned to securely enclose round conductors with a diameter of 7 to 10 mm. The single-piece design reduces installation time and increases reliability, as no additional parts such as extra clamping jaws or brackets are required. The connection is designed for use in lightning protection systems, where DIN EN 62561-1 defines the requirements for electrical conductivity and mechanical strength.

Technology explained simply means that the connector not only creates a mechanical connection but also remains electrically conductive, even under high current loads such as during a lightning strike. The NIRO design (V2A steel) provides high strength and corrosion resistance, which is particularly advantageous in damp or industrial environments. The M10 screw enables a firm connection that does not loosen under mechanical stress or vibration.

Compatibility and accessories refer to use with round conductors in the diameter range of 7 to 10 mm. The connector is suitable for mounting on flat profiles, rainwater pipe brackets, or other metallic components of the lightning protection system.

Installation and mounting are carried out by simply inserting the round conductor into the clamping opening and then tightening the M10 screw with the nut. The single-piece construction requires no additional mounting aids or tools, except for a suitable screwdriver or wrench. The connection must be tight and secure to ensure reliable electrical conductivity.

Operational advantages include easy installation, high reliability, and long service life due to the NIRO design. The connection remains stable even under long-term load and weather influences, increasing maintenance-free operation. Compliance with DIN EN 62561-1 ensures that the connector meets the requirements for lightning protection systems.

General
Degree of protectionNIRO
Screw sizeM10
Round conductor diameter7-10 mm
NormDIN EN 62561-1
Modelmonoblock
Material of clamping screwStSt
Material of clampStSt
Clamping range Rd6-10 mm
Connection (solid / stranded)25-70 mm²
StandardEN 62561-1


Product data sheet
Datasheet for DEHN 301009, EAN: 4013364081284

Questions & answers

What is the delivery time of DEHN 301009 KSV6.10V2A KS connector NIRO for Rd 7–10 mm 1-piece?

The article DEHN 301009 KSV6.10V2A KS connector NIRO for Rd 7–10 mm 1-piece is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 301009 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 301009 KSV6.10V2A KS connector NIRO for Rd 7–10 mm 1-piece always at the best possible price. We can give you a discount of 2% on DEHN 301009 KSV6.10V2A KS connector NIRO for Rd 7–10 mm 1-piece if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of DEHN 301009 KSV6.10V2A KS connector NIRO for Rd 7–10 mm 1-piece we can offer you a price of 11,79 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
