DEHN 253015 DLHFB8LO100X100X70 roof conductor holder FB 1-way holder Rd8

Your rating:
Average rating
product review for DEHN 253015 DLHFB8LO100X100X70 roof conductor holder FB 1-way holder Rd8
( 4.6 / 5 ) 31 ratings
DEHN 253015
This image may differ from the desired article.
DEHN 253015DEHN 253015
3,70 EUR
( 4,40 EUR incl. VAT )
≈ £3.10  |  ≈ $4.07
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >500 pieces
1x DEHN 253015 DLHFB8LO100X100X70 roof conductor holder FB 1-way holder Rd8
Datasheet:file_download Download
Lieske Part No.:259936
Mfg Part No: 253015
UPC/EAN: 4013364022201
Weight:1.05 kg
Type:DLH FB 8 LO 100X100X70
Graduated prices net
From piecesPrice per pieces
503,31 EUR
1002,92 EUR
2502,53 EUR
5002,15 EUR

Product information for DEHN 253015:

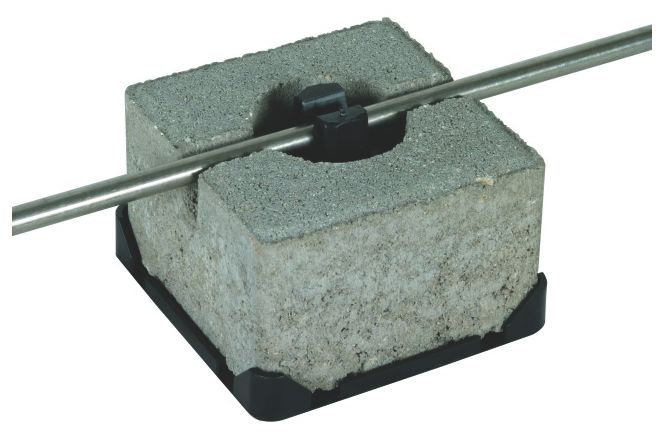

The DLH FB 8 LO 100X100X70 roof conductor holder from DEHN is a two-part fastening element for round conductors or strips (with adapter) on flat roofs. It is designed for the secure and durable fixation of lightning protection conductors in outdoor environments and is specifically designed for loose conductor routing. The product consists of a conductor holder made of weather-resistant thermoplastic HD-PE and a frost-resistant concrete block (C35/45) that is integrated into the holder. The design is square and open, enabling easy installation and adaptation to the respective roof structure.

Applications

The conductor holder is designed for use on flat roofs where stable fastening of lightning protection conductors is required. It is particularly suitable for round conductors with a diameter of 8 mm. The combination of plastic and concrete components ensures high mechanical stability and weather resistance, even under extreme environmental conditions. The frost-resistant concrete block (C35/45) complies with EN 1338 for paving stones, and the tested frost-thaw cycle resistance according to EN 1340 ensures a long service life even under frequent temperature fluctuations.

Functions and Equipment in Detail

The conductor holder features a single conductor holder type FB, enabling loose conductor routing. The conductor acceptance is 8 mm, ensuring secure fastening of standard lightning protection conductors. The plastic component is UV-stabilized and halogen-free, increasing resistance to sunlight and environmental compatibility. The separate recyclability of the concrete block and the lower part supports sustainable disposal practices.

Technology Explained Simply

The conductor holder consists of two components: the upper plastic part that holds the conductor and the lower concrete block that secures the entire structure to the roof. The HD-PE material of the conductor holder is robust, resistant to weather influences, and offers high mechanical strength. The concrete block (C35/45) provides sufficient weight (1 kg) and stable anchoring on the roof surface. The open, square shape facilitates installation and allows flexible adaptation to different roof structures.

Compatibility and Accessories

The roof conductor holder is designed for fastening round conductors with a diameter of 8 mm. The DLH FB product family is part of a comprehensive system of roof conductor holders for flat roofs, where individual models can be selected based on conductor diameter and requirements.

Installation and Mounting

Installation is carried out by placing the conductor holder onto the roof surface, where the concrete block provides the necessary stability. The conductor is inserted into the loose holder and secured. The open design allows for easy and quick installation without additional tools. The fastening is achieved by the self-weight of the concrete block, making additional anchoring in the roof material unnecessary.

Operational Advantages

The roof conductor holder provides a reliable and durable fastening solution for lightning protection conductors on flat roofs. The combination of UV-stabilized plastic and frost-resistant concrete ensures high weather resistance. The separate recyclability of the components supports environmentally friendly disposal. The loose conductor routing allows flexible adaptation to the respective roof structure and simplifies installation. The product is protected under German patent No. 32 24 332.4 and meets requirements for component protection.

General
Conductor routingloose
Material of conductor holderHDPE thermoplastic
Colour of conductor holderblack ●
Conductor support Rd8 mm
Weight1 kg
Blockconcrete (C35/45)
Dimensions100 x 100 x 70 mm


Product data sheet
Datasheet for DEHN 253015, EAN: 4013364022201
