DEHN 204937 DLHFS8H36L170GRV2A roof conductor holder FLEXIsnap H36 mm Rd8 mm

Your rating:
Average rating
product review for DEHN 204937 DLHFS8H36L170GRV2A roof conductor holder FLEXIsnap H36 mm Rd8 mm
( 5 / 5 ) 1 ratings

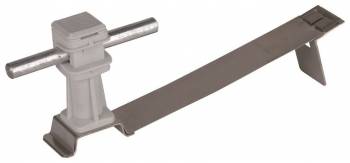

DEHN 204937
This image may differ from the desired article.
DEHN 204937DEHN 204937
6,08 EUR
( 7,24 EUR incl. VAT )
≈ £5.09  |  ≈ $6.68
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 204937 DLHFS8H36L170GRV2A roof conductor holder FLEXIsnap H36 mm Rd8 mm
Datasheet:file_download Download
Lieske Part No.:1982984
Mfg Part No: 204937
UPC/EAN: 4013364029941
Weight:0.046 kg
Type:DLH FS 8 H36 L170 GR V2A
Graduated prices net
From piecesPrice per pieces
255,72 EUR
505,35 EUR
1004,99 EUR
2504,62 EUR

Product information for DEHN 204937:

The Dachleitungshalter FLEXIsnap type DLH FS 8 H36 L170 GR V2A from DEHN is designed for secure mounting of capture and down conductors on roof surfaces. It is specifically designed for installation on roofs with tiles or slate, where flexible adaptation to the profile grooves is required. The holder consists of an angled, flexible base strip made of thin stainless steel (0.3 mm thickness), which can be shaped to fit the irregularities of roof grooves. Attached to this strip is a DEHNsnap conductor holder with a height of 16 mm, enabling loose conductor guidance. The conductor holder is made of weather-resistant plastic, UV-stabilized and halogen-free, ensuring long service life even under exposure to sunlight and weather influences.

Applications
This roof conductor holder is intended for use in lightning protection systems, particularly for securing down conductors and capture conductors on sloped roof surfaces. It is especially suitable for roofs with tiles or slate, where flexible adaptation to the profile grooves is necessary. The design enables secure and durable fixation of conductors, preventing damage from mechanical stress or weather influences.

Functions and Features in Detail
The flexible base strip made of stainless steel (0.3 mm) allows precise adaptation to the profile grooves of roof tiles or slate. This ensures secure and aesthetically pleasing installation without requiring additional fastening elements. The integrated DEHNsnap conductor holder with a height of 16 mm provides loose conductor guidance, allowing freedom of movement during thermal expansion. The materials are selected to ensure long-term resistance to UV radiation and weather influences.

Technology Explained Simply
The use of thin stainless steel (0.3 mm) for the base strip enables flexible shaping to fit roof grooves, allowing secure mounting even on irregular or curved surfaces. The loose conductor guidance provided by the DEHNsnap holder prevents tension in the conductor that could result from temperature changes or mechanical stress. The UV-stabilized, halogen-free plastic material of the conductor holder ensures high resistance to sunlight and prevents the release of harmful substances at high temperatures.

Compatibility and Accessories
The roof conductor holder is designed for use with capture and down conductors in lightning protection systems. It is compatible with standard down conductors and is used in conjunction with other components of the DEHN lightning protection system. The exact installation depends on the roof construction and the requirements of the specific lightning protection plan.

Installation and Mounting
Installation is performed by shaping the flexible base strip to fit the grooves of roof tiles or slate. The down conductor is then placed into the DEHNsnap conductor holder. Fixation is achieved by mechanically anchoring the base strip into the roof material, with the exact mounting method depending on the roof construction. No additional fastening elements are required, as the base strip itself provides the anchoring.

Operational Advantages
The roof conductor holder provides secure and durable fixation of down conductors, remaining stable even under long-term exposure to weather influences and temperature fluctuations. The flexible base strip enables adaptable installation on various roof profiles, achieving an aesthetically pleasing and functional integration into the overall roof system. The materials ensure high service life and low maintenance requirements.

General
Cable holderDEHNsnap Height 16 mm
Cable routingLoose
Plastic materialweather resistant, UV stabilised, halogen-free
ApplicationMounting of lightning arresters and down conductors on roof surfaces
Constructionangled flexible base strut
Material of roof conductor holderStSt
Length of brace170 mm
Height of conductor holder (h1)36 mm
Material of conductor holderplastic
Colour of conductor holdergrey ●
Conductor support Rd8 mm


Product data sheet
Datasheet for DEHN 204937, EAN: 4013364029941

Questions & answers

What is the delivery time of DEHN 204937 DLHFS8H36L170GRV2A roof conductor holder FLEXIsnap H36 mm Rd8 mm?

The article DEHN 204937 DLHFS8H36L170GRV2A roof conductor holder FLEXIsnap H36 mm Rd8 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 204937 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 204937 DLHFS8H36L170GRV2A roof conductor holder FLEXIsnap H36 mm Rd8 mm always at the best possible price. We can give you a discount of 2% on DEHN 204937 DLHFS8H36L170GRV2A roof conductor holder FLEXIsnap H36 mm Rd8 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of DEHN 204937 DLHFS8H36L170GRV2A roof conductor holder FLEXIsnap H36 mm Rd8 mm we can offer you a price of 5,72 EUR per piece. The more you buy, the cheaper the article will be.
