DEHN 103211 FSM16101500AL capture rod M16 L1500 mm AlMgSi F22 tapered a. 10 mm

Your rating:
Average rating
product review for DEHN 103211 FSM16101500AL capture rod M16 L1500 mm AlMgSi F22 tapered a. 10 mm
( 4.5 / 5 ) 19 ratings

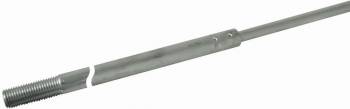

DEHN 103211
This image may differ from the desired article.
DEHN 103211DEHN 103211
31,25 EUR
( 37,19 EUR incl. VAT )
≈ £26.16  |  ≈ $34.34
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 103211 FSM16101500AL capture rod M16 L1500 mm AlMgSi F22 tapered a. 10 mm
Datasheet:file_download Download
Lieske Part No.:929305
Mfg Part No: 103211
UPC/EAN: 4013364078529
Weight:0.48 kg
Type:FS M16 10 1500 AL
Graduated prices net
From piecesPrice per pieces
1029,38 EUR
2527,50 EUR
5025,63 EUR
7523,75 EUR

Product information for DEHN 103211:

The DEHN lightning rod type FS M16 10 1500 AL is a lightning protection component for roof-mounted structures, chimneys and similar constructions. It serves as a lightning rod within the lightning protection system and is specifically designed for mounting on concrete plinths with a mass of 17 kg. The rod features an M16 thread and a total length of 1500 mm, with tapering over a length of 1000 mm. The material is AlMgSi with a cross-section of 16 mm², ensuring high mechanical strength and good electrical conductivity. The lightning rod is designed for outdoor use and is supplied with a thread adapter enabling fixation to concrete plinths.

Applications

The lightning rod is primarily intended for protecting roof-mounted structures, chimneys and other elevated structures on roofs. It is used as part of a complete lightning protection system to reduce the likelihood of a direct lightning strike on the structure to be protected. The use on concrete plinths with a minimum mass of 17 kg ensures stable fixation and prevents displacement or tipping of the rod under external forces.

Functions and Equipment in Detail

The rod features a tapered shape, with tapering over a length of 1000 mm. This design facilitates better integration into the overall system and enables optimal current dissipation in the event of a lightning strike. The M16 thread allows for secure and standardized mounting. The delivery includes the lightning rod and a thread adapter specifically designed for mounting on concrete plinths. The AlMgSi material composition offers high corrosion resistance and is suitable for outdoor use.

Technology Explained Simply

The lightning rod is part of the external lightning protection system and serves as a point of reception and conduction for lightning currents. In the event of a direct lightning strike, the current is conducted through the rod into the grounding system. The tapering of the rod ensures even current distribution and minimizes the risk of thermal or mechanical damage. The AlMgSi material is an aluminium alloy with high mechanical and electrical properties, suitable for use in lightning protection technology. The M16 thread connection enables secure mounting and is compatible with the thread adapter.

Compatibility and Accessories

The lightning rod is specifically designed for concrete plinths with a minimum mass of 17 kg. The thread adapter included in the delivery enables fixation to these plinths. The rod is part of a comprehensive lightning protection system and must be combined with other components such as conductors, grounding elements and grounding cables to ensure complete protection. Compatibility with other DEHN products is guaranteed, particularly with components designed for mounting on concrete plinths.

Installation and Mounting

Installation is carried out by securing the lightning rod to a concrete plinth with a mass of at least 17 kg. The thread adapter is used for this purpose to fix the rod securely. Mounting is done via the M16 thread, with the rod positioned vertically relative to the roof surface. The tapering of the rod must point upwards to ensure optimal functionality. Installation should be performed by a qualified specialist who complies with lightning protection standards.

Operational Advantages

The lightning rod provides reliable protection for roof-mounted structures and chimneys. The tapering ensures even current distribution and reduces the risk of damage. The AlMgSi material is corrosion-resistant and suitable for long-term outdoor use. Fixation to concrete plinths with a minimum mass of 17 kg ensures stable installation. The integrated M16 thread connection enables simple and secure installation. The lightning rod is a proven component in lightning protection systems and is frequently used in practice.

General
Taper1000 mm
ThreadM16
MaterialAlMgSi
Cross section16 mm²
MountingThread insert
Application rangeroof-mounted installations, chimneys
Concrete base mass17 kg
Total length (l1)1500 mm
Diameter Ø16 / 10 mm
TypeM16
StandardEN 62561-2


Product data sheet
Datasheet for DEHN 103211, EAN: 4013364078529

Questions & answers

What is the delivery time of DEHN 103211 FSM16101500AL capture rod M16 L1500 mm AlMgSi F22 tapered a. 10 mm?

The article DEHN 103211 FSM16101500AL capture rod M16 L1500 mm AlMgSi F22 tapered a. 10 mm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 103211 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 103211 FSM16101500AL capture rod M16 L1500 mm AlMgSi F22 tapered a. 10 mm always at the best possible price. We can give you a discount of 2% on DEHN 103211 FSM16101500AL capture rod M16 L1500 mm AlMgSi F22 tapered a. 10 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of DEHN 103211 FSM16101500AL capture rod M16 L1500 mm AlMgSi F22 tapered a. 10 mm we can offer you a price of 29,38 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
