DEHN 103124 TBM 9M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation

Your rating:
Average rating
product review for DEHN 103124 TBM 9M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation
( 4.7 / 5 ) 3 ratings
DEHN 103124
This image may differ from the desired article.
DEHN 103124DEHN 103124
2.566,04 EUR
( 3.053,59 EUR incl. VAT )
≈ £2,137.51  |  ≈ $2,814.95
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x DEHN 103124 TBM 9M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation
Datasheet:file_download Download
Lieske Part No.:571384
Mfg Part No: 103124
UPC/EAN: 4013364112742
Weight:37.6 kg
Type:TBM 9M SCFU STTZN AL
Graduated prices net
From piecesPrice per pieces
22.450,57 EUR
42.335,10 EUR
62.219,62 EUR
82.104,15 EUR

Product information for DEHN 103124:

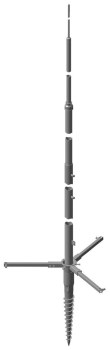

The DEHN Tele-lightning protection mast type TBM 9M SCFU STTZN AL is a lightning protection system specifically developed for use in special installations such as biogas or photovoltaic plants on open areas. It serves to protect against direct lightning strikes and is mounted using a screw foundation, thus eliminating the need for extensive excavation or foundation work. The construction is designed for a maximum gust wind speed of 159 km/h, in accordance with Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA), ensuring stable fixation under extreme weather conditions. The total height of the mast is 9000 mm above floor level, providing sufficient lightning protection coverage.

Applications
This lightning protection mast is primarily intended for use in open-area installations, particularly in renewable energy technology. Typical applications include photovoltaic plants installed on open areas, as well as biogas plants, which due to their size and location are exposed to an increased risk of lightning strikes. The construction is designed to be securely anchored in various soil types, including natural ground, without requiring additional foundation work.

Functions and Equipment in Detail

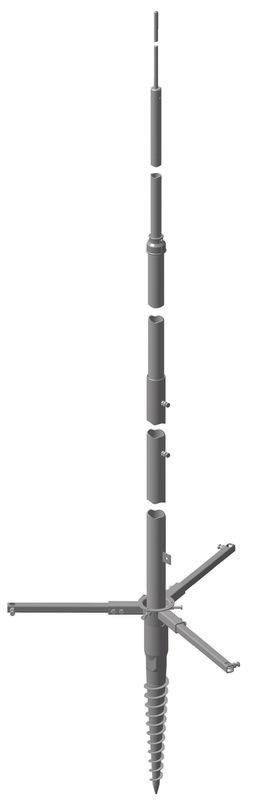

The mast consists of a metallic tube fixed into a screw foundation. The screw foundation is directly screwed into the ground, enabling quick and tool-free installation. For additional stabilization, the foundation is secured with deep earth electrodes, increasing mechanical strength. The entire construction is tested in accordance with DIN EN 62561-(1+2), a standard that specifies requirements for lightning protection systems for buildings and installations. The mast is manufactured at a height of 9000 mm above floor level, ensuring sufficient lightning protection coverage for the respective installation.

Technology Explained Simply
The technology of the lightning protection mast is based on the principle of lightning diversion: the mast acts as a reception and diversion point for direct lightning strikes. Due to its height above the protected object, a protection zone (shielding zone) is created, within which the probability of a direct strike on the installation is reduced. The anchoring in the screw foundation enables quick installation without excavation, reducing installation time and costs. Fixing with deep earth electrodes provides additional stability, especially at wind-loaded sites.

Compatibility and Accessories
The lightning protection mast is designed for use in installations with increased lightning strike susceptibility. It is compatible with the requirements of DIN EN 62561-(1+2) and can be used in combination with other lightning protection components such as grounding conductors and diverters. The use of deep earth electrodes for additional fixation of the screw foundation is part of the recommended installation instructions to ensure mechanical stability.

Installation and Mounting
Installation is carried out by screwing the screw foundation directly into the natural ground. This requires no special preparatory work such as digging or concreting. After securing the foundation, the mast is inserted into it and additionally secured with deep earth electrodes. The entire installation is tool-free and can be completed quickly, significantly reducing installation time compared to conventional foundation solutions.

Operational Advantages
The use of the DEHN Tele-lightning protection mast offers the advantage of quick and cost-efficient installation without extensive construction work. Stability under wind loads up to 159 km/h ensures safe operation even under extreme weather conditions. Compliance with DIN EN 62561-(1+2) guarantees adherence to current standards for lightning protection systems. The combination of screw foundation and deep earth electrodes ensures a robust anchoring that guarantees long-term functionality of the lightning protection.

General
Degree of protectionTested according to DIN EN 62561-(1+2)
Maximum gust wind speed159 km/h
Foundation typeScrew foundation
MountingWith deep grounding
Application areaBiogas plants, PV plants on open areas
NormDIN EN 1991-1-4 + DIN EN 1991-1-4/NA
MaterialSt/tZn / Al
Height above ground level (l1)9000 mm
Max. gust wind speed159 km/h
StandardEN 62561-(1+2)


Product data sheet
Datasheet for DEHN 103124, EAN: 4013364112742

Questions & answers

What is the delivery time of DEHN 103124 TBM 9M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation?

The article DEHN 103124 TBM 9M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of DEHN 103124 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you DEHN 103124 TBM 9M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation always at the best possible price. We can give you a discount of 2% on DEHN 103124 TBM 9M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of DEHN 103124 TBM 9M SCFU STTZN AL Tele lightning protection mast ÜFL with screw foundation we can offer you a price of 2.450,57 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
