D-Link 16 Ports Ethernet Switch - 16 x Network (RJ-45) Ports - 10/100/1000Base-T
|
75,84 EUR |
|||||||||||
|
( 90,25 EUR incl. VAT ) ≈ £63.86 | ≈ $85.17 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| End-Of-Life: | 06. Oct 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 361954 | ||||||||||
| Mfg Part No: | GO-SW-16G/E | ||||||||||
| UPC/EAN: | 0790069396618 | ||||||||||
| Weight: | 1.45 kg | ||||||||||
| Type: | CPNT | ||||||||||
|
Graduated prices net
|
|||||||||||
Further up to 16 ports from D-LinkFurther products in category up to 16 ports
All products of D-Link

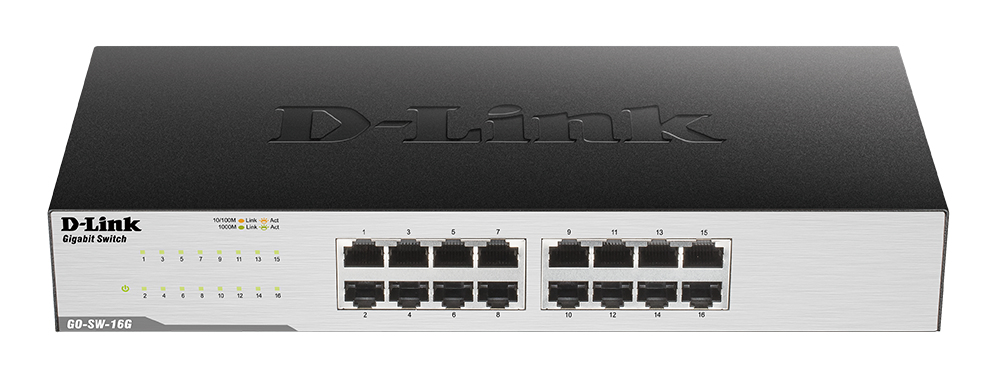

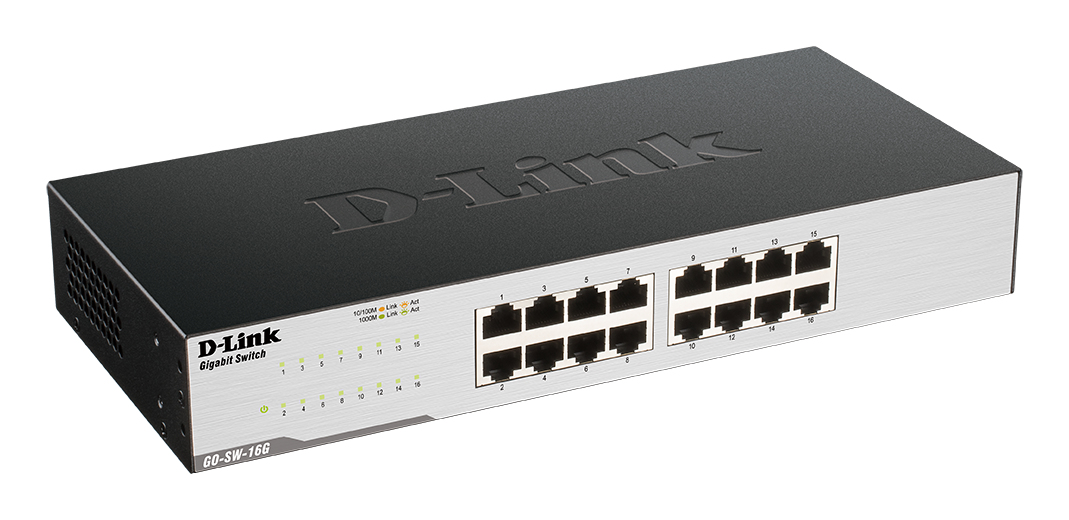

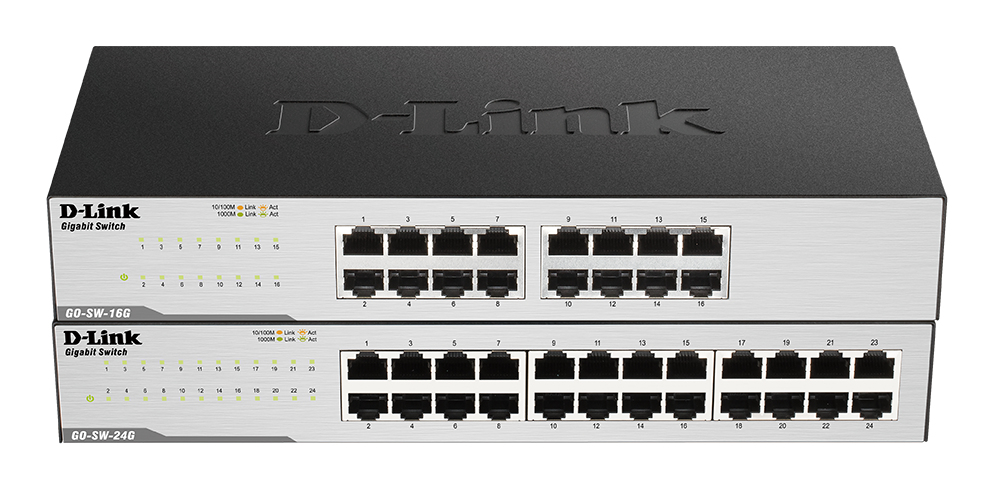

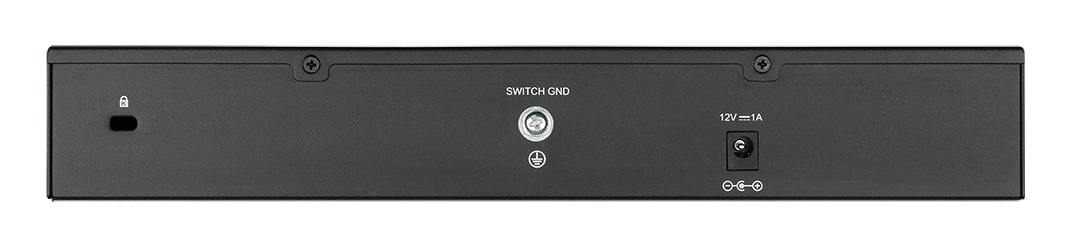

Product information for D-Link GO-SW-16G/E:
The dlinkgo Unmanaged Gigabit switches with 16 ports is an economical solution for the SOHO sector and for small and medium enterprises, which need an energy-efficient switch, which allows you to utilize the high bandwidth of Gigabit Ethernet.
-Innovatives plastic housing for better heat dissipation, and compact size
-Lüfterlose design for quiet operation
Flow Control IEEE 802.3x
-Auto MDI / MDI-X recognition on all ports
-Voll- and half-duplex mode Ethernet / Fast Ethernet
Supports Jumbo frames with 9,216 bytes
-Innovative D-Link Green Ethernet technology
Highlights
-16 Gigabit Ethernet ports for high network performance-Innovatives plastic housing for better heat dissipation, and compact size
-Lüfterlose design for quiet operation
Flow Control IEEE 802.3x
-Auto MDI / MDI-X recognition on all ports
-Voll- and half-duplex mode Ethernet / Fast Ethernet
Supports Jumbo frames with 9,216 bytes
-Innovative D-Link Green Ethernet technology
Switch
- 16 ports 10/100/1000 Cu
- Fanless
- Max.Power consumption 9 W (without PoE)
- Table mounting> System Connections - Number of Ethernet ports 10/100/1000 Mbit / s: 16
- Color: Black
- Height: 46 mm
- Width: 231 mm
- depth: 158 mm
- Weight: 580 g
- Switching power supply with 12 V / 1 A (Energy Star Level V) -Bereitschaftszustand: 2.64W
- Auto MDI / MDIX recognition
- send and receive wire-speed
- Store-and-Forward as Switching method
- MAC Address Table 8 K entries
- 2 Mbit RAM as a data buffer
- Jumbo Frames to 9216 bytes
- Switching capacity 32 Gbit / s> Data transfer rates -Ethernet: 10 Mbit / s (half duplex), 20 Mbit / s (full duplex) -Fast Ethernet: 100 Mbit / s (half duplex), 200 Mbit / s (full duplex) gigabit Ethernet: 2,000 Mbit / s (full duplex)
Basic Properties
Technical description
-Back-Pressure in half duplex mode
| Certificates | |
| Certification | CE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.512 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Number of fans | 0 fan(s) |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 39.92 BTU/h |
| Packaging data | |
| Package width | 180 mm |
| Package depth | 328 mm |
| Package height | 108 mm |
| Package weight | 1.45 kg |
| Performance | |
| Mean time between failures (MTBF) | 305171 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | DC-in jack |
| Power | |
| Number of power supply units | 1 |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 11.7 W |
| Power supply included | |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Technical details | |
| Shipping (inner) case height | 38.4 cm |
| Shipping (inner) case width | 34 cm |
| Shipping (inner) case length | 56.9 cm |
| Shipping (inner) case net weight | 15 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 491.5 kg |
| Master (outer) cases per pallet (air) | 30 pc(s) |
| Products per pallet (air) | 300 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.06 m |
| Pallet gross weight (sea) | 491.5 kg |
| Master (outer) cases per pallet (sea) | 30 pc(s) |
| Products per pallet (sea) | 300 pc(s) |
| Pallet height (sea) | 2.06 m |
| Shipping (inner) case gross weight | 15.6 kg |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 126 mm |
| Height | 44 mm |
| Weight | 870 g |
