D-Link DIS-700G-28XS 24 Ports SFP+ 4 Ports 10G SFP+
|
-6% 4.070,63 EUR 4.309,32 EUR |
|
|
( 4.844,05 EUR incl. VAT ) ≈ £3,427.47 | ≈ $4,571.32 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 07. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1472046 |
| Mfg Part No: | DIS-700G-28XS |
| UPC/EAN: | 0790069437953 |
| Weight: | 5.84 kg |
| Type: | DIS-700G-28XS |

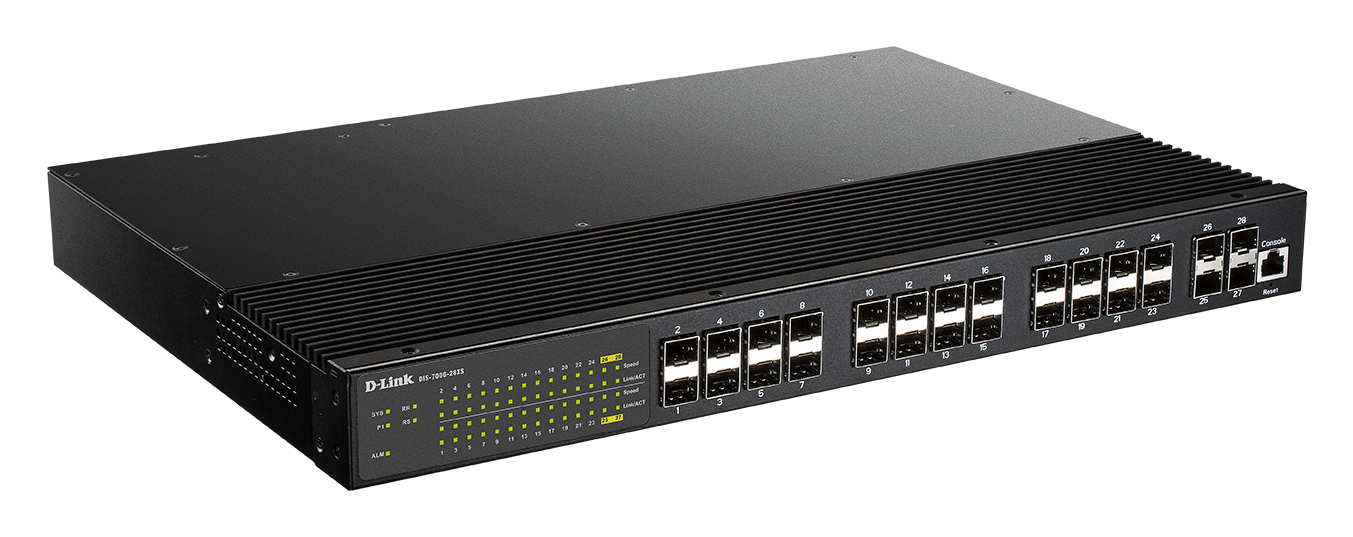

Product information for D-Link DIS-700G-28XS:
The DIS-700G Series Industrial Layer 2+ Gigabit Managed Switches are specifically designed to withstand a wide range of temperatures, vibration and shock. These rugged yet easy-to-setup switches offer superior environmental protection compared to commercial switches.
Thanks to their robust design combined with high-availability network functions, the switches form an essential part of any network infrastructure for the growing networking needs of smart cities, city-wide surveillance systems and wireless connections.
Thanks to their robust design combined with high-availability network functions, the switches form an essential part of any network infrastructure for the growing networking needs of smart cities, city-wide surveillance systems and wireless connections.
Highlights
- Robust, durable construction
- High reliability
- Suitable for difficult environmental conditions
- DIN rail and wall mounting options
- Web-based management interface
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and Telecommunications technology, small devices for IT and telecommunications technology B2C
- WEEE: 10490255
- Total number of copper ports: 24
- Total number of fiber optic ports: 28
- Bandwidth: 10/100/1000 MBit/s
- Type of installation: 48,3 cm ( 19 inch ) rack mounting
- Color: Black
- Height: 44 mm
- Length/Depth: 318.5 mm
- Width: 440 mm
- Weight: 4.5 kg
- D-Link DIS-700G-28XS
Product type
Shipping
Connections
Functions
Basic features
Scope of delivery
| Data transmission | |
| MAC address table | 8000 entries |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | |
| Traffic shaping | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1w, IEEE 802.3x |
| Virtual LAN features | Multicast VLAN |
| 10G support | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 570 mm |
| Package height | 110 mm |
| Package weight | 5.83 kg |
| Ports & interfaces | |
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power connector | DC-in jack |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 35 W |
| Technical details | |
| Shipping (inner) case height | 46.8 cm |
| Shipping (inner) case width | 35.7 cm |
| Shipping (inner) case length | 58.2 cm |
| Shipping (inner) case net weight | 17.5 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 242.1 kg |
| Master (outer) cases per pallet (air) | 12 pc(s) |
| Products per pallet (air) | 36 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 107.1 cm |
| Pallet gross weight (sea) | 467.2 kg |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Products per pallet (sea) | 72 pc(s) |
| Pallet height (sea) | 2.01 m |
| Shipping (inner) case gross weight | 18.8 kg |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 318.5 mm |
| Height | 44 mm |
| Weight | 4.5 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of D-Link DIS-700G-28XS 24 Ports SFP+ 4 Ports 10G SFP+?
The article D-Link DIS-700G-28XS 24 Ports SFP+ 4 Ports 10G SFP+ is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of D-Link DIS-700G-28XS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you D-Link DIS-700G-28XS 24 Ports SFP+ 4 Ports 10G SFP+ always at the best possible price. We can give you a discount of 2% on D-Link DIS-700G-28XS 24 Ports SFP+ 4 Ports 10G SFP+ if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
