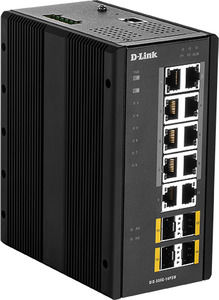

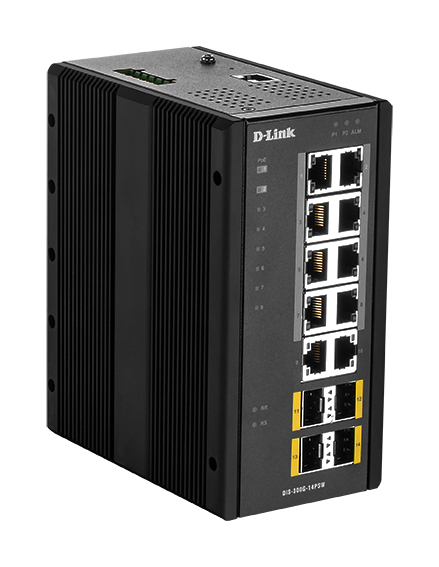

D-Link DIS-300G-14PSW
14-Port Gigabit PoE Industrial Switch
|
-7% 1.332,32 EUR 1.436,98 EUR |
|
|
( 1.585,46 EUR incl. VAT ) ≈ £1,121.81 | ≈ $1,496.20 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1473083 |
| Mfg Part No: | DIS-300G-14PSW |
| UPC/EAN: | 0790069437922 |
| Weight: | 0 kg |
Product information for D-Link DIS-300G-14PSW:
The DIS-300G Series Industrial Gigabit Managed Switches are specifically designed to withstand a wide range of temperatures, vibration and shock. These rugged yet easy-to-setup switches offer superior environmental protection compared to commercial switches.
Thanks to their robust design combined with high-availability network functions, the switches form an essential part of any network infrastructure for the growing networking needs of smart cities, city-wide surveillance systems and wireless connections.
Thanks to their robust design combined with high-availability network functions, the switches form an essential part of any network infrastructure for the growing networking needs of smart cities, city-wide surveillance systems and wireless connections.
Highlights
- Robust, durable construction
- High reliability
- Suitable for difficult environmental conditions

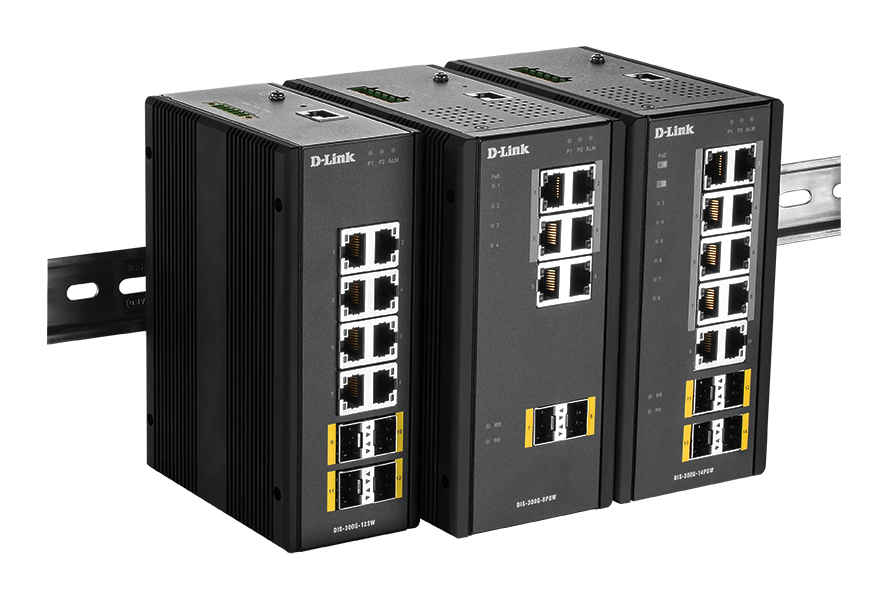

- DIN rail and wall mounting options
- Web-based management interface
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and Telecommunications technology, small devices for IT and telecommunications technology B2C
- WEEE: 10490255
- Total number of copper ports: 14
- Total number of fiber optic ports: 4
- Total number of PoE ports: 2
- Color: Black
- Height: 154 mm
- Length/Depth: 128 mm
- Width: 77 mm
- Weight: 1.41 kg
- DIS-300G-14PSW 14-port Gigabit PoE industrial switch
Product type
Shipping
Connections
Basic properties
Scope of delivery
| Certificates | |
| Certification | IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE |
| Data transmission | |
| MAC address table | 8000 entries |
| Jumbo frames | 9000 |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Alarm, LAN, PoE, Status |
| International Protection (IP) code | IP30 |
| Electromagnetic compatibility | FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6 |
| Rack mounting | |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| MIB support | RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic shaping | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN, Interface-based VLAN, Port-based VLAN, IP subnet–based VLAN |
| Number of VLANs | 1024 |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 242 mm |
| Package height | 138 mm |
| Package weight | 1.86 kg |
| Performance | |
| Firmware upgradeable | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Fiber optic connector | LC |
| Power | |
| DC input voltage | 48 - 58 V |
| Power consumption (typical) | 14 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) voltage range | 54 - 58 V |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP server, DHCP snooping, DHCP relay, DHCP client |
| Security algorithms | HTTPS, SNMP, SNMPv3, SSH |
| Authentication type | IEEE 802.1x, RADIUS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Technical details | |
| Shipping (inner) case height | 27 cm |
| Shipping (inner) case width | 40.5 cm |
| Shipping (inner) case length | 69.5 cm |
| Shipping (inner) case net weight | 18.6 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 415.6 kg |
| Master (outer) cases per pallet (air) | 20 pc(s) |
| Products per pallet (air) | 200 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 148.5 cm |
| Pallet gross weight (sea) | 575 kg |
| Master (outer) cases per pallet (sea) | 28 pc(s) |
| Products per pallet (sea) | 280 pc(s) |
| Pallet height (sea) | 2.02 m |
| Shipping (inner) case gross weight | 19.9 kg |
| Weight & dimensions | |
| Width | 71 mm |
| Depth | 154 mm |
| Height | 128 mm |
| Weight | 1.41 kg |
