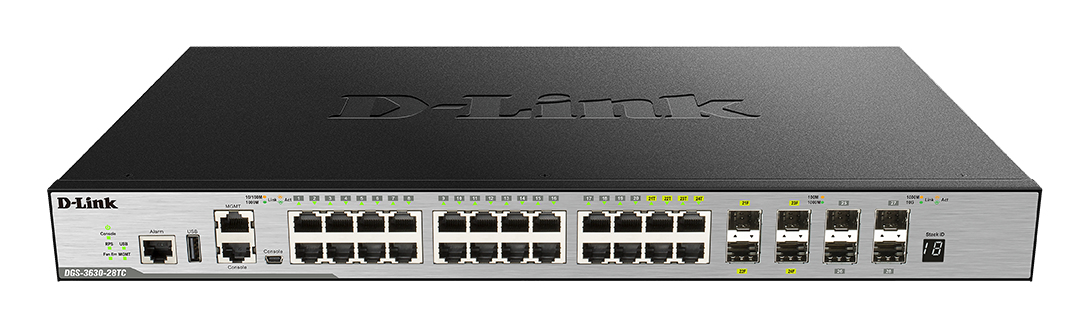

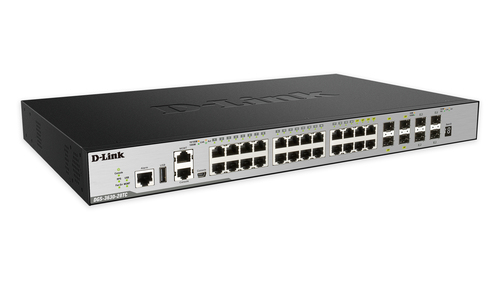

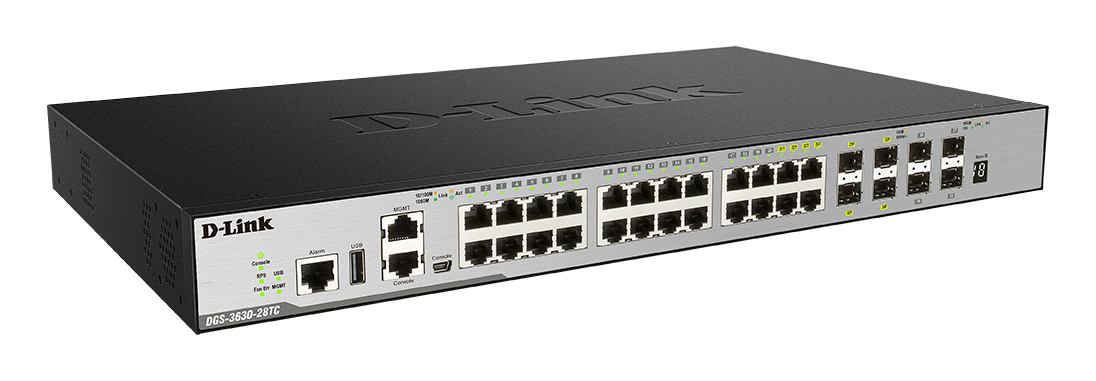

D-Link DGS-3630-28TC/SI
28-Port Layer 3 Gigabit Stack Switch content_copy

Layer 3 Managed Gigabit Stack Switches. Designed for small to medium businesses and Internet service providers. High performance, flexibility, fault tolerance and advanced software features.

Highlights

• L3 Stackable Managed Switch
• 20x 10/100/1000BASE-T ports
• 4x combo 10/100/1000BASE-T/SFP ports
• 4x SFP+ ports
• Switch capacity: 128 Gbps
• Heat dissipation: 144.58 BTU/h
• 2 smart Fan
• IPv6, Port-based Q-in-Q, QoS

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices B2C

Specifications

• Fan integrated
• Switch type: Access
• Switching capacity: 128 GBit/s (Gbps)

Shipping

• WEEE: 10490255

Connections

• Total number of copper ports: 20
• Total number of fiber optic ports: 4
• Connection highlights: RJ-45- and mini-USB console ports for out-of-band CLI management; 10/100/1000BASE-T RJ-45 Ethernet port for out-of-band IP management
• Bandwidth: 10/100/1000 MBit/s
• Console port
• Main port type: Copper
• Number of RJ45 ports (1G): 20
• Number (1G) ports combo: 4
• Number of SFP+ ports (10G): 4
• Total number of combo ports: 4

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount
• Stacking
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Anthracite
• Height: 44 mm
• Length/Depth: 259.8 mm
• Width: 441 mm
• Weight: 3.74 kg

Scope of delivery

• D-Link DGS-3630-28TC/SI 28-Port Layer 3 Gigabit Stack Switch

Certificates
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), RoHS, VCCI
Data transmission
Switching capacity	128 Gbit/s
Forwarding rate	95.24 Mpps
MAC address table	68000 entries
Number of queues	8
Number of static routes	512
Number of IP interfaces	256
Jumbo frames	12000
Packet buffer memory	4 MB
Static route
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	2 fan(s)
Safety	cUL, CB, CE, CCC, BSM
Electromagnetic compatibility	CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Rack mounting
Stackable
LED indicators
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support
Web-based management
Traffic classification
ARP inspection
System event log
Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Routing entries	16000
Virtual LAN features	IP subnet–based VLAN, MAC address-based VLAN, MVRP, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4094
10G support
Port mirroring
Full duplex
Flow control support
Link aggregation
Broadcast storm control
Spanning tree protocol
Ethernet Ring Protection Switching (ERPS)
VLAN support
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	144.58 BTU/h
Packaging data
Package width	415 mm
Package depth	528 mm
Package height	91 mm
Package weight	5.33 kg
Performance
Virtual stacking (units)	32
Noise level	52.7 dB
Mean time between failures (MTBF)	300190.46 h
Dying Gasp
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	20
Combo SFP ports quantity	4
SFP+ module slots quantity	4
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Power connector	AC-in jack
Power
Power source	AC
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	42.4 W
Surge protection voltage	6 kV
Power supply included
Redundant power supply (RPS) support
Surge protection
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols	SNMP, NTPv3/v4, Telnet
Routing protocols	BGP4, OSPFv3, RIP, RIP-1, RIP-2, RIPng, VRRP
IP Source Guard (IPSG)
Security
DHCP features	DHCP auto-config, DHCP client, DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Security algorithms	802.1x RADIUS, SSH, SSH-2, SSL/TLS
Authentication	Guest VLAN, Port-based authentication
Authentication type	IEEE 802.1x
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED)
Access Control List (ACL)
IGMP snooping
MAC address filtering
SSH/SSL support
Loop protection
BPDU filtering/protection
Root protection
Technical details
Shipping (inner) case height	45 cm
Shipping (inner) case width	29.6 cm
Shipping (inner) case length	54.9 cm
Shipping (inner) case net weight	14.1 kg
Products per shipping (inner) case	3 pc(s)
Pallet gross weight (air)	562.8 kg
Master (outer) cases per pallet (air)	32 pc(s)
Products per pallet (air)	96 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	193.5 cm
Pallet gross weight (sea)	562.8 kg
Master (outer) cases per pallet (sea)	32 pc(s)
Products per pallet (sea)	96 pc(s)
Pallet height (sea)	193.5 cm
Shipping (inner) case gross weight	17 kg
Weight & dimensions
Width	441 mm
Depth	259.8 mm
Height	44 mm
Weight	3.74 kg

---
