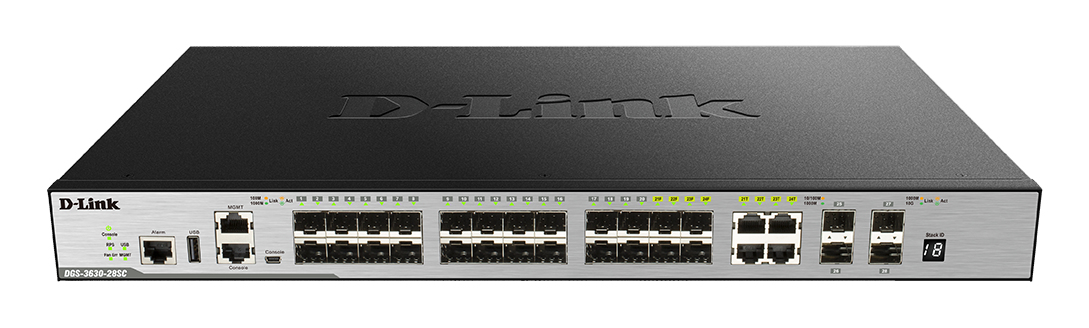

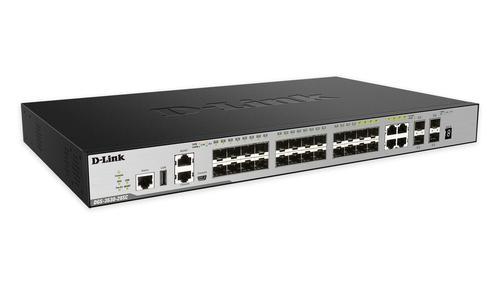

D-Link DGS-3630-28SC/SI
8-Port Layer 3 Fiber Gigabit Stack content_copy

Layer 3 Managed Gigabit Stack Switches. Designed for small to medium businesses and Internet service providers. High performance, flexibility, fault tolerance and advanced software features.

Highlights

• 20 SFP ports
• 4 combo 10/100/1000BASE-T/SFP ports
• 4 10 GbE SFP+ ports
• Switch capacity up to 128 Gbps
• Multicast, QoS, DHCP

Product type

• Switch
• ear category (ElektroG): relevant , Category 6: small devices for IT and telecommunications technology, small devices for IT and telecommunications technology B2C

Specifications

• Integrated fan
• Switch type: Access

Shipping

• WEEE: 10490255

Connections

• Total number of fiber optic ports: 20
• Ports Highlights: RJ-45 and mini-USB console ports for out-of-band CLI management; 10/100/1000BASE-T RJ-45 Ethernet port for out-of-band IP management
• Bandwidth: 10/100/1000 MBit/s
• Console port
• Main port type: Fiber
• Number of SFP ports (1G): 20
• Number (1G) ports combo: 4
• Number of SFP+ ports (10G): 4
• Total number of combo ports: 4

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount
• Stacking
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Anthracite
• Height: 44 mm
• Length/Depth: 259.8 mm
• Width: 441 mm
• Weight: 3.79 kg

Scope of delivery

• D-Link DGS-3630-28SC/SI 8-Port Layer 3 Fiber Gigabit Stack

Data transmission
Switching capacity	128 Gbit/s
Forwarding rate	95.24 Mpps
MAC address table	68000 entries
Number of queues	8
Number of IP interfaces	256
Jumbo frames	12000
Packet buffer memory	4 MB
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	2 fan(s)
Safety	cUL, CB, CE, CCC, BSM
Electromagnetic compatibility	CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Rack mounting
Stackable
LED indicators
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support
Web-based management
Traffic classification
ARP inspection
System event log
Multicast features
Multicast MAC address table	68000 entries
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Routing entries	16000
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs	4094
10G support
Port mirroring
Full duplex
Flow control support
Link aggregation
Broadcast storm control
Spanning tree protocol
VLAN support
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	216.81 BTU/h
Packaging data
Package width	415 mm
Package depth	528 mm
Package height	91 mm
Package weight	5.29 kg
Performance
Virtual stacking (units)	32
Noise level	56 dB
Mean time between failures (MTBF)	280612 h
Ports & interfaces
Combo SFP ports quantity	4
SFP module slots quantity	20
SFP+ module slots quantity	4
Number of management ports	1 pc(s)
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Power connector	DC-in jack
Basic switching RJ-45 Ethernet ports type
Power
Power source	AC
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	63.58 W
Surge protection voltage	6 kV
Power supply included
Redundant power supply (RPS) support
Surge protection
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols	SNMP, NTPv3/v4, Telnet
Security
DHCP features	DHCP server, DHCP client
Security algorithms	802.1x RADIUS, SSH, SSH-2, SSL/TLS
Authentication	Guest VLAN, Port-based authentication
Access Control List (ACL)
IGMP snooping
MAC address filtering
SSH/SSL support
Loop protection
BPDU filtering/protection
Technical details
Shipping (inner) case height	45 cm
Shipping (inner) case width	29.6 cm
Shipping (inner) case length	54.9 cm
Shipping (inner) case net weight	13.5 kg
Products per shipping (inner) case	3 pc(s)
Pallet gross weight (air)	553.5 kg
Master (outer) cases per pallet (air)	32 pc(s)
Products per pallet (air)	96 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	193.5 cm
Pallet gross weight (sea)	553.5 kg
Master (outer) cases per pallet (sea)	32 pc(s)
Products per pallet (sea)	96 pc(s)
Pallet height (sea)	193.5 cm
Shipping (inner) case gross weight	16.7 kg
Weight & dimensions
Width	441 mm
Depth	260 mm
Height	44 mm
Weight	3.79 kg

---
