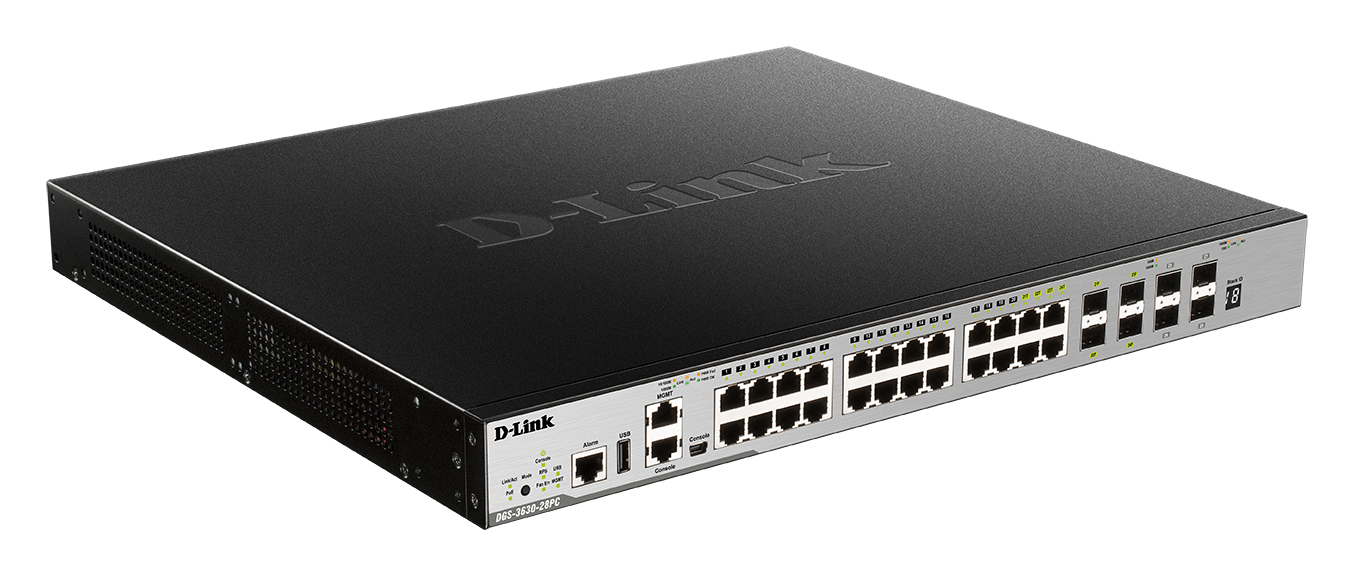

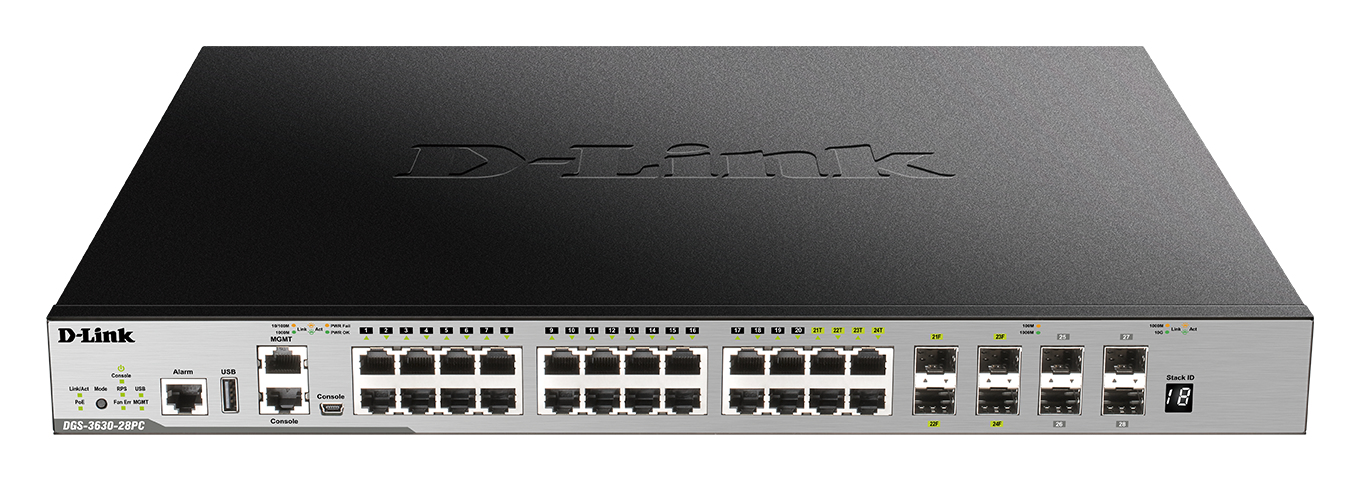

D-Link DGS-3630-28PC/SI
28-Port Layer 3 Gigabit PoE Stack content_copy

Layer 3 Managed Gigabit Stack Switches. Designed for small to medium businesses and Internet service providers. High performance, flexibility, fault tolerance and advanced software features.

Highlights

• 20x 10/100/1000BASE-T PoE ports
• 4x combo 10/100/1000BASE-T PoE/SFP ports
• 4x 10 Gigabit SFP+ ports
• Switching capacity: 128 Gbit/s
• PoE budget: 370 watts (740 Watt with optional, redundant power supply DPS-700 RPS)
• 4 smart fans

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices Technology B2C

Specifications

• Integrated fan
• Switch type: Access
• Switching capacity: 128 GBit/s (Gbps)

Shipping

• WEEE: 10490255

Connections

• Total number of copper ports: 20
• Total number of fiber optic ports: 4
• Total number of PoE ports: 24
• Ports Highlights: RJ-45 and mini-USB console ports for out-of-band CLI management; 10/100/1000BASE-T RJ-45 Ethernet port for out-of-band IP management
• Bandwidth: 10/100/1000 Mbps
• PoE standard: PoE - 802.3af, PoE+ - 802.3at
• PoE -Budget: 370 W
• Console port
• Main port type: Copper
• Number of PoE+ (af/at) ports: 24
• Number of RJ45 ports (1G): 20
• Number (1G) ports combo: 4
• Number of SFP+ ports (10G): 4
• Total number of combo ports: 4

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount
• Stacking
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: black, gray
• Height: 44 mm
• Length/depth: 380 mm
• Width: 441 mm
• Weight: 5.88 kg

Scope of delivery

• D-Link DGS-3630-28PC/SI 28-Port Layer 3 Gigabit PoE Stack

Data transmission
Switching capacity	128 Gbit/s
Forwarding rate	95.24 Mpps
MAC address table	68000 entries
Number of static routes	512
Jumbo frames	12000
Packet buffer memory	4 MB
Store-and-forward
Static route
Jumbo frames support
Design
Product colour	Black, Grey
Number of fans	4 fan(s)
Safety	cUL, CB, CE, CCC, BSMI
Electromagnetic compatibility	CE, FCC A, C-Tick, VCCI, BSMI, CCC
Rack mounting
Stackable
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support
Web-based management
Multicast features
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Multicast support
Network
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Routing entries	16000
Virtual LAN features	Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs	4000
10G support
Port mirroring
Full duplex
IP routing
Flow control support
Link aggregation
Head-of-line (HOL) blocking
Auto-negotiation
Ethernet Ring Protection Switching (ERPS)
VLAN support
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	5 - 95%
Packaging data
Package width	538 mm
Package depth	560 mm
Package height	170 mm
Package weight	8.24 kg
Performance
Physical stacking (units)	9
Virtual stacking (units)	32
Built-in processor
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
SFP+ module slots quantity	4
Fiber optic connector	SFP+
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

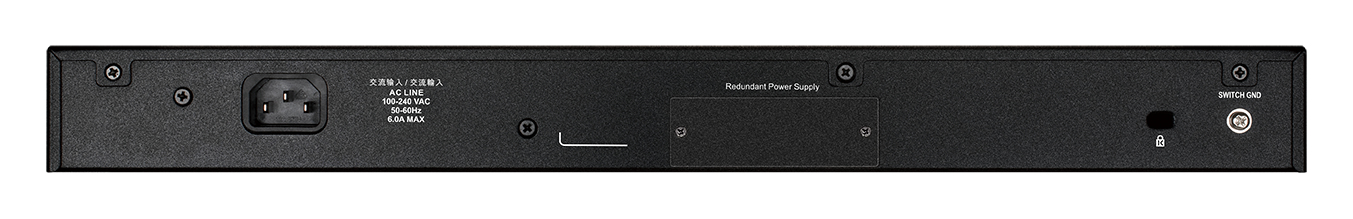

Redundant power supply (RPS) support
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE)
Security
DHCP features	DHCP server, DHCP client
Security algorithms	802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS
Access Control List (ACL)
IGMP snooping
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Technical details
Shipping (inner) case height	57.2 cm
Shipping (inner) case width	36.2 cm
Shipping (inner) case length	57.9 cm
Shipping (inner) case net weight	12.9 kg
Products per shipping (inner) case	2 pc(s)
Pallet gross weight (air)	342.4 kg
Master (outer) cases per pallet (air)	18 pc(s)
Products per pallet (air)	36 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	185.1 cm
Pallet gross weight (sea)	342.4 kg
Master (outer) cases per pallet (sea)	18 pc(s)
Products per pallet (sea)	36 pc(s)
Pallet height (sea)	185.1 cm
Shipping (inner) case gross weight	18 kg
Weight & dimensions
Width	441 mm
Depth	380 mm
Height	44 mm
Weight	5.88 kg

---
