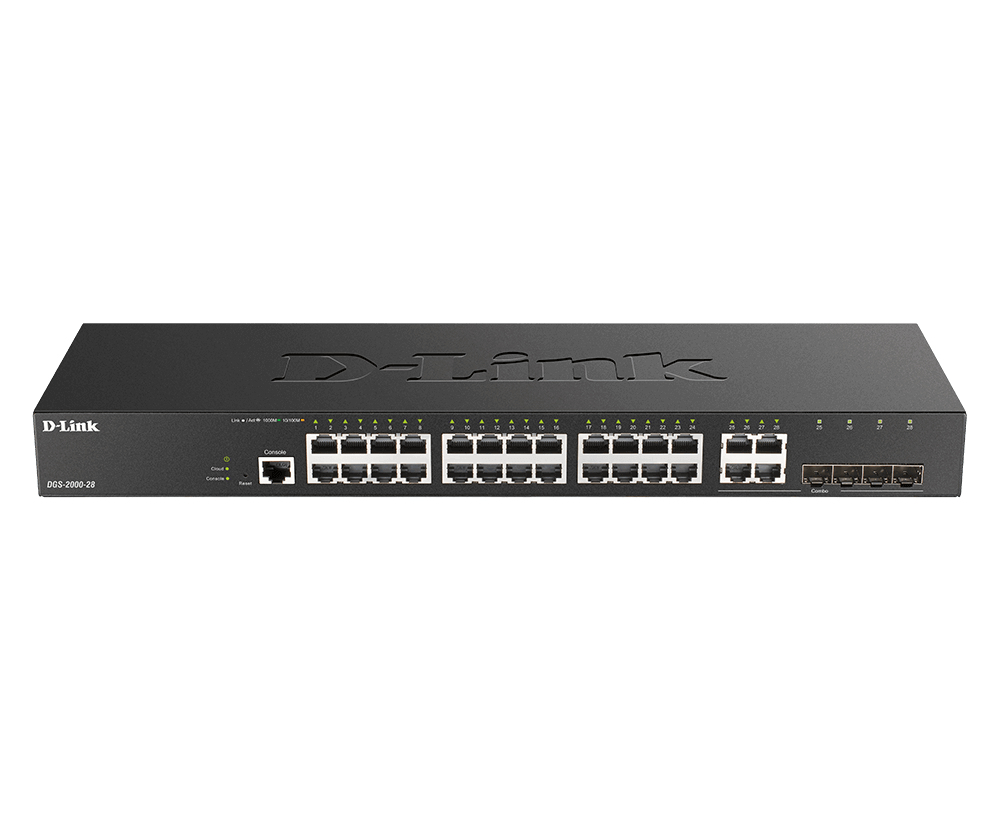

D-Link DGS-2000-28
28-Port Gigabit Managed Switch content_copy

The DGS-2000 Series is a range of cost-effective, high-performance, fully-managed Gigabit access switches with comprehensive features, making them the perfect solution for small offices or large, multi-site enterprises.

Highlights

• Managed Gigabit Switch
• 24 x 10/100/1000BASE-T ports
• 4 x 100/1000 Mbps GbE/SFP combo ports
• RJ45 console port
• Switch capacity up to 56 GB/s
• Maximum power consumption 17.32 W
• 19 inch rack mounting possible
• Innovative SafeGuard Engine from D-Link protects the switches from traffic flooding attacks

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, small devices of IT and telecommunications technology B2C

Shipping

• WEEE: 10490255

Connections

• Total number of copper ports: 28
• Total number of fiber optic ports: 4
• Connection highlights: 4 x 100/1000 Mbit/s GbE/SFP combo ports
• Bandwidth: 10/ 100/1000 MBit/s

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/depth: 140 mm
• Width: 440 mm
• Weight : 2.15 kg

Scope of delivery

• D-Link DGS-2000-28 28-Port Gigabit Managed Switch

Data transmission
Switching capacity	56 Gbit/s
Forwarding rate	41.7 Mpps
MAC address table	8000 entries
Packet buffer memory	4.1 MB
Store-and-forward
Design
Form factor	1U
Product colour	Black
LED indicators	Activity, Link, Power, Speed
Rack mounting
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Switch layer	L2/L3
MIB support	Y
Quality of Service (QoS) support
Web-based management
Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Virtual LAN features	Tagged VLAN
Full duplex
Half duplex
Auto MDI/MDI-X
VLAN support
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Performance
Memory type	DDR3-SDRAM
Internal memory	256 MB
Flash memory	32 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
Console port	RJ-45
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Security
DHCP features	DHCP relay, DHCP snooping
Access Control List (ACL)
IGMP snooping
Static port security
SSH/SSL support
IP-MAC-Port binding
Weight & dimensions
Width	440 mm
Depth	250 mm
Height	44 mm
Weight	2.15 kg

---
