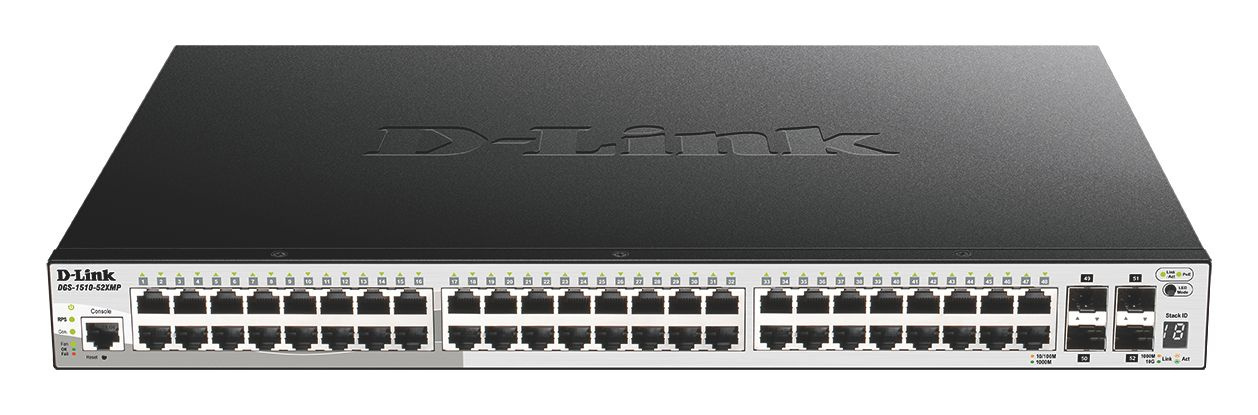

Switch 440 mm D-Link DGS-1510-52XMP/E 4×SFP+/48×GE PoE retail content_copy

D-Link's DGS-1510 series is the latest generation of smart managed switches and features 10G SFP+ fiber ports for physical stacking or uplinks. Combining high-bandwidth connections, an industry-standard CLI and PoE options, the DGS-1510 series is the ideal solution for small to medium-sized businesses.

Highlights

• 48 x Gigabit Ethernet port with PoE support
• 4 × 10G SFP+ port
• Virtual stacking with up to 32 devices
• Physical stacking for up to six devices
• Switching capacity: 176 Gbit/s
• PoE budget: 370 W (up to 740 W with DPS-700 RPS) with up to 30 W per port
• Smart Fan Technology

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, small IT devices - and telecommunications technology B2C

Specifications

• Integrated fan
• Switch type: Access
• Switching capacity: 176 GBit/s (Gbps)

Shipping

• WEEE: 10490255

Connections

• Total number of copper ports: 48
• Total number of fiber optic ports: 4
• Number of PoE Total ports: 48
• Bandwidth: 10/100/1000 Mbit/s
• PoE standard: PoE - 802.3af, PoE+ - 802.3at
• PoE budget: 370 W
• Console port
• Main port type: copper
• Number of PoE+ (af/at) Ports: 48
• Number of RJ45 ports (1G): 48
• Number of SFP+ ports (10G): 4

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mounting
• Stacking
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Silver , Black
• Height: 44 mm
• Length/Depth: 308 mm
• Width: 440 mm
• Weight: 5.41 kg

Scope of delivery

• D-Link DGS-1510-52XMP 52-Port Smart Managed PoE+ Gigabit Stackable Switch

Certificates
Certification	CE FCC C-Tick VCCI BSMI cUL CB
Data transmission
Switching capacity	128 Gbit/s
Throughput	95.24 Mpps
MAC address table	16000 entries
Number of IP interfaces	16
Jumbo frames	9216
Jumbo frames support
Design
Product colour	Black
LED indicators	Activity, Link, PoE, Speed
Number of fans	3 fan(s)
Rack mounting
Stackable
Reset button
Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support
Web-based management
Traffic classification
ARP inspection
Multicast features
Multicast MAC address table	512 entries
Multicast support
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat5, Cat5e
10G support
Full duplex
Auto MDI/MDI-X
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	138.787 BTU/h
Packaging data
Package width	475 mm
Package depth	520 mm
Package height	110 mm
Package weight	7.26 kg
Performance
Noise level	56.9 dB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Power
AC input voltage	100 - 240 V
Power consumption (max)	486.9 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Weight & dimensions
Width	440 mm
Depth	308 mm
Height	44 mm
Weight	5.41 kg

---
