Switch 440 mm D-Link DGS-1510-28XMP/E 4×SFP+/24×GE PoE retail
|
1.133,64 EUR |
|||||||||||
|
( 1.349,03 EUR incl. VAT ) ≈ £948.86 | ≈ $1,264.01 plus delivery charges: 100,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| End-Of-Life: | 03. Aug 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 1971743 | ||||||||||
| Mfg Part No: | DGS-1510-28XMP/E | ||||||||||
| UPC/EAN: | 0790069467943 | ||||||||||
| Weight: | 6.825 kg | ||||||||||
| Type: | DGS-1510-28XMP/E | ||||||||||
|
Graduated prices net
|
|||||||||||

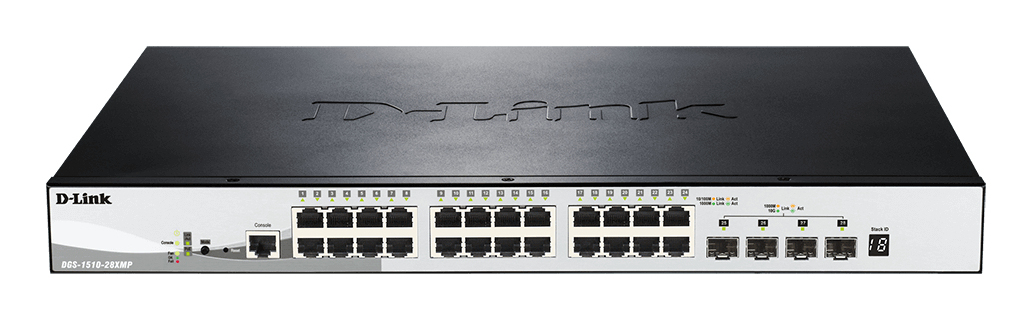

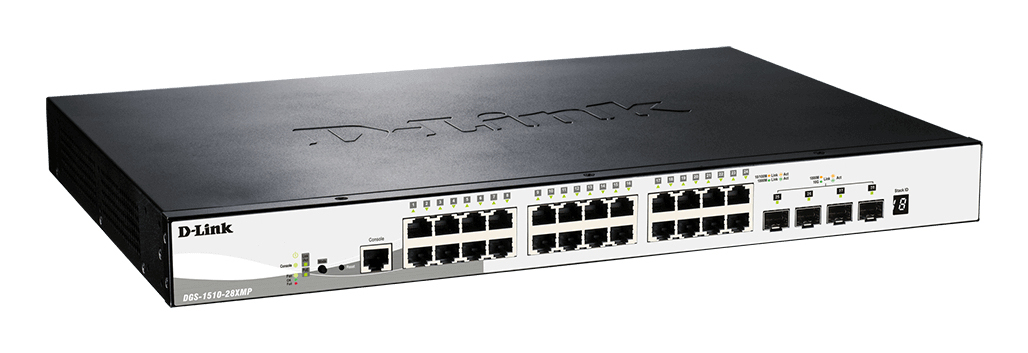

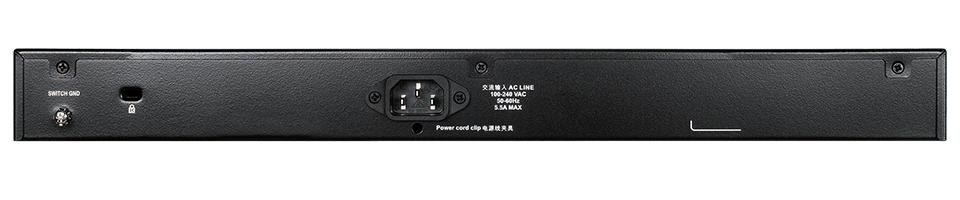

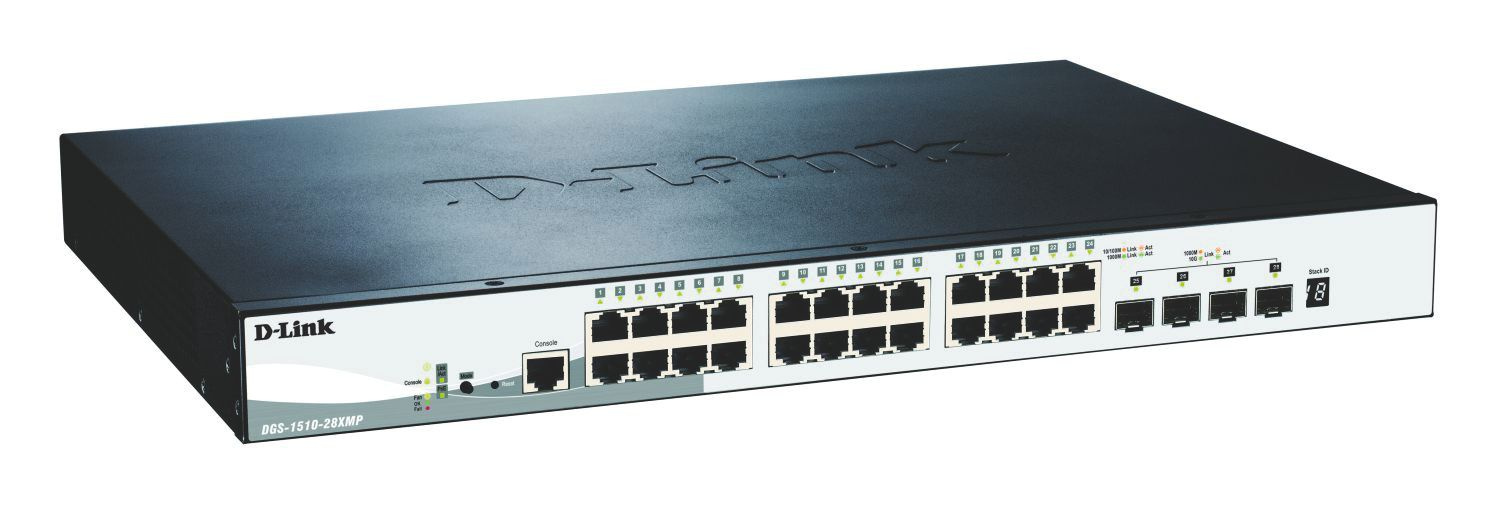

Product information for D-Link DGS-1510-28XMP/E:
D-Link's DGS-1510 series is the latest generation of smart managed switches and features 10G SFP+ fiber ports for physical stacking or uplinks. Combining high-bandwidth connections, an industry-standard CLI and PoE options, the DGS-1510 series is the ideal solution for small to medium-sized businesses.
Highlights
- 24 x Gigabit Ethernet with PoE support
- 4 × 10G SFP+ port
- Virtual stacking with up to 32 devices
- Physical stacking for up to six devices
- Switching capacity 128 Gbit/s
- PoE budget: 370 W with up to 30 W per port
- Smart Fan Technology
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C
- Integrated fan
- Switch -Type: Access
- Switching capacity: 128 GBit/s (Gbps)
- WEEE: 10490255
- Total number of copper ports: 24
- Total number of fiber optic ports: 4
- Total number of PoE ports: 24
- Bandwidth: 10/100/1000 MBit /s
- PoE standard: PoE - 802.3af, PoE+ - 802.3at
- PoE budget: 370 W
- Console port
- Main port type: Copper
- Number of PoE+ (af/at) ports: 24
- Number of RJ45 ports (1G): 24
- Number of SFP+ ports (10G): 4
- Switch manageable: Yes
- Mounting type: 48,3 cm ( 19 inch ) rack mount
- Stacking
- IGMP
- Power supply: integrated
- Color: silver, black
- Height: 44 mm
- Length/depth: 308 mm
- Width: 440 mm
- Weight: 4.25 kg
- D-Link DGS-1510-28XMP 28-Port Smart Managed PoE+ Gigabit Stackable Switch
Product type
Specifications
Shipping
Connections
Functions
Power supply
Basic features
Scope of delivery
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.24 Mpps |
| MAC address table | 16384 entries |
| Number of queues | 8 |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black, Grey |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans | 2 fan(s) |
| Safety | cUL, CB |
| Rack mounting | |
| Stackable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | |
| Traffic classification | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Head-of-line (HOL) blocking | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 1487.78 BTU/h |
| Packaging data | |
| Package width | 450 mm |
| Package depth | 510 mm |
| Package height | 121 mm |
| Package weight | 7.06 kg |
| Performance | |
| Processor frequency | 400 MHz |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 274796 h |
| Built-in processor | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP+ |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 436.3 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) rules | 768 |
| Security algorithms | 802.1x RADIUS, EAP, SNMP, SSH, SSH-2, SSL/TLS |
| Authentication | MAC-based authentication, Port-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| SSH/SSL support | |
| BPDU filtering/protection | |
| Technical details | |
| Shipping (inner) case height | 48.5 cm |
| Shipping (inner) case width | 38.5 cm |
| Shipping (inner) case length | 53 cm |
| Shipping (inner) case net weight | 14.3 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 561.6 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 72 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.08 m |
| Pallet gross weight (sea) | 561.6 kg |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Products per pallet (sea) | 72 pc(s) |
| Pallet height (sea) | 2.08 m |
| Shipping (inner) case gross weight | 22.6 kg |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 308.5 mm |
| Height | 44 mm |
| Weight | 4.25 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Switch 440 mm D-Link DGS-1510-28XMP/E 4×SFP+/24×GE PoE retail?
The article Switch 440 mm D-Link DGS-1510-28XMP/E 4×SFP+/24×GE PoE retail is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of D-Link DGS-1510-28XMP/E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Switch 440 mm D-Link DGS-1510-28XMP/E 4×SFP+/24×GE PoE retail always at the best possible price. We can give you a discount of 2% on Switch 440 mm D-Link DGS-1510-28XMP/E 4×SFP+/24×GE PoE retail if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Switch 440 mm D-Link DGS-1510-28XMP/E 4×SFP+/24×GE PoE retail we can offer you a price of 1.091,13 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
