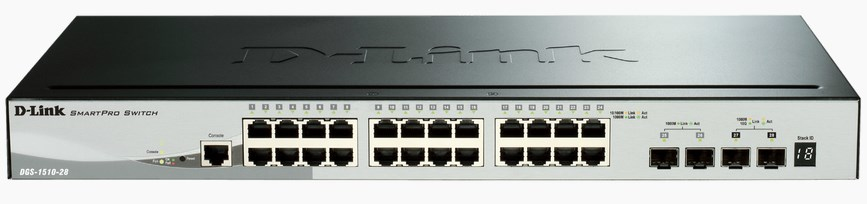

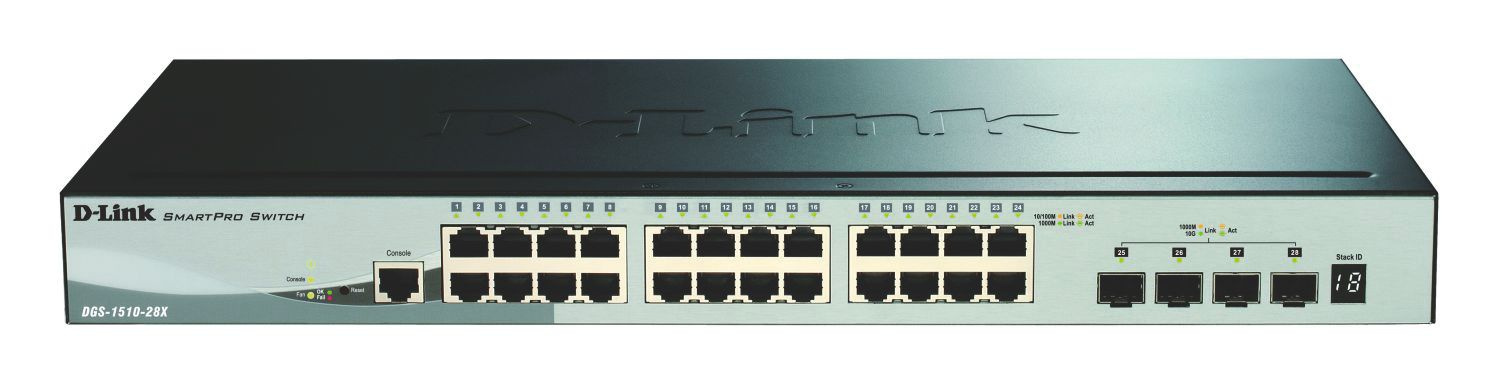

D-Link DGS-1510-28X/E Switch 24xGBit/4xSFP+ without UK plug
|
524,07 EUR |
|||||||||||
|
( 623,64 EUR incl. VAT ) ≈ £438.65 | ≈ $584.34 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1971721 | ||||||||||
| Mfg Part No: | DGS-1510-28X/E | ||||||||||
| UPC/EAN: | 0790069467974 | ||||||||||
| Weight: | 3.153 kg | ||||||||||
| Type: | DGS-1510-28X/E | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for D-Link DGS-1510-28X/E:
Highlights
- 24 x Gigabit Ethernet port
- 4 x 10G SFP+ port
- Virtual stacking with up to 32 devices
- Physical stacking for up to six devices
- Switching capacity 128 Gbit/s
- Smart Fan technology
- Switch
- ear category ( ElektroG): relevant, Category 6: small devices for IT and telecommunications technology, small devices for IT and telecommunications technology B2C
- Integrated fan
- Switch type: Access
- Switching capacity: 128 GBit/s (Gbps)
- WEEE: 10490255
- Total number of copper ports: 24
- Total number of fiber optic ports: 4
- Bandwidth: 10/100/1000 MBit/s
- Console port
- Main port type: Copper
- Number of RJ45 ports (1G): 24
- Number of SFP+ ports ( 10G): 4
- Switch manageable: Yes
- Mounting type: 48,3 cm ( 19 inch ) rack mount
- Stacking
- IGMP
- Power supply: integrated
- Color: silver, black
- Height: 44 mm
- Length/depth: 210 mm
- Width: 440 mm
- Weight: 2 kg
- D-Link DGS-1510-28X 28-Port Smart Managed Gigabit Stackable Switch
Product type
Specifications
Shipping
Connections
Functions
Power supply
Basic features
Scope of delivery
| Certificates | |
| Certification | CE, FCC, C-Tick, VCCI, BSMI, CCC |
| Data transmission | |
| Switching capacity | 92 Gbit/s |
| Throughput | 68.45 Mpps |
| MAC address table | 16000 entries |
| Number of static routes | 512 |
| Packet buffer memory | 1.5 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Safety | cUL, CB |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| 10G support | |
| Full duplex | |
| Auto MDI/MDI-X | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 72.292 BTU/h |
| Packaging data | |
| Package width | 348 mm |
| Package depth | 511 mm |
| Package height | 91 mm |
| Package weight | 3.47 kg |
| Performance | |
| Noise level | 47.5 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Power connector | DC-in jack |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 24 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| Access Control List (ACL) | |
| MAC address filtering | |
| Static port security | |
| SSH/SSL support | |
| Technical details | |
| Shipping (inner) case height | 38.3 cm |
| Shipping (inner) case width | 29.6 cm |
| Shipping (inner) case length | 52.9 cm |
| Shipping (inner) case net weight | 7.49 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 471.4 kg |
| Master (outer) cases per pallet (air) | 40 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.05 m |
| Pallet gross weight (sea) | 471.4 kg |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Products per pallet (sea) | 120 pc(s) |
| Pallet height (sea) | 2.05 m |
| Shipping (inner) case gross weight | 11.3 kg |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 2 kg |
Questions & answers
What is the delivery time of D-Link DGS-1510-28X/E Switch 24xGBit/4xSFP+ without UK plug?
The article D-Link DGS-1510-28X/E Switch 24xGBit/4xSFP+ without UK plug is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of D-Link DGS-1510-28X/E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you D-Link DGS-1510-28X/E Switch 24xGBit/4xSFP+ without UK plug always at the best possible price. We can give you a discount of 2% on D-Link DGS-1510-28X/E Switch 24xGBit/4xSFP+ without UK plug if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of D-Link DGS-1510-28X/E Switch 24xGBit/4xSFP+ without UK plug we can offer you a price of 500,49 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
