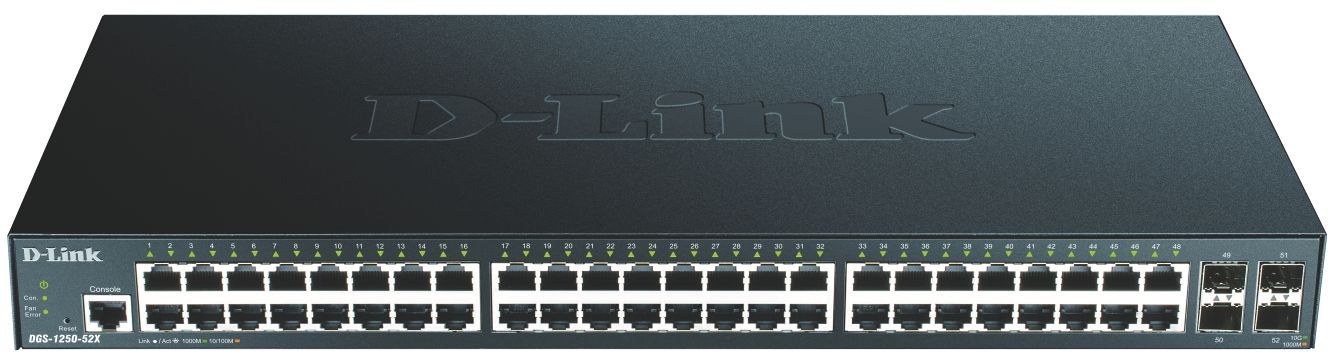

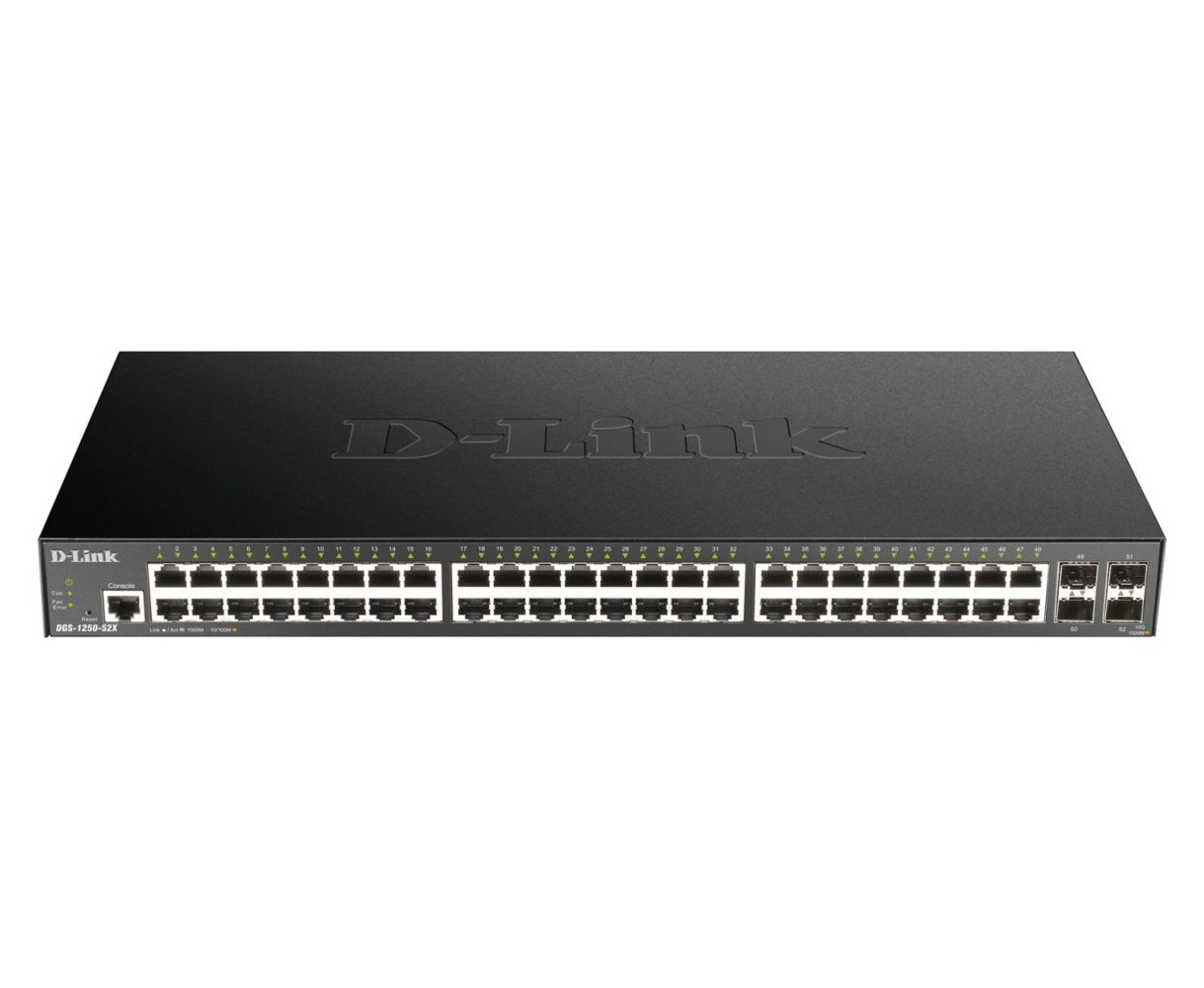

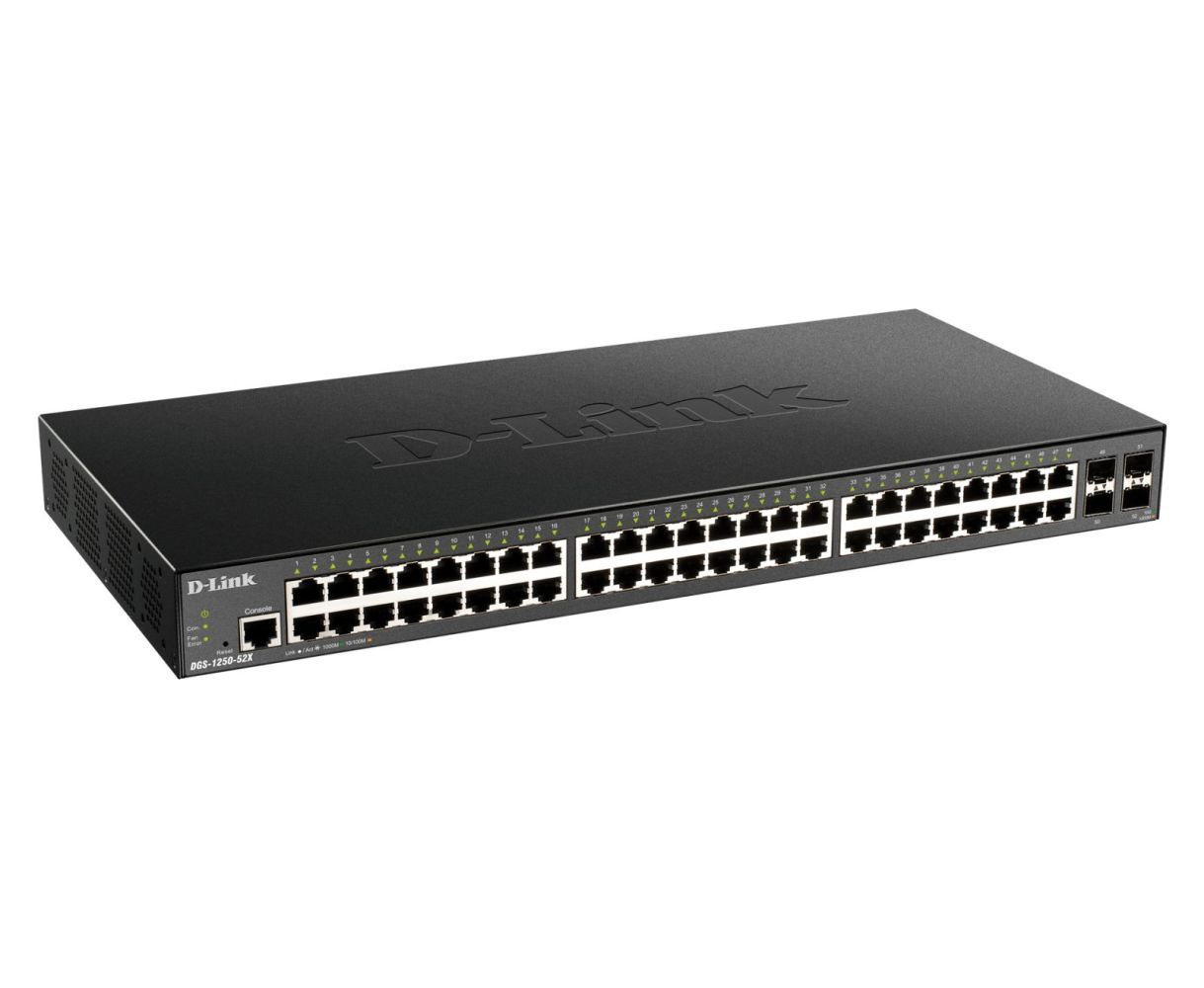

Switch 440 mm D-Link DGS-1250-52X/E 4×SFP+/48×GE retail
|
674,35 EUR |
|||||||||||
|
( 802,48 EUR incl. VAT ) ≈ £564.43 | ≈ $751.90 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1971738 | ||||||||||
| Mfg Part No: | DGS-1250-52X/E | ||||||||||
| UPC/EAN: | 0790069467899 | ||||||||||
| Weight: | 4.312 kg | ||||||||||
| Type: | DGS-1250-52X/E | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for D-Link DGS-1250-52X/E:
D-Link's DGS-1250 Series Gigabit Smart Managed Switches with 10G uplinks are the latest generation of switches for higher PoE (Power over Ethernet) performance and high port density, multiple management interfaces and advanced Layer 2 features . With all of these features combined, the DGS-1250 series is a cost-effective and flexible solution to expand an expanding business network.
Highlights
- 48x Gigabit Ethernet port
- 4x 10G SFP+ port
- Switch capacity: 176 Gbps
- Full industry standard CLI, graphical web interface, console port
- Layer 2 and Layer 3 Lite features
- Switch
- ear category (ElektroG): relevant, category 6: small IT and telecommunications devices, small IT and telecommunications devices B2C
- Integrated fan
- Switch type: Access
- Switching capacity: 176 GBit/s (Gbps)
- WEEE: 10490255
- Total number of copper ports: 48
- Total number of fiber optic ports: 4
- Bandwidth: 10/100/1000 MBit/s
- Console port
- Main port type: Copper
- Number of RJ45 ports (1G): 48
- Number of SFP+ ports (10G): 4
- Switch manageable: Yes
- Mounting type: 48,3 cm ( 19 inch ) rack mount
- IGMP
- Power supply: integrated
- Color: Black
- Height: 44 mm
- Length/depth: 210 mm
- Width: 440 mm
- Weight: 3010 g
- D-Link DGS-1250-52X 52-Port Smart Mgd
Product type
Specifications
Shipping
Connections
Functions
Power supply
Basic features
Scope of delivery
| Certificates | |
| Certification | CB, UL, BSMI, CCC |
| Data transmission | |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.95 Mpps |
| MAC address table | 32000 entries |
| Number of static routes | 124 |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, Power, Speed |
| Electromagnetic compatibility | CE A, VCCI A, FCC A, IC, BSMI |
| Rack mounting | |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| MIB support | RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620, |
| Quality of Service (QoS) support | |
| Web-based management | |
| ARP inspection | |
| Configuring Location Settings (CLI) | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Head-of-line (HOL) blocking | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 174.592 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE-LHX, 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX |
| Packaging data | |
| Package width | 351 mm |
| Package depth | 565 mm |
| Package height | 91 mm |
| Package weight | 4.28 kg |
| Performance | |
| Memory type | DDR3-SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 64 MB |
| Noise level | 50.7 dB |
| Mean time between failures (MTBF) | 589984.72 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 51.2 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Access Control List (ACL) rules | 768 |
| Security algorithms | EAP, LEAP, MD5, PEAP, SSH, SSL/TLS, TTLS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Access Control List (ACL) | |
| IGMP snooping | |
| Loop protection | |
| IP-MAC-Port binding | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 3.01 kg |
Questions & answers
What is the delivery time of Switch 440 mm D-Link DGS-1250-52X/E 4×SFP+/48×GE retail?
The article Switch 440 mm D-Link DGS-1250-52X/E 4×SFP+/48×GE retail is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of D-Link DGS-1250-52X/E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Switch 440 mm D-Link DGS-1250-52X/E 4×SFP+/48×GE retail always at the best possible price. We can give you a discount of 2% on Switch 440 mm D-Link DGS-1250-52X/E 4×SFP+/48×GE retail if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Switch 440 mm D-Link DGS-1250-52X/E 4×SFP+/48×GE retail we can offer you a price of 654,12 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
