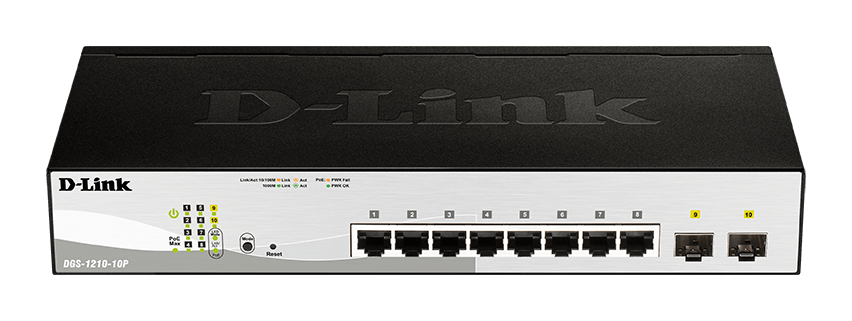

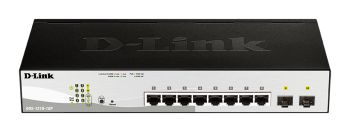

D-Link DGS-1210-10P/E Switch 8xGBit/2xSFP 48,3 cm ( 19 inch ) Managed PoE (65W) content_copy

The D-Link DGS-1210-10P/E is a Smart Managed Switch of the DGS-1210 series, designed for use in small and medium-sized enterprises. As a Layer 2 Switch, it offers a comprehensive range of management and networking functions that enable flexible and secure network deployment. The switch features eight Gigabit Ethernet (10/100/1000) RJ-45 ports, all equipped with Power over Ethernet (PoE), with the PoE ports supporting the IEEE 802.3at (PoE+) standard. The PoE function enables power supply to end devices such as IP cameras, VoIP phones, or wireless access points via the network cable, eliminating the need for separate power connections. The PoE control is programmable, allowing for time-controlled power shutdown, thereby reducing energy consumption.

Applications

The switch is suitable for use in office and industrial environments, particularly in scenarios requiring decentralized power supply for network devices. The fanless design ensures a noise level of 0 dB, making it suitable for open office environments. The operating temperature ranges from -5 °C to 50 °C, enabling use in indoor environments under normal conditions. The storage temperature ranges from -20 °C to 70 °C, allowing flexible storage even in outdoor areas or environments with higher temperatures.

Functions and Features in Detail

The DGS-1210-10P/E features two SFP slots, which can be used for fiber optic cable connections. These enable connections over longer distances, e.g., between buildings or in factories, and offer high bandwidth as well as immunity to electromagnetic interference. The combination of eight PoE ports and two SFP ports makes the switch highly versatile, for example for integrating surveillance cameras or establishing redundant network connections. Port Mirroring allows monitoring of network traffic on a specific port, which is useful for network analysis and security monitoring.

Technology Explained Simply

The switch operates in Store-and-Forward mode, where data packets are fully received, checked, and then forwarded. This ensures high data integrity. The routing/switching capacity is 20 Gbit/s, enabling high throughput for internal network traffic. The MAC address table contains 8000 entries, sufficient to manage a large number of devices in the network. The transfer rate is 14.88 Mpps (millions of packets per second), describing the switch’s ability to process network traffic under realistic conditions. Support for Auto MDI/MDI-X enables automatic detection of cabling, allowing connection between switch and device without additional uplink cables or crossover cables.

Compatibility and Accessories

To extend functionality, SFP modules such as the D-Link DEM-310GT (1000Base-LX, Single-Mode) or DEM-311GT (1000Base-SX, Multi-Mode) can be used. These modules enable fiber optic connections and are suitable for environments requiring high reach and bandwidth.

Management and Security

The switch offers a web-based user interface as well as a CLI (Command Line Interface) via Telnet, enabling flexible configuration. Support for SNMP (Simple Network Management Protocol) allows integration into existing network management systems. The Access Control List (ACL) and MAC address filtering enable fine-grained control over network access. The D-Link Safeguard Engine protects the switch from overloads caused by broadcast, multicast, or unicast traffic, enhancing network security. The Surveillance Mode function automatically detects compatible ONVIF cameras and segments them into a dedicated VLAN, enabling secure and efficient management of video surveillance traffic. The cable diagnostics feature aids in troubleshooting copper lines by analyzing the cabling status.

Operational Advantages

The fanless design ensures disturbance-free operation without noise, which is particularly beneficial in office environments. The D-Link Green Technology reduces power consumption and thus lowers operating costs without compromising performance. Link Aggregation (LACP) enables combining multiple physical connections into a single logical connection, increasing bandwidth and providing redundancy. Quality of Service (QoS) and bandwidth control in steps of 64 kbps allow prioritization of critical data streams, such as VoIP traffic, which is automatically moved to a VLAN with highest priority via Auto Voice VLAN. Port Mirroring and Loopback Detection support network administration in troubleshooting and maintenance.

Design and Mounting

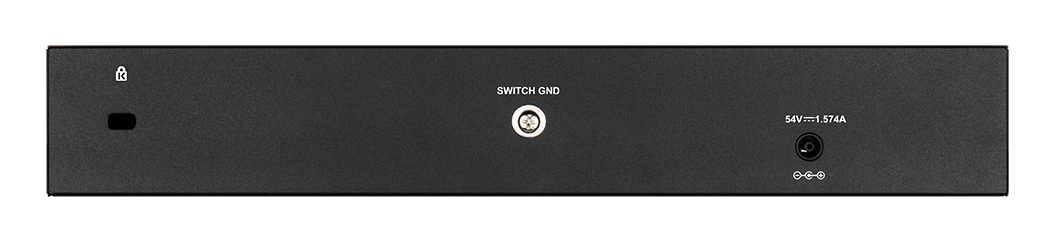

The switch has a 1U form factor and is designed for rack mounting. Dimensions are 280 mm (width) × 126 mm (depth) × 44 mm (height). The housing is made of metal and is fanless. LED indicators enable visual monitoring of operational status. The device comes with a 19-inch rackmount kit, simplifying installation in standard racks. Power supply is via a DC connector, with the power supply unit integrated.

Certifications

The switch complies with certifications EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC, confirming electromagnetic compatibility and safety for use in commercial environments.

Operating Conditions

The switch can be operated at a relative humidity of 0 to 95 % (non-condensing). The heat dissipation is 373.96 BTU/h, describing the thermal load of the device. The mean time between failures (MTBF) is 729,258 hours, indicating high reliability.

Network Standards

The switch supports network standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Copper Ethernet cabling technology includes 10BASE-T, 100BASE-T, 1000BASE-T, with supported cable types Cat5 and Cat5e. Support for Full-duplex and flow control (IEEE 802.3x) ensures efficient and reliable data transmission.

Security and Management

Additional security features include ARP Spoofing Prevention and Smart Binding, enhancing network security. Dual software images and dual configuration files enable secure firmware and configuration updates without interrupting network operation. The Static Route function allows manual definition of routes, making network control more flexible.

Certificates
Certification	EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
Data transmission
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
MAC address table	8000 entries
Packet buffer memory	0.512 MB
Store-and-forward
Design
Form factor	1U
Product colour	Black
Rack mounting
Stackable
LED indicators
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support
Web-based management
Multicast features
Multicast support
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported	Cat5, Cat5e
10G support
Port mirroring
Full duplex
Flow control support
Link aggregation
Auto MDI/MDI-X
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	373.96 BTU/h
Packaging data
Package width	288 mm
Package depth	331 mm
Package height	72 mm
Package weight	2.21 kg
Performance
Noise level	0 dB
Mean time between failures (MTBF)	729258 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
SFP module slots quantity	2
Power connector	DC-in jack
Power
Power consumption (max)	80.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	2
Total Power over Ethernet (PoE) budget	78 W
Power over Ethernet (PoE)
Security
Access Control List (ACL)
MAC address filtering
Weight & dimensions
Width	280 mm
Depth	126 mm
Height	44 mm
Weight	950 g

---
